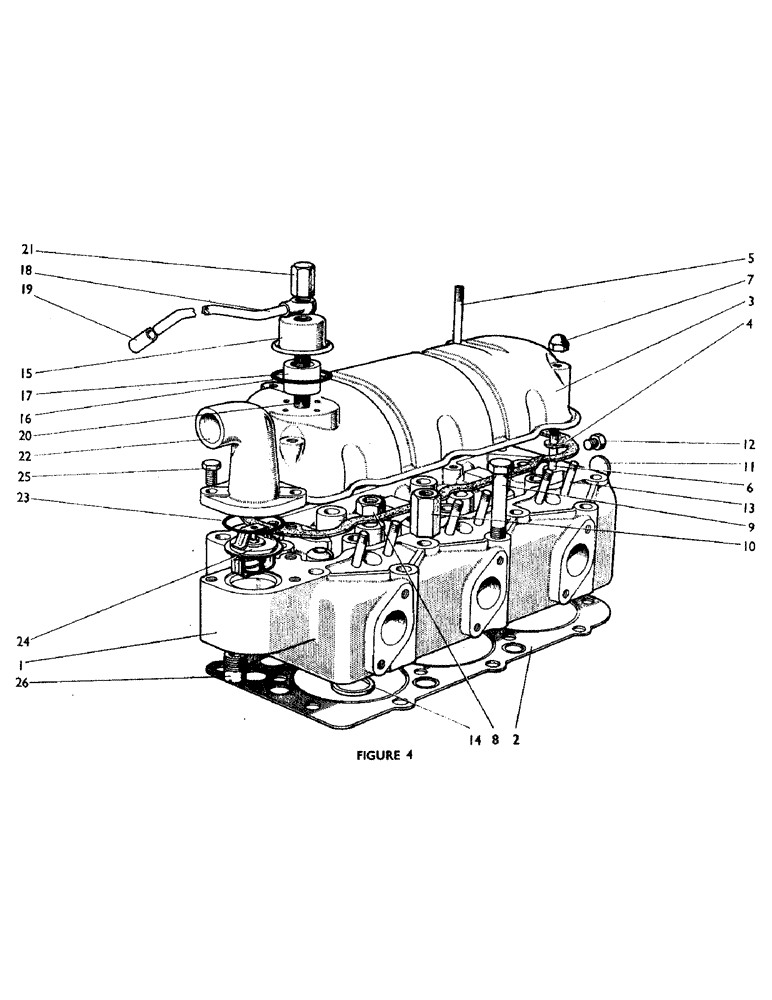

Запчасти Case IH 880UF (10) - CYLINDER HEAD (01) - ENGINE

1

K961731

NO LONGER SERVICED

CYLINDER HEAD (with valve inserts and plugs)

1шт.

2

K910671

GASKET

-, Serial Range: head-block

1шт.

3

K907323

NO LONGER SERVICED

COVER - cylinder head

1шт.

4

K907338

GASKET,3.97mm Thk

-, Serial Range: cover-head

1шт.

5

K608118

STUD

5/16 UNC x 3 7/16 in. (cover)

2шт.

6

K608119

STUD

5/16 UNC x 2 13/16 in. (cover)

2шт.

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

COPPER ASBESTOS WASHER (cover)

4шт.

7

234-10431

CROWN NUT,Crown, 5/16"-18

Cover Crown, 5/16"-18

4шт.

8

K617594

NUT

special, 1/2 UNF (cylinder head)

4шт.

9

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

special, 1/2 UNC x 4 1/4 in. (cylinder head)

9шт.

10

K906898

NUT

- lifting (cylinder head)

2шт.

K900431

PLUG

TAPER PLUG

3шт.

11

41-16

PLUG,Exp, 1"

WELCH PLUG, 1 in.

1шт.

12

K19591

PLUG

FLANGED PLUG, 1/8 BSP

1шт.

K16732

WASHER

COPPER WASHER, 1/8 BSP

1шт.

K608203

STUD

- exhaust manifold

6шт.

13

K608107

STUD

- injector

6шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

K905202

INSERT

- inlet seat

3шт.

14

K62034

INSERT

- exhaust seat

3шт.

15

K907108

NO LONGER SERVICED

COVER (engine breather)

1шт.

16

K626901

O-RING,40554" ID x 40575" OD x 0.12"

(engine breather)

1шт.

17

K907110

BREATHER

ELEMENT (engine breather)

1шт.

18

K917044

BREATHER

PIPE (engine breather)

1шт.

19

K912704

PIPE CLAMP

PIPE CONNECTION (engine breather)

1шт.

20

K909671

CONNECTION (engine breather)

1шт.

K909672

DISTRIBUTOR

DISTANCE PIECE (engine breather)

1шт.

K966735

WASHER

COPPER WASHER (engine breather)

20шт.

21

K617371

NUT

DOMED NUT, 1/2 UNF (engine breather)

1шт.

22

K912198

PIPE - water outlet

1шт.

23

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

O' RING

1шт.

24

K200831

THERMOSTAT

1шт.

K910411

GASKET

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW, 5/16 UNC x 1 in.

2шт.

26

K904195

FITTING

CONNECTION - by-pass

1шт.

K902765

PIPE

OIL PIPE - cylinder, Serial Range: block-head

1шт.

K619525

PLUG

5/8 UNF

1шт.

K626444

WASHER

COPPER WASHER

1шт.
