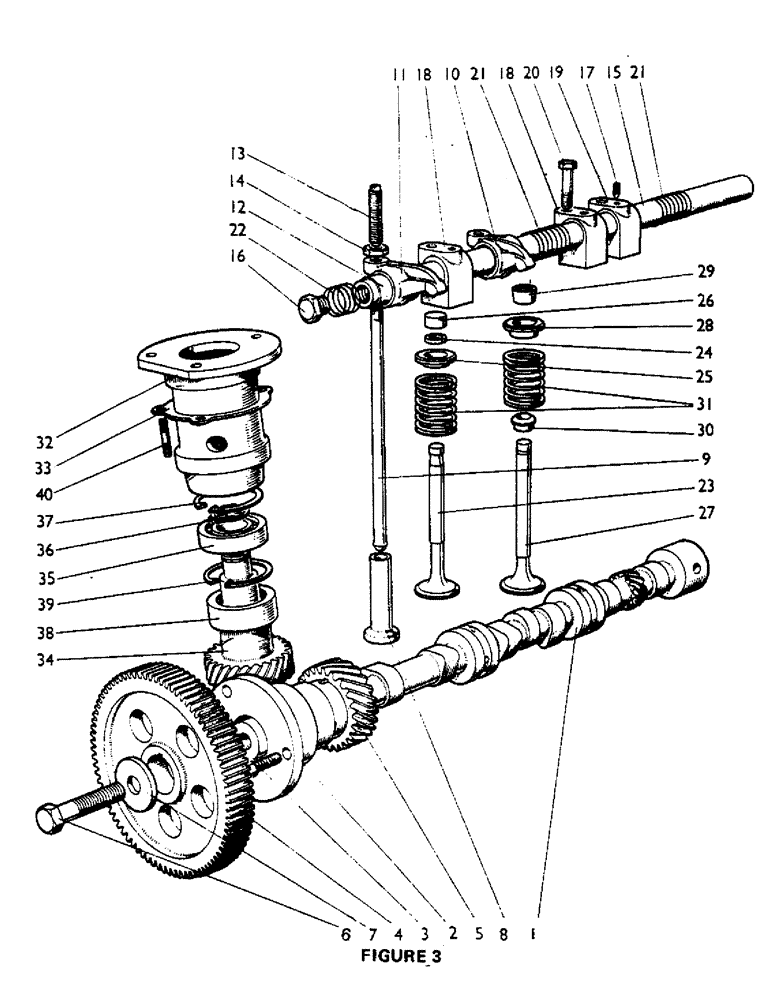

Запчасти Case IH 880UF (08) - CAMSHAFT, VALVE MECHANISM AND INJECTION PUMP DRIVE (01) - ENGINE

1

K912765

CAMSHAFT

1шт.

2

K907336

HOUSING

LOCATING HOUSING

1шт.

3

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SETSCREW, 5/16 UNC x 7/8 in.

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

K907335

PINION

GEAR - camshaft

1шт.

5

K909920

DRIVE

GEAR - injection pump drive

1шт.

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(No. 506) #8, 5/32" x 3/4"

2шт.

6

K907572

BOLT

1/2 UNC x 2 1/4 in. - gear retaining

1шт.

7

K907571

WASHER

1/2 in.

1шт.

8

K901137

TAPPET

6шт.

9

K902035

ROD

PUSH ROD

6шт.

10

K63089

ROCKER

VALVE ROCKER, right-hand (with bush), Nos. 2, 4, 6 - from front

3шт.

11

K63090

ROCKER

VALVE ROCKER, left-hand (with bush), Nos. 1, 3, 5 - from front

3шт.

12

K11060

BUSHING

BUSH - valve rocker

6шт.

13

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting

6шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

6шт.

15

K907920

TUBE

SHAFT - rocker

1шт.

16

K19590

PLUG

3/8 BSP

2шт.

17

K966469

SCREW

LOCATING SCREW

10шт.

18

K913753

BRACKET

- rocker shaft (Nos. 1 and 2)

2шт.

19

K921432

BRACKET

- rocker shaft (rear)

1шт.

20

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 UNC x 2 1/2 in.

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

21

K11017

SPRING

LOCATING SPRING - intermediate

2шт.

22

K907919

WASHER

LOCATING SPRING - ends

2шт.

23

K900417

VALVE

- exhaust

3шт.

24

K943443

PIN, SPLIT (COTTER)

COTTERS - exhaust valve (pairs)

6шт.

25

K900419

COLLAR

- exhaust valve

3шт.

26

K68414

CAP

- exhaust valve

3шт.

27

K914528

VALVE

- inlet

3шт.

28

K903995

COLLAR

- inlet valve

3шт.

29

K943439

LOCKING DEVICE

COTTER - inlet valve (pairs)

6шт.

30

K262860

SEAL

- inlet valve

3шт.

31

K914529

SPRING

- valve

6шт.

32

K910608

HOUSING

BEARING HOUSING

1шт.

33

K907922

GASKET

- housing to cylinder block

1шт.

34

K912483

GEAR

DRIVEN GEAR

1шт.

35

K24489

BALL BEARING

1шт.

36

K11128

CIRCLIP

1 in. ext.

1шт.

37

K13170

RING, SNAP

CIRCLIP, 52 mm. int.

1шт.

38

K620072

BEARING

NEEDLE ROLLER BEARING

1шт.

39

K621680

SNAP RING,2.062", Int, #206

BEVELLED CIRCLIP, 2 1/16 in. int.

1шт.

40

K608121

STUD

5/16 UNC x 1 7/8 in.

3шт.
