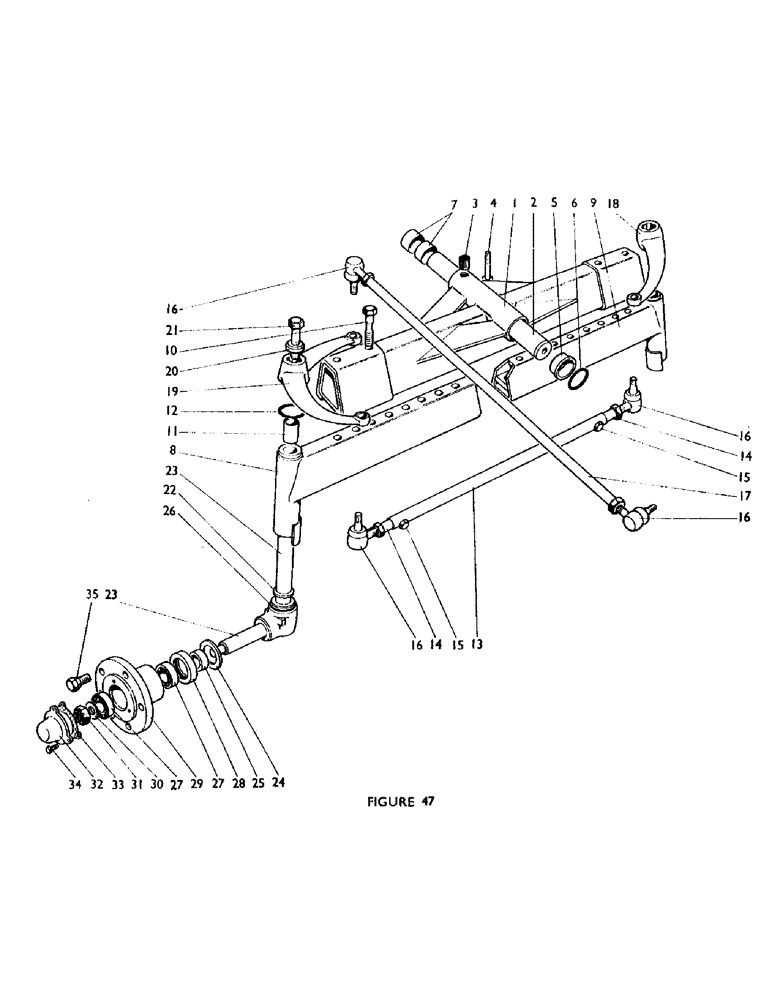

Запчасти Case IH 880UF (70) - FRONT AXLE Steering & Front Axle

1

K908605

NO LONGER SERVICED

CENTRE BEAM

1шт.

2

K908611

PIN

TRUNNION PIN

1шт.

3

K913092

NUT

SCREWED BUSH

1шт.

4

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 UNC x 2 1/2 in.

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

5

K908612

BUSHING

THRUST SLEEVE

2шт.

6

610414C1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEALING RING

2шт.

7

K621355

BUSHING

BUSH

4шт.

8

K961230

BEAM

EXTENSION, left-hand (with bushes)

1шт.

9

K961231

BEAM

EXTENSION, right-hand (with bushes)

1шт.

10

K601308

BOLT

special, 3/8 UNC x 3 1/8 in.

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

11

K11598

BUSHING

BUSH

4шт.

12

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

13

K912708

BUSHING

SPACER TUBE

1шт.

14

K912709

ROD

TRACK ROD

2шт.

15

K600316

BOLT

5/16 UNC x 2 1/4 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

K908071

BALL JOINT

BALL SOCKET ASSEMBLY

2шт.

K961701

BOOT

DUST EXCLUDER (rubber) 908071

4шт.

K622500

LOCK NUT

LOCKNUT, special 908071

4шт.

231-2448

LOCK NUT,1/2"-20, GB

SLOTTED NUT, 1/2 UNF 908071

4шт.

K19530

PIN

SPLIT PIN, 3/32 x 1 in.

4шт.

K912076

LINK

DRAG LINK ASSEMBLY (manual steering)

1шт.

17

K909033

DRAG LINK

TUBE 912076

1шт.

16

K908071

BALL JOINT

BALL SOCKET ASSEMBLY 912076

2шт.

K913594

LINK

DRAG LINK ASSEMBLY (power steering)

1шт.

K910795

LINK

DRAG LINK TUBE 913594

1шт.

K908071

BALL JOINT

BALL SOCKET ASSEMBLY 913594

1шт.

K913593

LARGE PIN

EYE END 913594

1шт.

K622520

NUT

LOCKNUT, 3/4 Whit. 913594

1шт.

18

K912085

LEVER

STEERING LEVER, right-hand

1шт.

19

K912084

LEVER

STEERING LEVER, left-hand (manual steering)

1шт.

K913924

LEVER

STEERING LEVER, left-hand (power steering)

1шт.

20

K15595

WASHER

special

2шт.

21

K601210

BOLT (SPREADER)

BOLT, 5/8 UNC x 2 3/4 in.

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

THRUST WASHER

2шт.

23

K961725

SHAFT

STUB AXLE ASSEMBLY

2шт.

24

K906568

RING

DIRT EXCLUDER 961725

2шт.

25

K906569

SLEEVE

- oil seal 961725

2шт.

26

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

27

K620046

BEARING

TAPER ROLLER BEARING

4шт.

28

K15638

NO LONGER SERVICED

OIL SEAL

2шт.

29

K910176

HUB

FRONT HUB

2шт.

30

K626321

WASHER

special

2шт.

31

K617157

NUT

SLOTTED NUT, 3/4 UNF

2шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

SPLIT PIN, 11/64 x 1 1/8 in.

2шт.

32

K908913

CAP

HUB CAP

2шт.

33

K15344

GASKET,0.25mm Thk

2шт.

34

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SETSCREW, 5/16 UNC x 5/8 in.

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Front hub 1/4"-28 NPT x .54" lg

2шт.

35

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT, 1/2 UNC x 1 in.

12шт.

K627939

PLUG

PLASTIC PLUG - beam extension holes

6шт.
