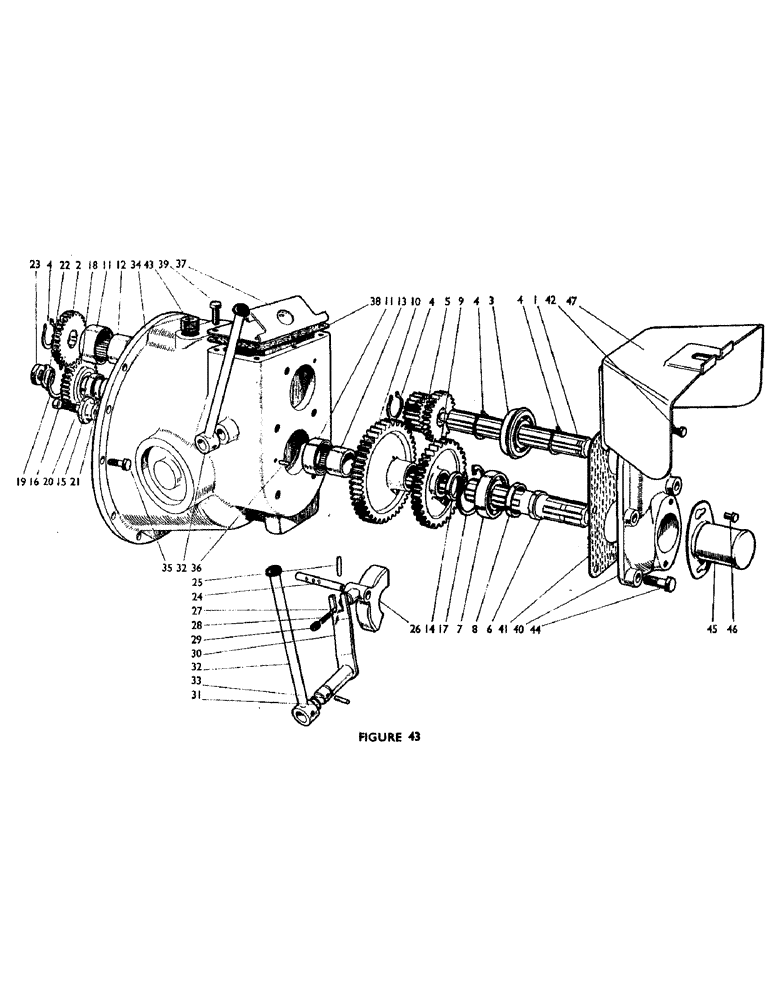

Запчасти Case IH 880UF (64) - POWER TAKE-OFF UNIT Auxiliary Drive Units

K961036

PTO UNIT (complete) 880/UE

1шт.

K961035

PTO UNIT (complete) 880/UF

1шт.

1

K906735

DRIVE SHAFT

DRIVESHAFT 880/UE

1шт.

1

K906734

DRIVE SHAFT

DRIVESHAFT 880/UF

1шт.

2

K906731

GEAR

PUMP DRIVE GEAR

1шт.

3

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

with snap ring

1шт.

4

103-11112

SNAP RING,#112, Ext

CIRCLIP, 1 3/64 in. dia.

4шт.

5

K906688

GEAR

SPEED CHANGE PINION

1шт.

6

K906691

SHAFT

DRIVEN SHAFT

1шт.

7

K19021

BALL

BEARING

1шт.

8

K11119

OIL SEAL

OIL SEAL

1шт.

9

K906689

GEAR

- high speed

1шт.

10

K906692

GEAR

- low speed

1шт.

11

359950R91

NEEDLE BEARING

NEEDLE ROLLER BEARING

2шт.

12

K906693

RING RACE

INNER RACE - driveshaft

1шт.

13

K906694

BEARING

INNER RACE - driven shaft

1шт.

14

K904431

BUSHING

DISTANCE PIECE

1шт.

15

K909349

PIN

AND RETAINING WASHER

1шт.

16

K606894

SCREW

cap hd., 7/16 UNC x 1 in.

1шт.

17

933076R1

SNAP RING,M72, Int

CIRCLIP, 72 mm. int.

1шт.

18

K906696

GEAR

IDLER GEAR

1шт.

19

K13170

RING, SNAP

CIRCLIP, 52 mm. int.

2шт.

20

K24489

BALL BEARING

1шт.

21

K906697

PIN

BEARING PIN

1шт.

22

K906698

WASHER

TAB WASHER

1шт.

23

425-1512

JAM NUT,Jam, 3/4"-10, G5

special, 3/4 UNF

1шт.

24

K942469

SELECTOR

ROD

1шт.

25

K906700

PIN

RETAINING PIN

1шт.

26

K906701

SELECTOR

FORK

1шт.

27

211-1008

BALL,1/4" Dia

STEEL BALL, 1/4 in.

1шт.

28

K24831

SPRING

1шт.

29

81-3315

SET SCREW,5/16"-18 x 5/16", Slotted

GRUBSCREW, 5/16 UNC

1шт.

30

K906702

SELECTOR

LEVER

1шт.

31

K625405

O-RING,0.549" ID x 0.103" Width

O' RING

1шт.

32

K943716

LEVER

OPERATING LEVER

1шт.

33

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

MILLS PIN, 1/4 x 1 1/2 in.

1шт.

34

K962122

HOUSING

CASE

1шт.

K262831

GASKET

2шт.

K24827

PIN

HEADED DOWEL, 7/16 x 1 3/4 in. (case and support plate to rear axle)

1шт.

K605157

SCREW

7/16 UNC x 1 1/8 in. (case and support plate to rear axle)

1шт.

35

K600605

BOLT

7/16 UNC x 1 7/8 in. (case and support plate to rear axle)

11шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in. (case and support plate to rear axle)

11шт.

36

K25360

PIN

DOWEL, 1/4 in.

2шт.

37

K906683

TOP COVER

1шт.

38

K966991

GASKET

- top cover

10шт.

39

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SETSCREW, 5/16 UNC x 5/8 in.

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

K923367

DECAL

TRANSFER - gear positions

1шт.

40

K906686

COVER

END COVER

1шт.

41

K924217

GASKET

1шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW, 5/16 UNC x 1 in.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

K14518

PLUG

TAPER PLUG, 3/4 BSP

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

44

113-358

BOLT,Hex, 7/16" - 14 x 1-5/8", Gr 5

7/16 UNC x 1 5/8 in.

4шт.

K626589

SELOC WASHER, 7/16 in.

4шт.

45

K262824

COVER

- PTO shaft

1шт.

K626682

WASHER

5/16 in.

2шт.

46

K602840

SCREW

SETSCREW, 5/16 UNC

2шт.

47

K906893

GUARD

PTO GUARD U378 (906988)

1шт.
