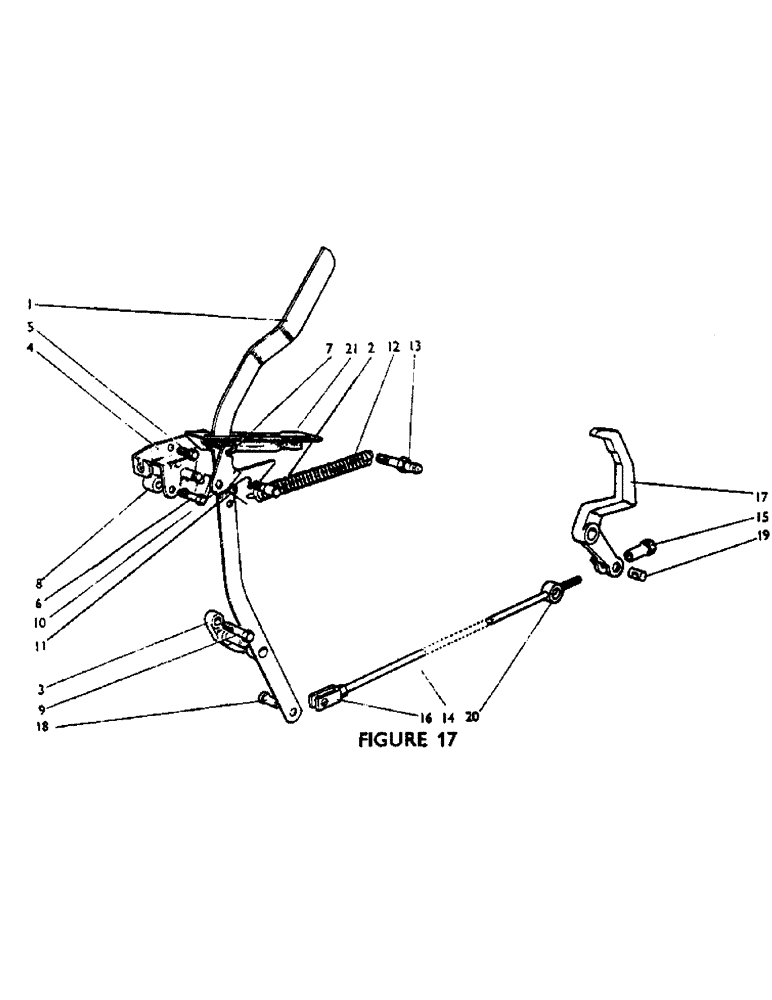

Запчасти Case IH 880UE (27) - CLUTCH, RESETTING LEVER, PART OF U585 (880/UE), U586 (880/UF) (03.1) - CLUTCH

K911143

CLUTCH - RESETTING LEVER - Part of U585 (880/UE)

1шт.

K911144

CLUTCH - RESETTING LEVER - Part of U586 (880/UF)

1шт.

1

K912848

LEVER

RESETTING LEVER

1шт.

2

K913299

PIN

LOCKING PIN

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

K914090

BRACKET

- resetting lever

1шт.

K19476

WASHER

3/4 in.

1шт.

K19532

PIN

SPLIT PIN, 1/8 x 1 in.

1шт.

4

K912849

BRACKET

SUPPORT BRACKET - resetting lever

1шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SETSCREW, 5/16 UNC x 5/8 in.

1шт.

5

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SETSCREW, 5/16 UNC x 7/8 in.

1шт.

6

K600365

BOLT

5/16 UNC x 1 1/2 in.

1шт.

7

K600358

BOLT

5/16 UNC x 1 3/8 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

K912852

BUSHING

DISTANCE PIECE

1шт.

9

K600806

BOLT

1/2 UNC x 2 in.

2шт.

10

K912853

LATCH

TRIGGER

1шт.

K19472

WASHER

3/8 in.

1шт.

934901R1

E-RING,M10

E' CLIP, 3/8 in. ext.

1шт.

11

K31411

SPRING

TORSION SPRING - trigger

1шт.

12

K41370

SPRING

RELEASE SPRING - clutch

1шт.

13

K912854

SPRING

ANCHOR

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

1шт.

14

K909901

ROD

CLUTCH ROD - resetting lever to clutch lever

1шт.

K19403

NUT

3/8 BSF

2шт.

15

K14745

NUT

ADJUSTING NUT

1шт.

16

K14233

FORK END - resetting lever

1шт.

17

K89363

LEVER

CLUTCH LEVER 880/UE

1шт.

K900716

LEVER

CLUTCH LEVER 880/UF

1шт.

18

K14227

PIN

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

19

K14744

PIN

1шт.

20

K14715

BUSHING

DISTANCE PIECE

1шт.

21

K913860

GUIDE BRACKET

1шт.
