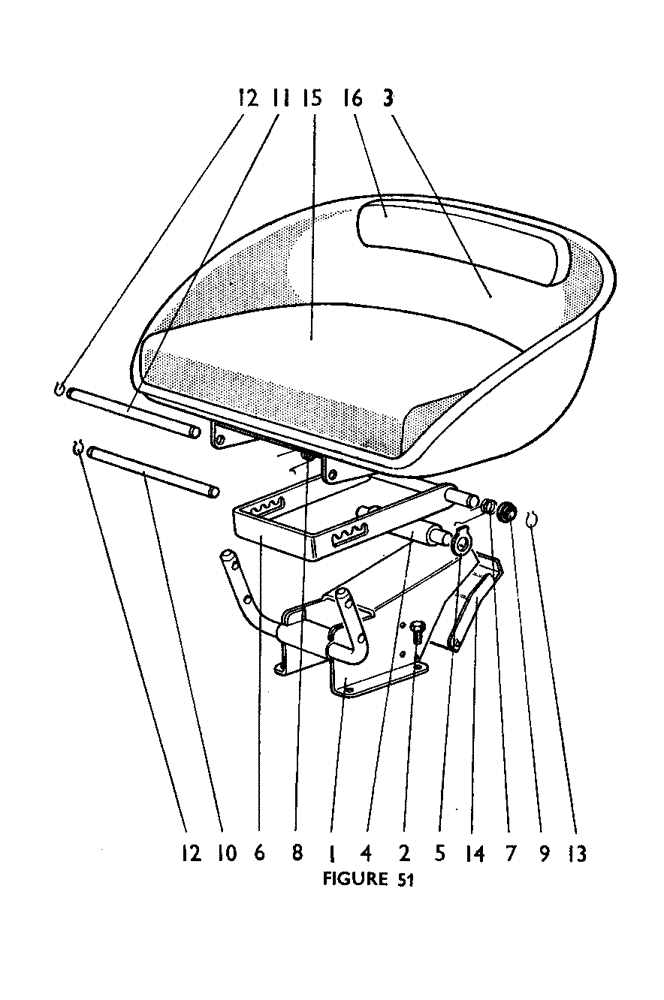

Запчасти Case IH 880UE (78) - SEAT AND SUPPORT (12) - CHASSIS

1

K912124

SEAT

SUPPORT BRACKET

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

SETSCREW, 3/8 UNC x 3/4 in. (Support bracket to axle)

4шт.

492-11038

LOCK WASHER,3/8"

(support bracket to axle) 3/8"

4шт.

3

K912128

SEAT

PAN SEAT

1шт.

4

K912782

ROLLER

1шт.

5

K912783

WASHER

TAB WASHER

2шт.

6

K912133

LEVER

ADJUSTING LEVER

1шт.

7

K912136

SPRING

TORSION SPRING, left-hand

1шт.

8

K912137

SPRING

TORSION SPRING, right-hand

1шт.

9

K912138

BUSHING

BUSH - adjusting lever

1шт.

10

K912139

PIN

LOCATING PIN

1шт.

11

K912139

PIN

PIVOT PIN

1шт.

12

K621562

RING, SNAP

CIRCLIP, 3/8 in. ext.

4шт.

13

K11302

RING, SNAP

CIRCLIP, 1/2 in. ext.

2шт.

14

K914232

COVER

- seat support

1шт.

K627817

NUT

CAPTIVE NUT

1шт.

K624794

SCREW

1шт.

15

K947555

CUSHION

AND COVER ASSEMBLY, Includes: Ref. 15A - 15B

1шт.

15a

K901468

NO LONGER SERVICED

CUSHION

1шт.

15b

K947417

CUSHION

COVER

1шт.

16

K947556

BACKREST

BACK REST ASSEMBLY, Includes: Ref. 17 - 22

1шт.

17

K902094

PLATE

1шт.

18

K690622

BOLT

COACH BOLT, 3/8 UNC x 1 in.

2шт.

19

425-106

NUT,3/8"-16, Cl 5

WING NUT, 3/8 UNC

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

K902095

PAD

1шт.

22

K947415

COVER

1шт.
