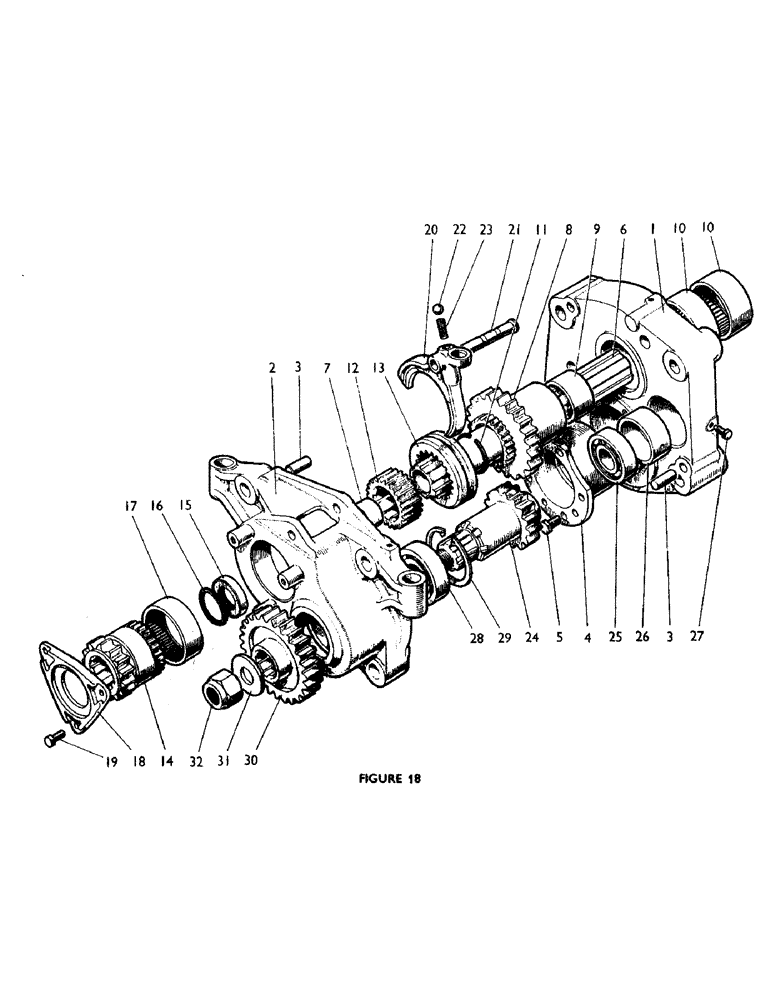

Запчасти Case IH 880UE (28) - TWELVE SPEED TRANSMISSION, OPTIONAL EQUIPMENT, 880/UE, LIVEDRIVE Gearbox
№
Артикул
Название
Примечание
Количество
1
K908303
SPARE PART
END PLATE - front
1шт.
2
K908322
NO LONGER SERVICED
HOUSING - end plate
1шт.
3
K11985
PIN
DOWEL, 1/2 x 1 7/16 in.
2шт.
4
K908380
BEARING
HOUSING
1шт.
K908381
SHIM,.030" Thk
1шт.
K908382
SHIM,.015" Thk
1шт.
K908383
SHIM,.005" Thk
1шт.
K908384
SHIM,.003" Thk
1шт.
5
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
SETSCREW, 3/8 UNC x 1 in.
6шт.
492-11038
LOCK WASHER,3/8"
6шт.
6
K908370
DRIVE SHAFT
- gearbox
1шт.
7
K24774
BUSHING
BEARING BUSH
1шт.
K908372
SHIM,.003" Thk
1шт.
K908373
SHIM,.005" Thk
1шт.
K908374
SHIM,.020" Thk
1шт.
8
K908531
GEAR
DRIVEN GEAR - gearbox drive shaft
1шт.
K908946
WASHER
BRONZE THRUST WASHER - rear
1шт.
9
K620053
BEARING
NEEDLE ROLLER BEARING
1шт.
10
K620052
BEARING
NEEDLE ROLLER BEARING
2шт.
11
K13809
RING, SNAP
CIRCLIP, 45 mm. ext.
1шт.
12
K908944
CLUTCH
FIXED DOG CLUTCH
1шт.
13
K908367
CLUTCH
SLIDING DOG CLUTCH
1шт.
14
K908532
GEAR
DRIVING GEAR - clutch shaft
1шт.
K908947
WASHER
BRONZE THRUST WASHER - front
1шт.
15
K623490
SEAL
OIL SEAL
1шт.
16
K623555
O-RING,1.396" OD x 0.255" Width
O' RING, special
1шт.
17
K620052
BEARING
NEEDLE ROLLER BEARING
1шт.
18
K908343
PLATE
END PLATE
1шт.
19
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
SETSCREW, 5/16 UNC x 7/8 in.
3шт.
20
K908338
SELECTOR
FORK
1шт.
21
K908385
SELECTOR
ROD
1шт.
22
211-1012
BALL,3/8" Dia
SELECTOR BALL
1шт.
23
K13507
SPRING
1шт.
24
K908530
LAYSHAFT
1шт.
25
K19158
ROLLER
BEARING
1шт.
26
K908378
SHIM
Distance Piece
1шт.
27
K908379
NO LONGER SERVICED
LOCATING SCREW
1шт.
28
K19021
BALL
BEARING
1шт.
29
933076R1
SNAP RING,M72, Int
CIRCLIP, 72 mm. int.
1шт.
30
K915464
GEAR
LAYSHAFT GEAR
1шт.
31
K15599
WASHER
SPECIAL WASHER
1шт.
32
K24875
NUT
NYLOC NUT, 7/8 BSF
1шт.
Выбрано товаров: 44
