Запчасти Case IH 880UE (62) - INSTRUMENTS AND PANEL Engine Controls & Instruments

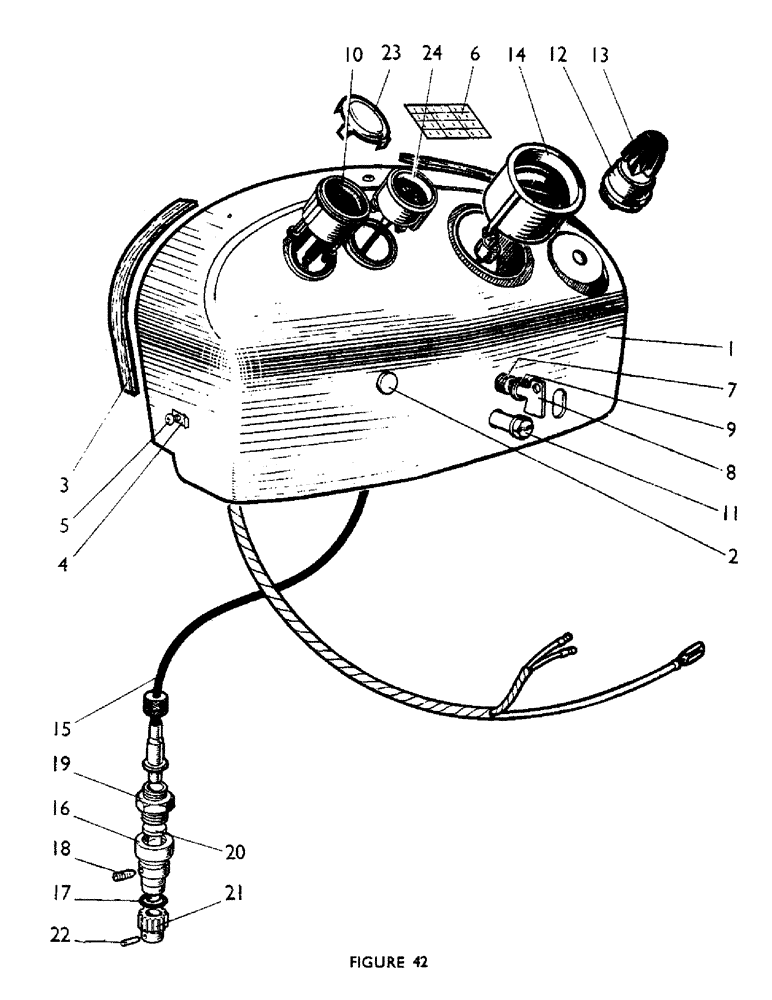

Схема запчастей Case IH 880UE - (62) - INSTRUMENTS AND PANEL Engine Controls & Instruments
13
10
20
4
1
5
24
15
11
23
18
7
8
6
17
9
14
19
21
22
2
16
3
12

Артикул

Название

Примечание

Количество

1

K913198

INSTRUMENT PANEL

1шт.

2

K627711

PLUG

button

1шт.

3

K967043

SEAT

ING STRIP

3шт.

4

K966677

NUT

RETAINER AND NUT, 2 BA

40шт.

5

K966682

SCREW

2 BA x 1/2 in.

40шт.

K11519

WASHER

SHAKEPROOF WASHER, 3/16 in.

4шт.

6

K917765

DECAL

GEAR SHIFT CHART 12-speed

1шт.

K24775

SCREW - chart to instrument panel

2шт.

7

3107556R93

IGNITION SWITCH

ISOLATING AND STARTER SWITCH (AC-Delco 1533514)

1шт.

8

K912417

KEY

2шт.

9

K912408

NUT

- switch retaining

1шт.

10

K908351

INDICATOR LIGHT

WARNING LIGHT (dynamo charge and oil pressure)

1шт.

K962764

BULB

12 volt, 2.4 watt MES

2шт.

11

K907475

FUSE

HOLDER, Includes: Ref. 11A - 11C

1шт.

11a

K960980

HOLDER

CAP - fuse holder

1шт.

11b

K960981

SEAL

RUBBER SEAL - cap

1шт.

11c

K904459

FUSE

25 amp.

1шт.

12

K902464

SWITCH

LIGHTING SWITCH (Lucas 319010)

1шт.

13

K262015

KNOB

1шт.

K625400

O-RING,0.07" Thk x 0.239" ID

O' RING

1шт.

14

K907090

NO LONGER SERVICED

TRACTORMETER (MPH), 11/49 reductions

1шт.

K912287

NO LONGER SERVICED

TRACTORMETER (MPH), 9/50 reductions

1шт.

15

K908883

CABLE

inner and outer (32 in.) - tractormeter drive

1шт.

K961825

CABLE

inner (33 1/8 in.) - AC-Delco

1шт.

K961826

SPARE PART

CABLE, inner (31 5/16 in.)

1шт.

K960955

BOOT

EXTENSION - K961826 cable (Smith's)

1шт.

K960956

SPARE PART

RETAINING CLIP - extension

1шт.

16

K908181

HOUSING

1шт.

17

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O' RING

1шт.

18

K928265

SCREW,5/16" - 18 x 1-1/16"

LOCATING SCREW, 5/16 UNC

1шт.

K966480

NUT

LOCKNUT, 5/16 UNC

10шт.

19

K620008

ADAPTER

ADAPTOR

1шт.

K626957

WASHER

FIBRE WASHER

1шт.

20

K908182

DRIVE

SHAFT

1шт.

21

K908183

DRIVE

GEAR - drive shaft

1шт.

22

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, , MILLS PIN 1/8" x 5/8", Slotted

1шт.

23

K903487

BLANKING PLATE - temperature gauge aperture

1шт.

24

K910618

ELECTRICAL GAUGE

TEMPERATURE GAUGE U581 (91135)

1шт.

K908524

NO LONGER SERVICED

TRANSFER - 'to stop, lift knob and release'

1шт.

Выбрано товаров: 39
