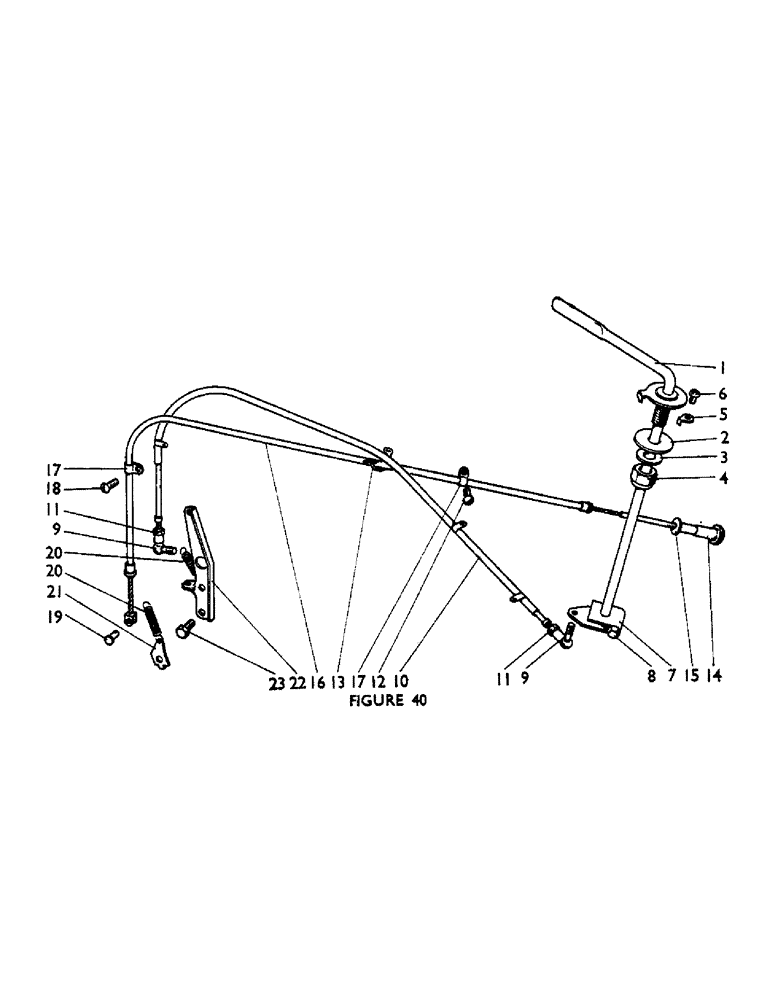

Запчасти Case IH 880UE (59) - HAND THROTTLE AND STOP CONTROL Engine Controls & Instruments

1

K913191

LEVER

HAND LEVER

1шт.

2

K85546

DISC

FRICTION DISC

1шт.

3

K626740

WASHER

BELLEVILLE WASHER

1шт.

K19475

WASHER

5/8 in.

1шт.

4

K623003

NUT

NYLOC NUT, 5/8 BSF

1шт.

5

K910157

WASHER

STOP PAD

2шт.

6

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 1/2 in.

2шт.

K607000

NUT

1/4 UNC

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

7

K89255

LEVER

1шт.

8

K600005

BOLT

1/4 UNC x 1 3/8 in.

1шт.

K607000

NUT

1/4 UNC

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

1шт.

9

K621900

UNIVERSAL JOINT

BALL JOINT

2шт.

K607000

NUT

1/4 UNC

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

10

K923227

CABLE

- inner and outer (throttle control)

1шт.

11

225-14210

NUT,#10-32

2шт.

12

K12189

SCREW

2 BA x 1/2 in.

1шт.

K966014

NUT

2 BA

10шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (3/16") #10

10шт.

13

702093C1

CABLE TIE

BUCKLE CLIP

3шт.

14

K916844

KNOB

- engine stop

1шт.

15

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

special, 3/16 in.

1шт.

225-14210

NUT,#10-32

1шт.

16

K913178

CABLE

- inner and outer (stop control)

1шт.

17

K621644

CLIP

CABLE CLIP

2шт.

18

K12189

SCREW

2 BA x 1/2 in.

1шт.

K966014

NUT

2 BA

10шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (3/16") #10

10шт.

19

K913180

PIN

- pump lever

1шт.

20

K624938

SPRING

RETURN SPRING

2шт.

21

K913184

ANCHOR

1шт.

K626682

WASHER

5/16 in.

1шт.

22

K947353

BRACKET

1шт.

23

K612700

SET SCREW,1/4" - 28 x 3/8"

SETSCREW, 1/4 UNF x 3/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

K617500

NUT

- spring anchor

1шт.
