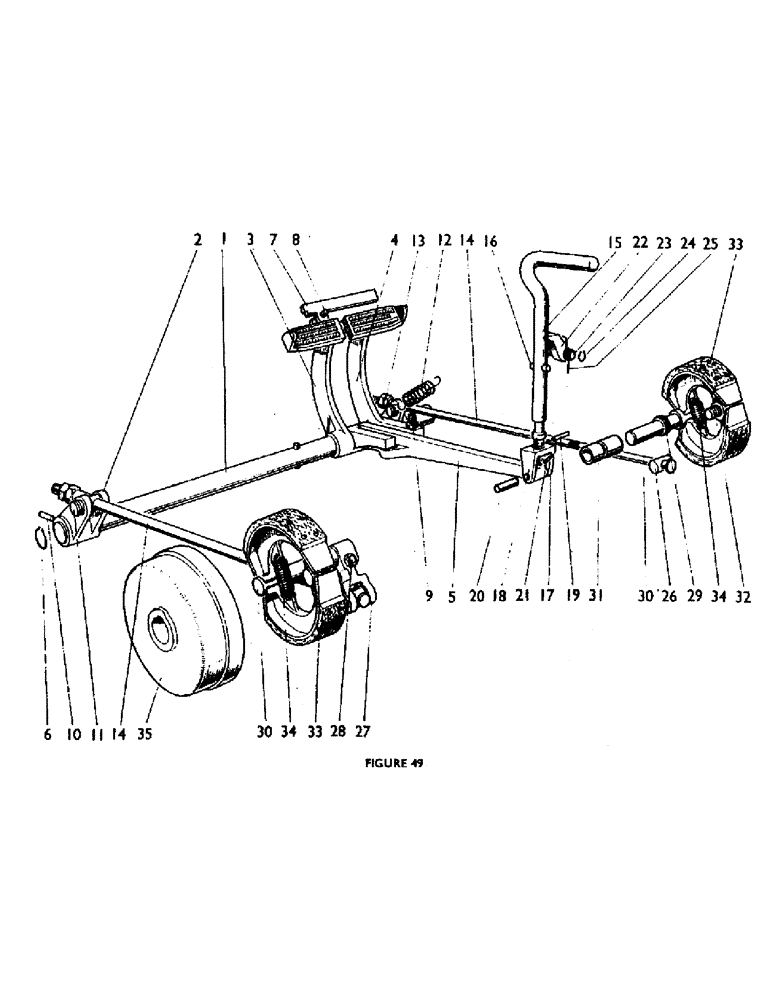

Запчасти Case IH 880F (74) - FOOT AND HAND BRAKES (5.1) - BRAKES

1

K904354

SHAFT

CROSS SHAFT

1шт.

2

K903139

LEVER

1шт.

3

K929845

BRAKE

PEDAL, left-hand

1шт.

4

K904329

BRAKE

PEDAL, right-hand

1шт.

5

K904331

OPERATING LEVER-hand brake

1шт.

K30884

SHIM

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, RH pedal 1/4"-28 NPT x .54" lg

1шт.

6

K11129

RING, SNAP

CIRCLIP, 1 1/4 in. ext.

1шт.

7

K38656

PLATE

LOCKING PLATE (pedal lock)

1шт.

8

K600500

SCREW

BOLT, special, 3/8 UNC (pedal lock)

1шт.

K626700

WASHER

SPRING WASHER, double coil (pedal lock)

1шт.

9

K606170

SCREW

GRUBSCREW, 7/16 UNC

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT, 7/16 UNC

1шт.

10

616387R1

PIN,3/8" x 2", Coiled

MILLS PIN, 3/8 x 2 in.

3шт.

11

K68639

PIN-brake rods

2шт.

12

K14809

SPRING

RETURN SPRING

2шт.

13

K607525

NUT

ADJUSTING NUT, 3/8 UNC

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

14

K929563

ROD

BRAKE ROD

2шт.

15

K903027

LEVER

HAND LEVER

1шт.

16

K13145

SPRING DOWEL PIN, 3/8 x 1 1/2 in.

1шт.

17

K65773

FORK

1шт.

18

K65784

WASHER

SPHERICAL WASHER

1шт.

19

63172

PIN, ROLL

SPRING DOWEL PIN, 5/16 x 2 in.

1шт.

20

K904356

PIN

-fork

1шт.

21

38-11016

LOCK PIN,5/32" x 1", Slotted

SPRING DOWEL PIN, 5/32 x 1 in.

1шт.

22

K65786

PAWL

1шт.

23

K900010

PAWL

PIN-pawl

1шт.

24

K621585

RING, SNAP

CIRCLIP

2шт.

25

K65787

SPRING

1шт.

26

K14744

PIN

-lever

2шт.

27

K30833

LEVER

CAM LEVER, left-hand

1шт.

27

K86343

LEVER

CAM LEVER, right-hand

1шт.

28

K609425

LARGE PIN

COTTER PIN

2шт.

K19472

WASHER

3/8 in.

2шт.

K11522

WASHER

SHAKEPROOF WASHER, 3/8 in.

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

29

K85417

SEAL

DIRT EXCLUDER

2шт.

30

K30832

BRAKE

CAMSHAFT, left-hand

1шт.

30

K30831

BRAKE

CAMSHAFT, right-hand

1шт.

31

K262836

BUSHING

BUSH-camshaft

4шт.

32

K906002

PIN

FULCRUM PIN

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

K903806

BRAKE ASSY.

BRAKE SHOE AND LINING ASSEMBLY, Includes: Ref. 33A - 33D

4шт.

33a

K903512

BRAKE SHOE

4шт.

33b

K964570

KIT

BRAKE LINING

4шт.

33c

K624048

RIVET

3/16 x 5/8 in.

16шт.

33d

K624049

RIVET

3/16 x 7/8 in.

16шт.

K964570

KIT

BRAKE LINING (4) AND RIVET PACK

1шт.

34

K63462

SPRING

-brake shoes

4шт.

35

K905641

BRAKE

DRUM

2шт.
