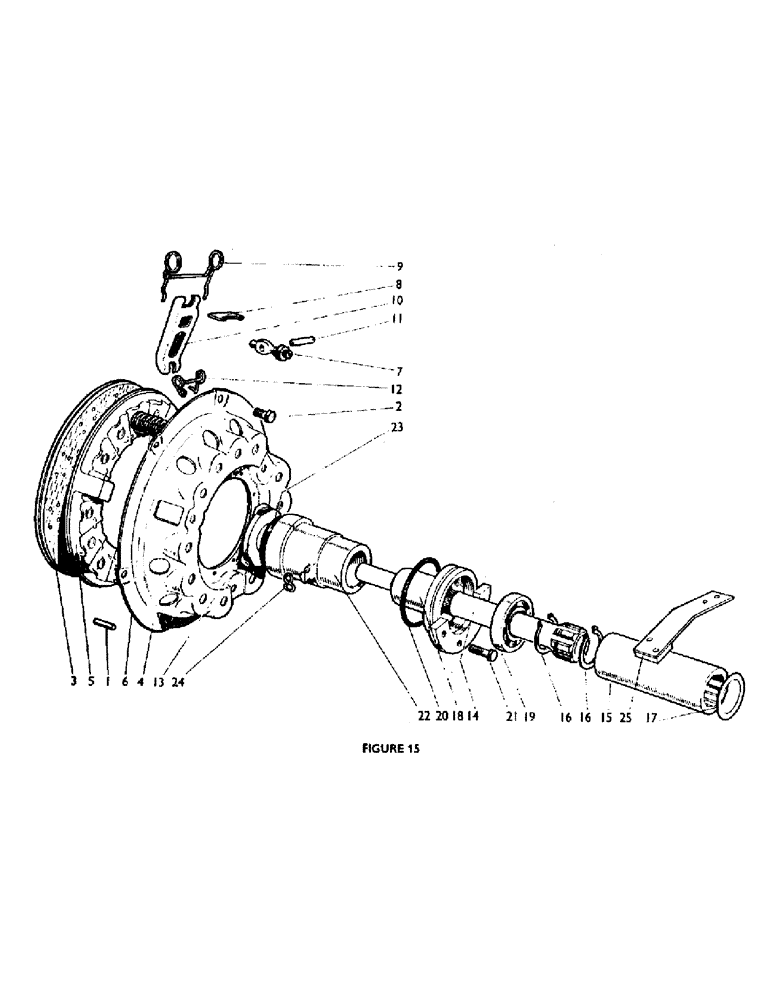

Запчасти Case IH 880F (24) - SINGLE CLUTCH, 880/F, NON-LIVEDRIVE MODELS (03.1) - CLUTCH

1

K621838

PIN

DOWEL-clutch, Serial Range: (clutch-flywheel)

2шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Clutch to flywheel) Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

492-11038

LOCK WASHER,3/8"

(clutch to flywheel) 3/8"

6шт.

3

1539032C1

CLUTCH DISC

DRIVEN PLATE, 10 in. (with facings and rivets)

1шт.

K14011

NO LONGER SERVICED

FACINGS

2шт.

K624026

RIVET

S

26шт.

K14015

COVER

ASSEMBLY, Includes: Ref. 4 - 13

1шт.

4

K14001

COVER-clutch

1шт.

5

K14002

PRESSURE LIMITER

PRESSURE PLATE

1шт.

6

K900239

SPRING-(light green)

12шт.

7

K31219

BOLT

EYEBOLT AND NUT

3шт.

8

K14003

STOP

STRUT-release lever

3шт.

9

K14013

SPRING-anti-rattle

3шт.

10

K68729

LEVER

-clutch release

3шт.

11

K14005

AXLE PIN

PIN-releaase lever

3шт.

12

705530R1

SPRING

RETAINING SPRING

3шт.

13

K14080

PLATE-release lever

1шт.

14

K921155

SHAFT

CLUTCH DRIVESHAFT

1шт.

15

K914080

SPLINED COUPLING

MUFF COUPLING

1шт.

16

K12922

RING, SNAP

CIRCLIP, 1 3/4 in. ext.

2шт.

17

K966969

SHIM

1шт.

18

K911906

SUPPORT

SNOUT

1шт.

19

K620033

BALL

BEARING

1шт.

20

K24865

O-RING

O' RING

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW, 5/16 UNC x 1 in.

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

K24866

KEY

3/16 x 5/32 x 1 1/4 in

1шт.

22

K913243

THRUST BEARING

1шт.

23

K262817

RING

CARBON BLOCK-thrust bearing

1шт.

24

K89336

SPRING

-clutch fork

2шт.

25

K922760

PAD

CLUTCH STOP

1шт.

K966141

SCREW

2 BA x 5/8 in.

20шт.

K623002

LOCK NUT

NYLOC NUT, 2 BA

2шт.
