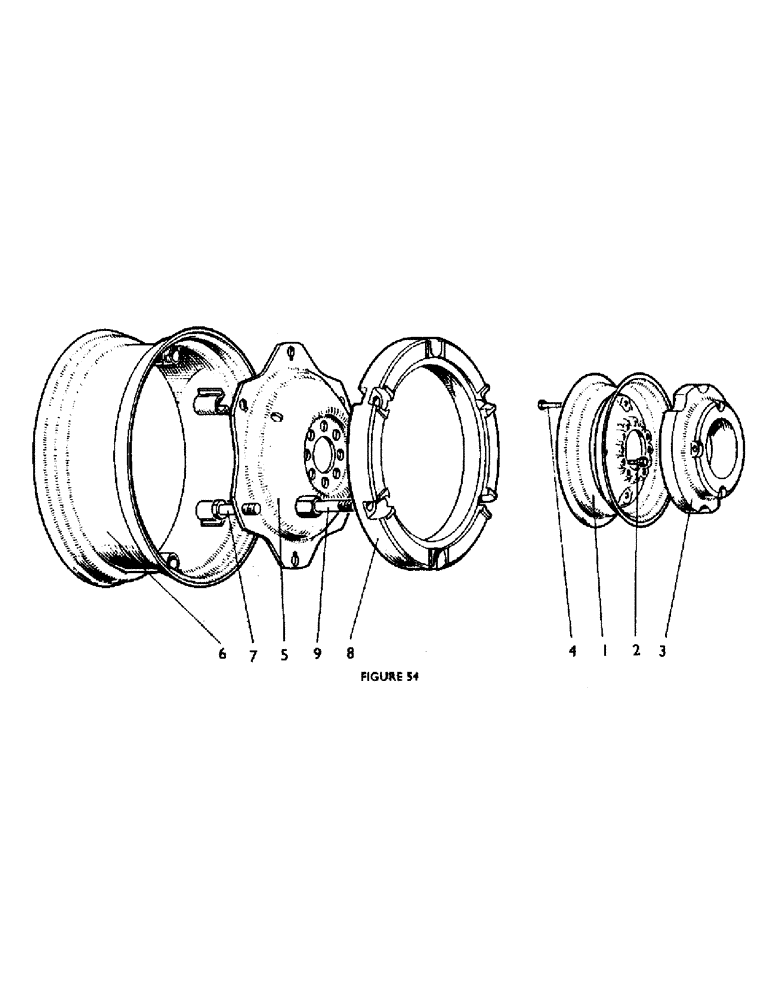

Запчасти Case IH 880F (84) - FRONT WHEELS & BALLAST WEIGHTS / REAR WHEELS & BALLAST WEIGHTS (12) - CHASSIS

1

704675R91

RIM

FRONT WHEEL, 4.50E x 16 in. (fits 6.00 x 16 in. or 5.50 x 16 in. tyres)

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT, 1/2 UNC x 1 in.

12шт.

3

K909316

WEIGHT

BALLAST WEIGHT U436 (907954) (optional equipment)

2шт.

4

K600817

BOLT

1/2 UNC x 3 3/4 in. U436 (907954) (optional equipment)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , U436 (907954) (optional equipment) 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , UNC U436 (907954) (Optional equipment) 1/2"-13, G5

8шт.

K914585

NO LONGER SERVICED

REAR RIM AND ENTRE ASSEMBLY, W11 x, 914585 28 in. (fits 12.4/11 x 28 in. tyres), Includes: Ref. 5 - 7B

2шт.

5

K301003

WHEEL

REAR WHEEL CENTRE

1шт.

6

K67980

WHEEL

REAR WHEEL RIM

1шт.

7

K611261

BOLT

RIM BOLT, 5/8 UNF

6шт.

7a

K19475

WASHER

5/8 in.

6шт.

7b

425-1110

NUT,5/8"-18, G5

6шт.

8

K86167

WEIGHT

BALLAST WEIGHT U729 (911480) (optional equipment)

4шт.

9

K914869

STUD

SPECIAL STUD U729 (911480) (optional equipment)

6шт.

K19305

BOLT

5/8 BSF x 2 in. - weight to weight, U729 (911480) (optional equipment)

6шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, , U729 (911480) (optional equipment) 5/8"

6шт.
