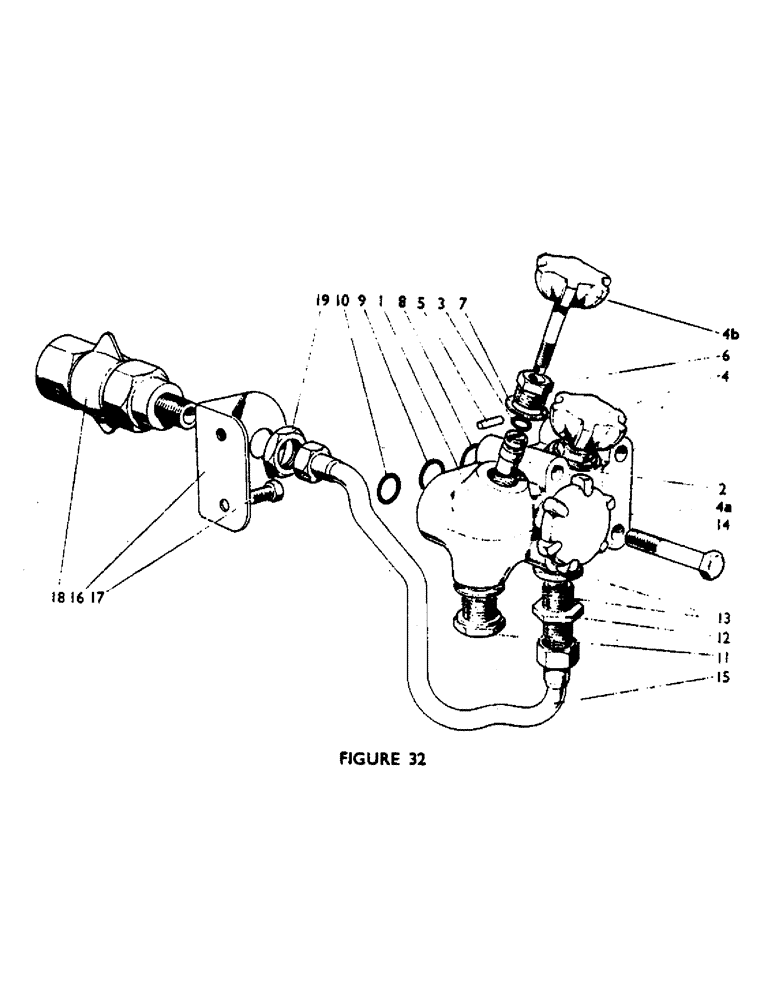

Запчасти Case IH 880F (50) - THREE WAY HYDRAULIC VALVE, U578, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K911132

NO LONGER SERVICED

THREE-WAY HYDRAULIC VALVE (U578) (With Exactor Coupling)

1шт.

K961768

SPARE PART

THREE-WAY HYDRAULIC VALVE (U578) (Less Exactor Coupling)

1шт.

K912826

SPARE PART

SELECTOR VALVE ASSEMBLY, Includes: Ref. 1 - 7

1шт.

1

K911996

VALVE BODY

1шт.

2

K901868

PLUNGER

3шт.

3

K625404

O-RING,0.362" ID x 0.103" Width

O' RING

3шт.

4

K912825

HANDWHEEL SPINDLE

1шт.

4a

K914419

KNOB

HANDWHEEL SPINDLE

1шт.

4b

K910129

HANDWHEEL

SPINDLE

1шт.

5

K623730

PIN

MILLS PIN, 1/8 x 1/2 in.

3шт.

6

K901870

BUSHING, LARGE

SCREWED BUSH

3шт.

7

K15143

WASHER

ROLLER COPPER WASHER

3шт.

8

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

O' RING-valve body

1шт.

9

4902/20134

O-RING

O' RING-body to cylinder inlet

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O' RING-body to pipe

1шт.

11

K24850

WASHER

FLANGED PLUG

1шт.

12

K30100

UNION

SPECIAL UNION

1шт.

13

K626783

WASHER

SEALING WASHER

2шт.

14

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

15

K917321

PIPE

, Serial Range: PIPE-valve-coupling

1шт.

16

K922622

BRACKET

-coupling

1шт.

17

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in. (bracket to seat support)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (bracket to seat support) 5/16"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16 UNC (bracket to seat support)

2шт.

18

K920092

EXTRACTOR

EXACTOR COUPLING

1шт.

K200681

COVER

DUST COVER-Exactor coupling

1шт.

19

K19647

NUT

LOCKNUT, 1/2 in. BSP

1шт.
