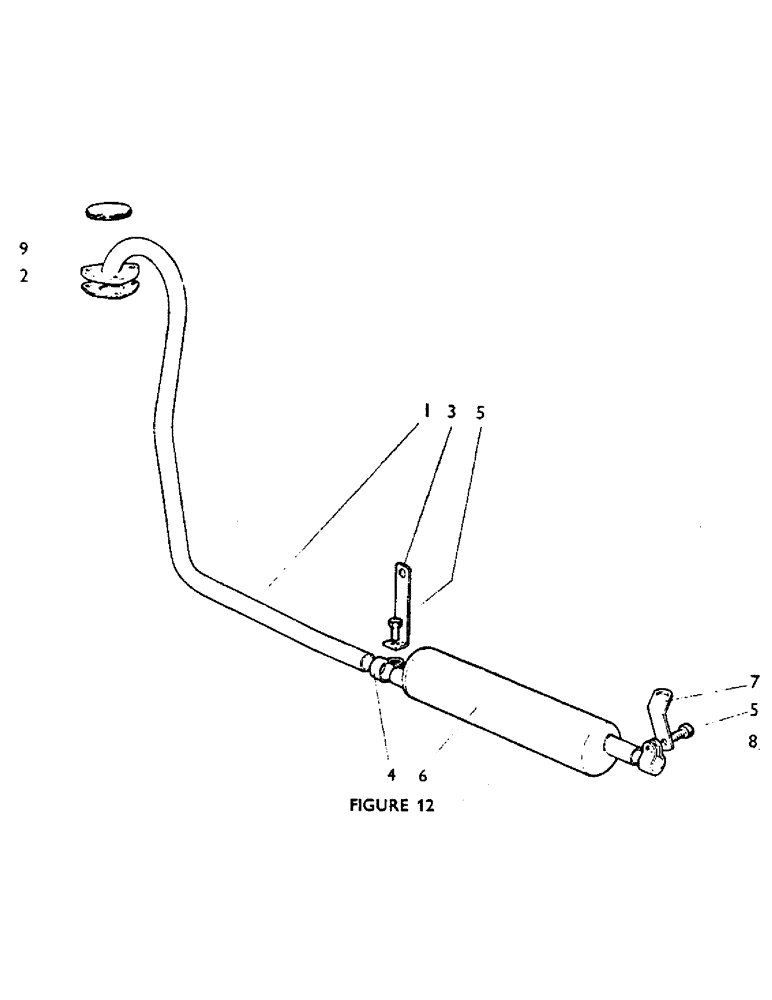

Запчасти Case IH 880F (20) - DOWNSWEPT EXHAUST (U579) (OPTIONAL EQUIPMENT) (01) - ENGINE

K911133

DOWNSWEPT EXHAUST (U579) (Optional Equipment)

1шт.

1

K913049

EXHAUST PIPE

1шт.

2

K912441

GASKET

1шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

3

K913051

SUPPORT STRAP-front

1шт.

4

K10455

CLIP

1шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SETSCREW, 5/16 UNC x 5/8 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

K910539

MUFFLER

SILENCER

1шт.

7

K913052

SUPPORT STRAP-rear

1шт.

8

K913053

WASHER

CLIP

1шт.

9

K912688

INSERT

-bonnet aperture

1шт.
