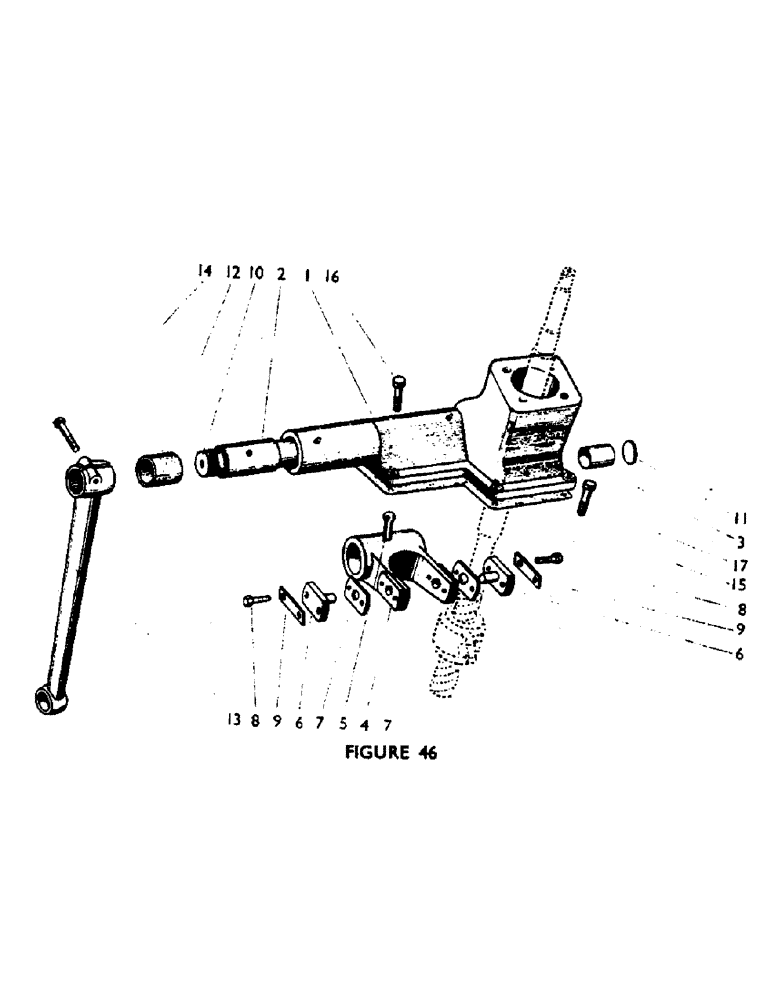

Запчасти Case IH 880F (69) - STEERING BOX AND DROP ARM Steering & Front Axle

1

K912409

NO LONGER SERVICED

STEERING BOX

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

2

K16561

BUSHING

BUSH-long (drop arm shaft)

2шт.

3

K262792

BUSHING

BUSH-short (drop arm shaft)

1шт.

4

K944419

ROCKER

ARM

1шт.

5

K966283

PIN

SPLIT PIN, 3/16 x 2 1/4 in.

10шт.

6

K912108

BALL

PEG

2шт.

7

K900945

GASKET

SHIM, .003 in. (2 sets)

1шт.

7

K900946

SHIM,.005" Thk

(2 sets) .005" Thk

1шт.

7

K966964

SHIM,.007" Thk

(2 sets) .007" Thk

1шт.

7

K900948

SHIM,.010" Thk

(2 sets) .010" Thk

1шт.

8

K966398

SCREW

SETSCREW, 1/4 UNC x 5/8 in.

40шт.

9

K912109

WASHER

TAB WASHER

2шт.

10

K902673

ARM

DROP ARM SHAFT

1шт.

11

K10050

PLUG

WELCH PLUG

1шт.

12

K86963

LARGE HOSE

DUST SHIELD-drop arm shaft

1шт.

13

K901140

ARM

DROP ARM

1шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 UNC x 2 1/2 in. (Drop arm to shaft)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Drop arm to shaft) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(drop arm to shaft) 3/8"

1шт.

15

K89395

GASKET

(steering box to gearbox cover)

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SETSCREW, 3/8 UNC x 1 in. (Steering box to gearbox cover)

2шт.

492-11038

LOCK WASHER,3/8"

(steering box to gearbox cover) 3/8"

6шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3/8 UNC x 1 3/8 in. (steering box to gearbox cover)

4шт.
