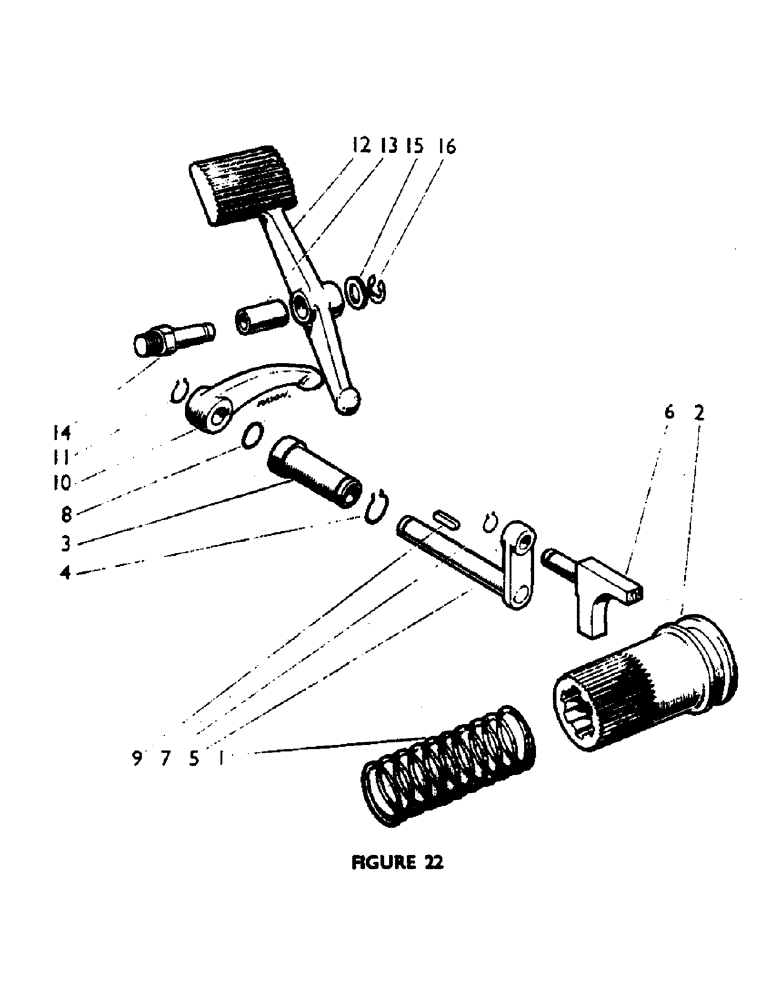

Запчасти Case IH 880F (35) - DIFFERENTIAL LOCK Gearbox

1

K625119

SPRING

RETURN SPRING

1шт.

2

K903191

SLEEVE

LOCKING SLEEVE

1шт.

3

K903494

BUSHING

BUSH-cross shaft

1шт.

4

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

5

K903197

SHAFT

CROSS SHAFT AND ARM

1шт.

6

K903226

SELECTOR

FORK

1шт.

K626686

WASHER

1/2 in.

1шт.

7

K11302

RING, SNAP

CIRCLIP, 1/2 in. ext.

1шт.

8

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O' RING

1шт.

9

K622309

KEY

3/32 x 5/32 x 3/4 in.

1шт.

10

K903228

LEVER

1шт.

11

K966070

RING, SNAP

CIRCLIP, 5/8 in.

10шт.

12

K962631

PEDAL

1шт.

13

K621346

BUSHING

BUSH

1шт.

14

K907643

NO LONGER SERVICED

PIVOT PIN-special

1шт.

15

K626686

WASHER

1/2 in.

1шт.

16

100-3350

SNAP RING,#50, .392" Dia, E-Type

RING, RETAINING, #50, .392" Dia, E-Type

1шт.
