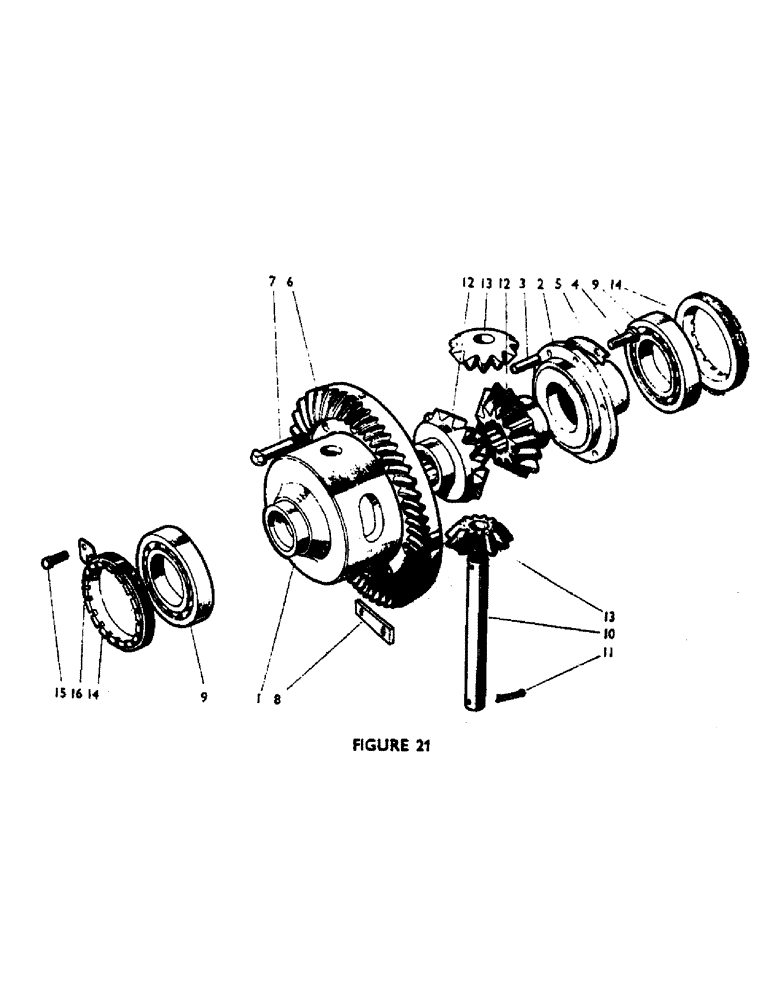

Запчасти Case IH 880F (34) - DIFFERENTIAL Gearbox

1

K908780

HOUSING

CAGE

1шт.

2

K903184

FLANGE

END PLATE

1шт.

3

K14542

CONE WASHER

DOWEL, 3/8 x 3/4 in.

3шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SETSCREW, 3/8 UNC x 1 in.

6шт.

5

K903185

WASHER

TAB WASHER

3шт.

6

K962047

GEAR

BEVEL PINION AND SPIRAL GEAR

1шт.

7

K905664

WHEEL BOLT

12шт.

8

K30236

WASHER

TAB WASHER

6шт.

425-107

NUT,7/16"-14, G5

7/16 UNC

12шт.

9

K19010

BALL BEARING

2шт.

10

K30233

RING, SNAP

PIN

1шт.

11

K966228

PIN

SPLIT PIN, 5/32 x 1 5/8 in.

20шт.

12

K30234

CONE PINION

WHEEL

2шт.

13

K15020

NO LONGER SERVICED

PINION

2шт.

14

K15007

RING, LOCKING

ADJUSTER WHEEL

2шт.

15

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in.

2шт.

16

K626420

WASHER

TAB WASHER

2шт.
