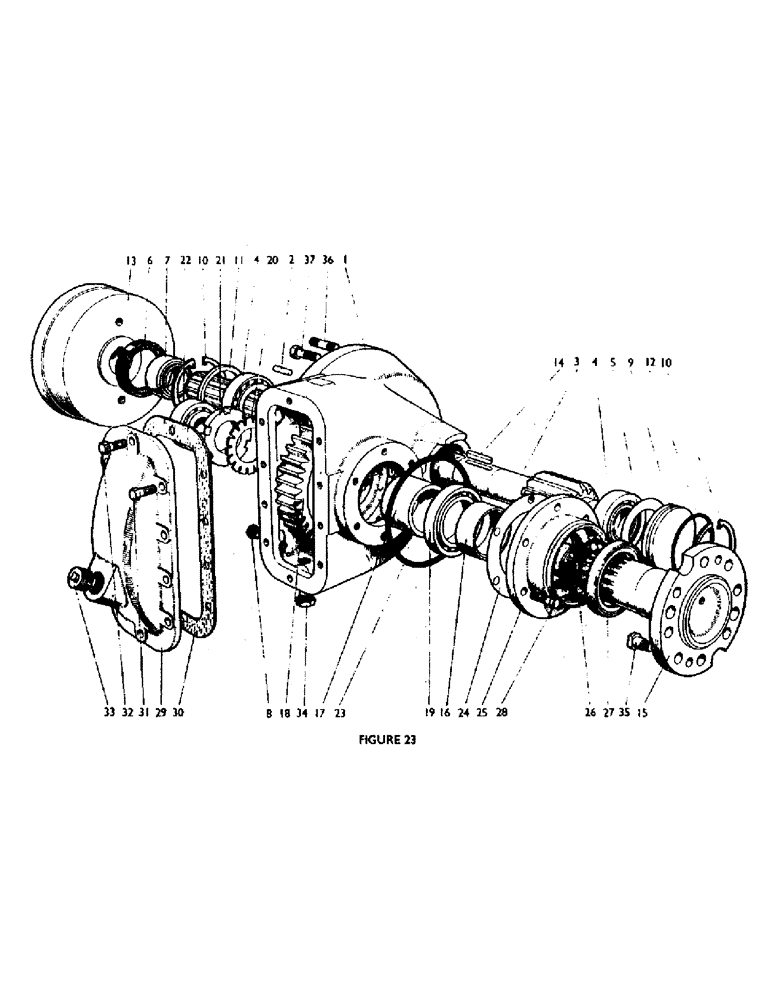

Запчасти Case IH 880F (36) - FINAL DRIVE REDUCTIONS Final Drive Reductions

K961755

X

FINAL DRIVE REDUCTION-right-hand, 9/50 ratio (complete)

1шт.

K961756

X

FINAL DRIVE REDUCTION-left-hand, 9/50 ratio (complete)

1шт.

K961757

FINAL DRIVE REDUCTION-right-hand, 11/49 ratio (complete)

1шт.

K961758

VALVE, BRAKE

FINAL DRIVE REDUCTION-left-hand, 11/49 ratio (complete)

1шт.

1

K942145

GEAR

CASE, right-hand

1шт.

1

K942145

GEAR

CASE, left-hand

1шт.

2

K11482

PIN

DOWEL, 7/16 x 1 1/4 in.

4шт.

3

K907402

NO LONGER SERVICED

PINION SHAFT (9 teeth), left-hand 9/50 ratio

1шт.

3

K911924

NO LONGER SERVICED

PINION SHAFT (9 teeth), right-hand 11/49 ratio

1шт.

3

K907404

PINION

SHAFT (9 teeth), right-hand 9/50 ratio

1шт.

3

K911925

GEAR-SET

PINION SHAFT (11 teeth), right-hand 11/49 ratio

1шт.

4

K19186

BEARING, ROLLER

TAPER ROLLER BEARING

4шт.

5

K262837

SHIM,.003" Thk

1шт.

5

K907515

SHIM,.010" Thk

1шт.

6

K262892

SEAL

OIL SEAL

2шт.

#6 SB K623455, csd 7/8/98

1шт.

7

K907503

COLLAR

2шт.

8

K627904

SEAL

REDCAP SEAL-stabiliser holes

6шт.

9

K929045

COVER

END COVER

2шт.

10

934446R1

SNAP RING,M82, Int

CIRCLIP, 3 1/4 in. internal

4шт.

11

K904256

SPACER

DISTANCE PIECE

2шт.

12

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

13

K905641

BRAKE

DRUM

2шт.

14

K19615

KEY

2шт.

15

K962918

NUT

FINAL DRIVE SHAFT

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

16

K910781

COLLAR

2шт.

17

K908925

SLEEVE

2шт.

18

K909322

WHEEL

SPUR WHEEL (50 teeth) 9/50 ratio

2шт.

18

K911926

WHEEL

SPUR WHEEL (49 teeth) 11/49 ratio

2шт.

19

K19185

TAPERED BEARING

TAPER ROLLER BEARING

2шт.

20

K85355

LOCK WASHER

TAB WASHER

2шт.

21

K85359

LOCK NUT

LOCKNUT

2шт.

22

K19186

BEARING, ROLLER

TAPER ROLLER BEARING

2шт.

23

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

O' RING

2шт.

24

K902772

SHIM,.003" Thk

1шт.

24

K902772

SHIM,.003" Thk

1шт.

24

K902774

SHIM,.009" Thk

1шт.

24

K902775

GASKET

SHIM, .015 in.

1шт.

25

K910782

OIL RESERVOIR

OIL SEAL HOUSING

2шт.

26

K623536

O-RING

O' RING

2шт.

27

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

OIL SEAL

2шт.

28

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 UNC x 1 1/2 in. (housing to case)

12шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in., Serial Range: (housing-case)

12шт.

29

K901556

COVER

2шт.

30

K923221

GASKET,0.51mm Thk

2шт.

31

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in. (cover to reduction)

18шт.

492-11038

LOCK WASHER,3/8"

(cover to reduction) 3/8"

20шт.

32

K600502

BOLT

BREATHER BOLT (cover to reduction case)

2шт.

33

K12362

PLUG

TAPER PLUG, 1 in. BSP-reduction cover

2шт.

34

K24850

WASHER

FLANGED PLUG-reduction case

2шт.

K626769

WASHER

SELON SEALING WASHER

2шт.

35

K611266

BOLT

SPECIAL BOLT, 5/8 UNF (wheel centre fixing)

16шт.

K617170

NUT

5/8 UNF (wheel centre fixing)

16шт.

36

K608406

STUD

1/2 UNC x 2 7/8 in. (reductions to rear axle case)

8шт.

37

K600878

BOLT

1/2 UNC x 1 5/8 in. (reductions to rear axle case)

14шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , UNC (Reductions to rear axle case) 1/2"-13, G5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Reductions to rear axle case) 1/2"

20шт.
