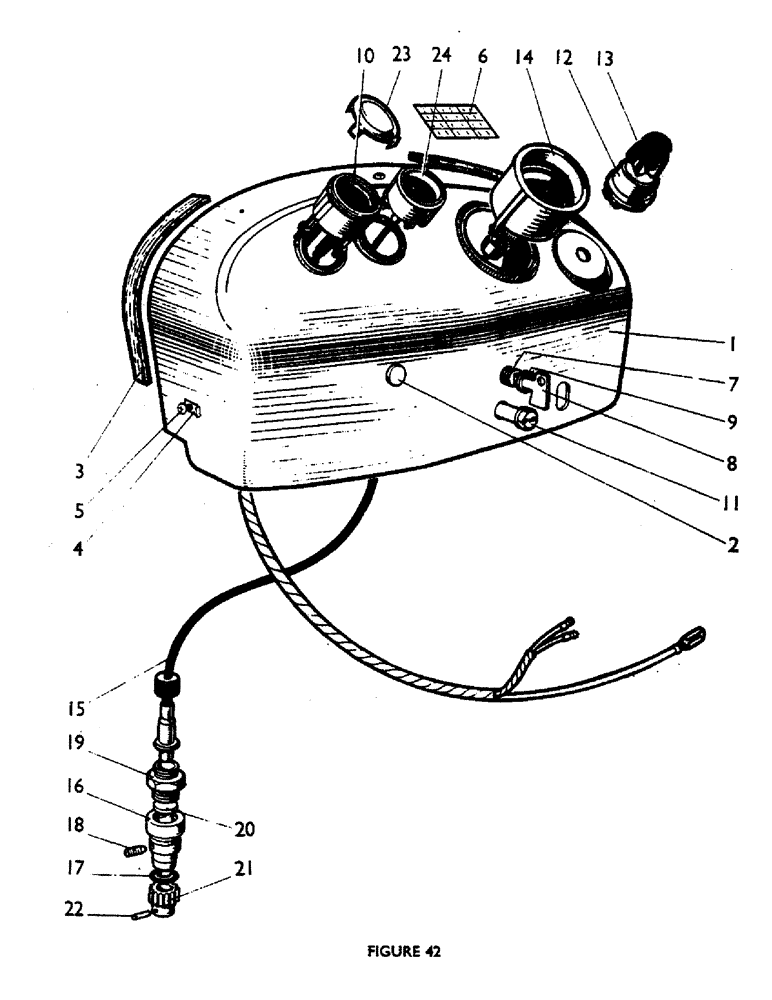

Запчасти Case IH 880F (62) - INSTRUMENTS AND PANEL Engine Controls & Instruments
№
Артикул
Название
Примечание
Количество
1
K913198
INSTRUMENT PANEL
1шт.
2
K627711
PLUG
BUTTON
1шт.
3
K967043
SEAT
ING STRIP
3шт.
4
K966677
NUT
RETAINER AND NUT, 2 BA
40шт.
5
K966682
SCREW
2 BA x 1/2 in.
40шт.
K11519
WASHER
SHAKEPROOF WASHER, 3/16 in.
4шт.
6
K917765
DECAL
GEAR SELECTION CHART 12-speed gearbox
1шт.
K24775
SCREW-chart to instrument panel
2шт.
7
3107556R93
IGNITION SWITCH
ISOLATING AND STARTER SWITCH
1шт.
8
K912417
KEY
2шт.
9
K912408
NUT
-switch retaining
1шт.
10
K908351
INDICATOR LIGHT
WARNING LIGHT (dynamo charge and oil pressure)
1шт.
BULB, 12 volt, 2.4 watt MES
2шт.
11
K907475
FUSE
HOLDER, Includes: Ref. 11A - 11C
1шт.
11a
K960980
HOLDER
CAP-fuse holder
1шт.
11b
K960981
SEAL
RUBBER SEAL-cap
1шт.
11c
K904459
FUSE
25 amp
1шт.
12
K912388
IGNITION SWITCH
LIGHTING SWITCH (Lucas 16 SA), Includes: Ref. 12A & 13
1шт.
12a
K901982
PLATE
ESCUTCHEON PLATE
1шт.
13
K262015
KNOB
1шт.
K625400
O-RING,0.07" Thk x 0.239" ID
O' RING
1шт.
14
K907090
NO LONGER SERVICED
TRACTORMETER (MPH), 11/49 reductions
1шт.
14
K907089
SPARE PART
TRACTORMETER (KPH), 11/49 reductions
1шт.
14
K912287
NO LONGER SERVICED
TRACTORMETER (MPH), 9/50 reductions
1шт.
14
K912687
SPARE PART
TRACTORMETER (KPH), 9/50 reductions
1шт.
15
K908883
CABLE
-tractormeter drive (32 in.)
1шт.
16
K908181
HOUSING
1шт.
17
350684R1
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
O' RING
1шт.
18
K928265
SCREW,5/16" - 18 x 1-1/16"
LOCATING SCREW, 5/16 UNC
1шт.
K966480
NUT
LOCKNUT, 5/16 UNC
10шт.
19
K620008
ADAPTER
ADAPTOR
1шт.
K626957
WASHER
FIBRE WASHER
1шт.
20
K908182
DRIVE
SHAFT
1шт.
21
K908183
DRIVE
GEAR-drive shaft
1шт.
22
138-317
LOCK PIN,1/8" x 5/8", Slotted
PIN, , MILLS PIN 1/8" x 5/8", Slotted
1шт.
23
K903487
BLANKING PLATE-thermo gauge aperture
1шт.
24
K910618
ELECTRICAL GAUGE
THERMO GAUGE U581 (911135)
1шт.
K961999
PRODUCT GRAPHIC
TRANSFER-'to stop, lift knob and release'
1шт.
Выбрано товаров: 38
