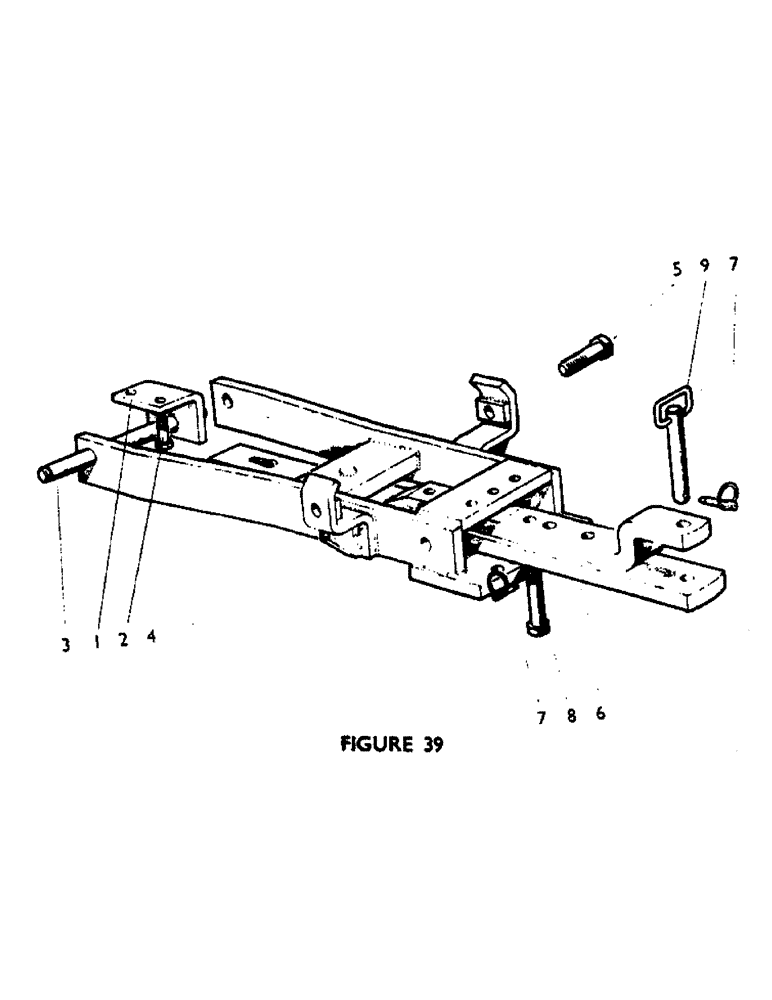

Запчасти Case IH 880F (58) - UNIVERSAL DRAWBAR, OPTIONAL EQUIPMENT Drawbars & Hitches

1

K912194

HINGE BRACKET U593 (911153)

2шт.

2

K603276

SCREW

BOLT, 5/8 UNC x 1 3/4 in. U593 (911153)

4шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, , U593 (911153) 5/8"

4шт.

3

K912282

HINGE

BAR U593 (911153)

1шт.

100-1187

SNAP RING,#87, Ext

Ring, Snap, , U593 (911153) #87, Ext

2шт.

4

K912187

DRAWBAR SUPPORT U593 (911153)

1шт.

5

K908290

STEP BOLT

SPECIAL BOLT U593 (911153)

2шт.

425-1012

NUT,3/4"-10, G5

3/8 UNC, U593 (911153)

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", U593 (911153)

2шт.

K626678

WASHER

SPECIAL WASHER U593 (911153)

1шт.

6

K913697

SWINGING DRAWBAR

DRAWBAR U654 (911355)

1шт.

7

1328218C1

LINCH PIN,11mm OD

AND RING U654 (911355)

2шт.

8

K903940

STOP

LATERAL STOP PIN U654 (911355)

1шт.

9

K901782

HITCH PIN

-drawbar U654 (911355)

1шт.
