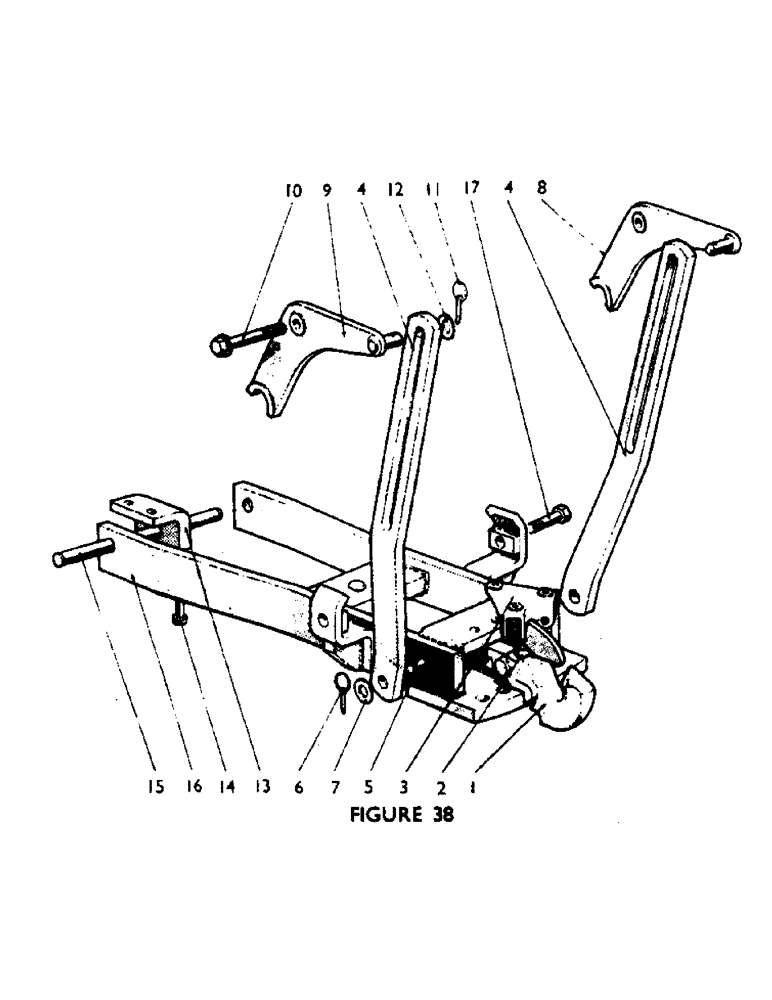

Запчасти Case IH 880F (57) - PICK-UP HITCH, OPTIONAL EQUIPMENT Drawbars & Hitches

1

K904887

HOOK

TOWING HOOK U462 (908863)

1шт.

2

K601611

BOLT

7/8 UNC x 3 3/4 in. U462 (908863)

1шт.

K607308

NUT

NYLOC NUT, 7/8 in. U462 (908863)

1шт.

3

K908851

ANCHOR BRACKET AND STOP U462 (908863)

1шт.

4

K908640

LIFT ROD U462 (908863)

2шт.

5

K909503

PIN

U462 (908863)

2шт.

6

1328218C1

LINCH PIN,11mm OD

AND RING U462 (908863)

2шт.

7

K691861

WASHER

SPECIAL WASHER, plated, 7/8 in. U462 (908863)

2шт.

8

K908415

ARM

LIFT ARM, right-hand U462 (908863)

1шт.

9

K908414

ARM

LIFT ARM, left-hand U462 (908863)

1шт.

10

K601416

BOLT

3/4 UNC x 4 1/2 in. U462 (908863)

2шт.

11

K210316

LINCH PIN

AND RING U462 (908863)

2шт.

12

K691861

WASHER

SPECIAL WASHER, plated, 7/8 in. U462 (908863)

2шт.

13

K912194

HINGE BRACKET U593 (911153)

2шт.

14

K603276

SCREW

BOLT, 5/8 UNC x 1 3/4 in. U593 (911153)

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, , U593 (911153) 5/8"

4шт.

15

K912282

HINGE

BAR U593 (911153)

1шт.

100-1187

SNAP RING,#87, Ext

Ring, Snap, , U593 (911153) #87, Ext

2шт.

16

K912187

DRAWBAR SUPPORT U593 (911153)

1шт.

17

K908290

STEP BOLT

SPECIAL BOLT U593 (911153)

2шт.

425-1012

NUT,3/4"-10, G5

UNC, U593 (911153) 3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", U593 (911153)

2шт.

K626786

WASHER

speical U593 (911153)

1шт.
