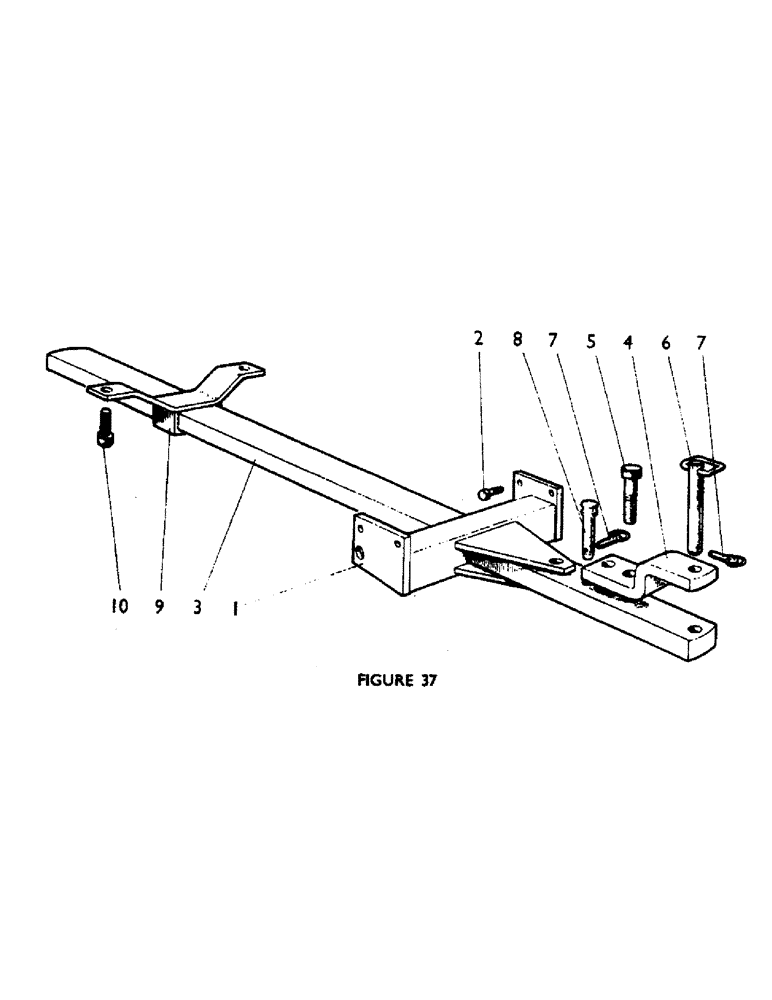

Запчасти Case IH 880F (56) - PERMANENT DRAWBAR Drawbars & Hitches

1

K906011

SUPPORT BRACKET

1шт.

2

K601203

BOLT

5/8 UNC x 1 7/8 in.

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

K905416

DRAWBAR

1шт.

4

K905415

CLEVIS BRACKET

1шт.

5

K601210

BOLT (SPREADER)

BOLT, 5/8 UNC x 2 3/4 in.

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

K901782

HITCH PIN

1шт.

7

1328218C1

LINCH PIN,11mm OD

AND RING

2шт.

8

K17102

NO LONGER SERVICED

LOCKING PIN

1шт.

9

K906013

DRAWBAR SUPPORT

1шт.

10

K603274

SCREW

SETSCREW, 5/8 UNC x 1 3/8 in.

2шт.

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
