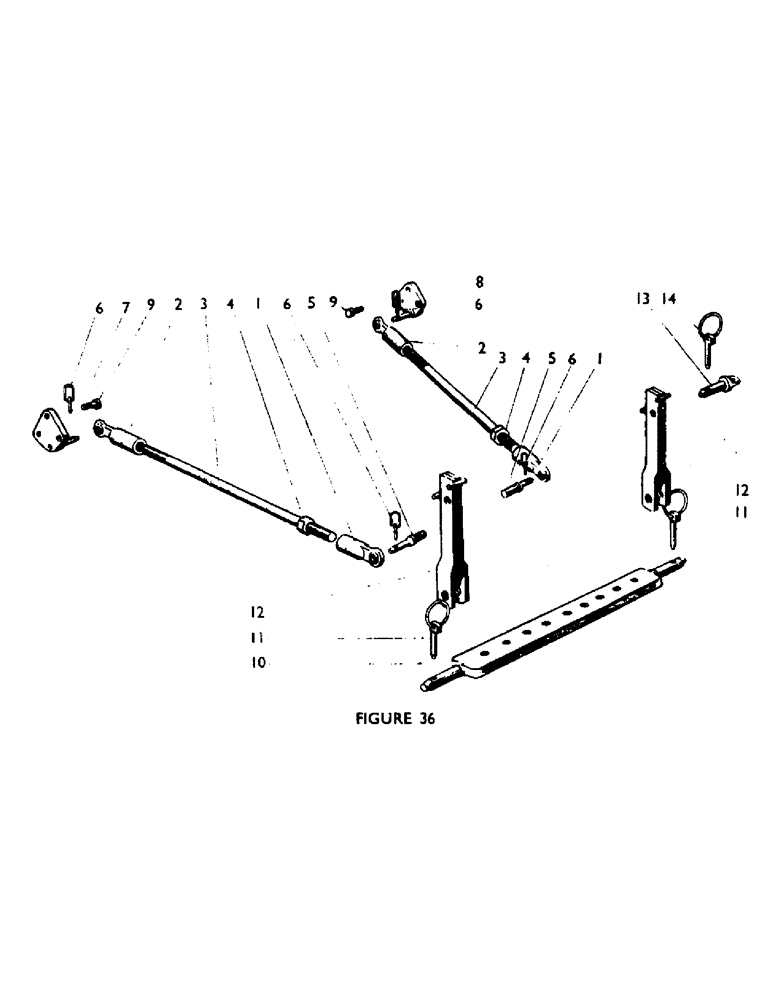

Запчасти Case IH 880F (55) - STABILISER BARS (U587), (U588),/ LINKAGE DRAWBAR (U291) (OPTIONAL EQUIPMENT) Drawbars & Hitches

UK587

STABILIZER

STABILISER BARS (U587) (Optional Equipment)

1шт.

K911148

STABILISER BARS (U588) (Optional Equipment)

1шт.

K912766

STABILIZER

STABILISER ASSEMBLY-lower link, Includes: Ref. 1 - 4

1шт.

1

K901821

BALL

HOUSING-rear

1шт.

2

K901818

PIVOT

BALL HOUSING-front

1шт.

3

K901815

SCREW,21-1/4mm

ED BAR

1шт.

4

K11569

NUT

LOCKNUT, 1 in. BSF

1шт.

5

K907008

PIN

-lower link

1шт.

425-1012

NUT,3/4"-10, G5

UNC 3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

1328218C1

LINCH PIN,11mm OD

AND RING

2шт.

7

K912761

BRACKET, left-hand (U588) for K911148

1шт.

8

K912762

BRACKET, right-hand (U587) for K911147

1шт.

9

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

SETSCREW, 1/2 UNC x 1 3/8 in. (brackets to spur reduction)

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Brackets to spur reduction) 1/2"

3шт.

K85782

LINKAGE DRAWBAR (U291) (Optional Equipment)

1шт.

10

K902280

LINKAGE

DRAWBAR

1шт.

11

1328218C1

LINCH PIN,11mm OD

AND RING

2шт.

12

K902281

LIFT ROD EXTENSION

2шт.

13

K903399

HITCH PIN

LINK PIN

2шт.

14

K210316

LINCH PIN

AND RING

2шт.
