(54) - TOP LINK, OVERLOAD RELEASE (U585), (U586), (OPTIONAL EQUIPMENT)

Запчасти Case IH 880F (54) - TOP LINK, OVERLOAD RELEASE (U585), (U586), (OPTIONAL EQUIPMENT) Drawbars & Hitches

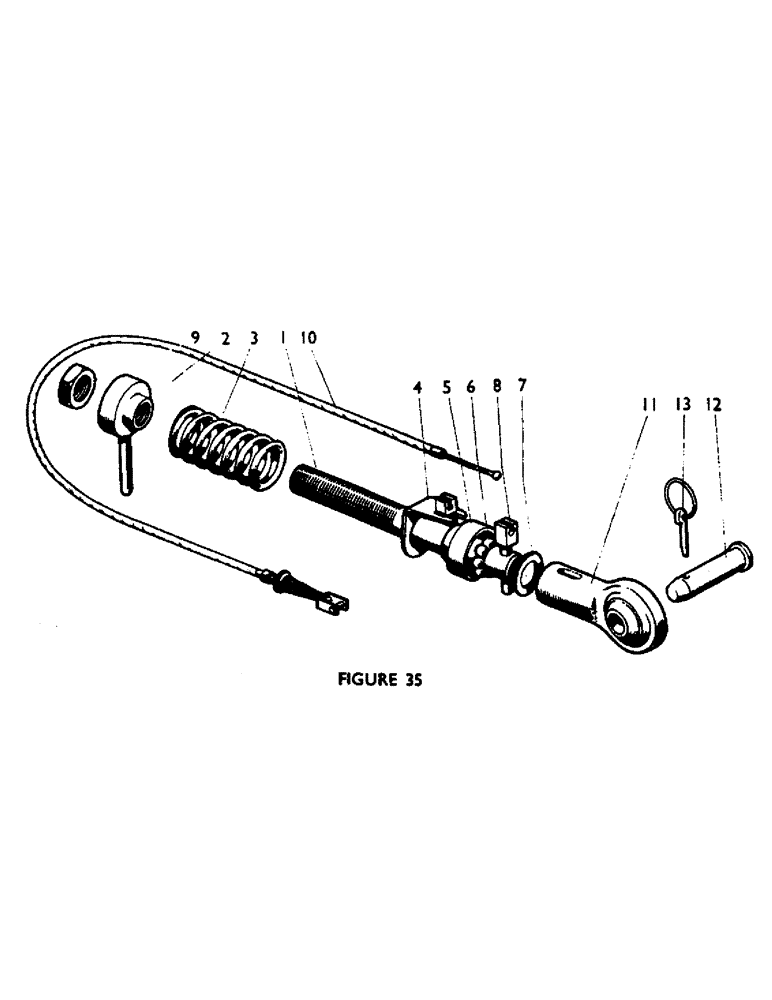

Схема запчастей Case IH 880F - (54) - TOP LINK, OVERLOAD RELEASE (U585), (U586), (OPTIONAL EQUIPMENT) Drawbars & Hitches
6
5
3
8
1
9
10
11
4
13
2
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K911143

TOP LINK (OVERLOAD RELEASE) (U585), Livedrive (Optional Equipment)

1шт.

K911144

TOP LINK (OVERLOAD RELEASE) (U586), Non-Livedrive (Optional Equipment)

1шт.

K960965

OVERLOAD RELEASE ASSEMBLY - (Categories 1 and 2), Includes: Ref. 1 - 11

1шт.

1

K904264

SCREWED SHAFT

1шт.

2

K904266

NUT

ADJUSTING NUT AND PEG

1шт.

3

K46243

SPRING

1шт.

4

K46242

CABLE

OUTER CABLE RETAINER

1шт.

5

K46241

THRUST COLLAR

1шт.

6

211-1012

BALL,3/8" Dia

11шт.

7

K46240

WASHER

THRUST WASHER

1шт.

8

NLS

NO LONGER SERVICED

INNER CABLE RETAINER AND PIN

1шт.

9

K623308

NUT

LOCKNUT, 1 1/4 BST, left-hand

1шт.

10

K904560

CABLE

ASSEMBLY

1шт.

11

K904262

BALL

REAR BALL END - (Categories 1 and 2)

1шт.

12

K65690

HITCH PIN

TOP LINK HITCH PIN - (Category 2)

1шт.

K903981

HITCH PIN

TOP LINK HITCH PIN - (Category 1)

1шт.

13

1328218C1

LINCH PIN,11mm OD

AND RING

1шт.
