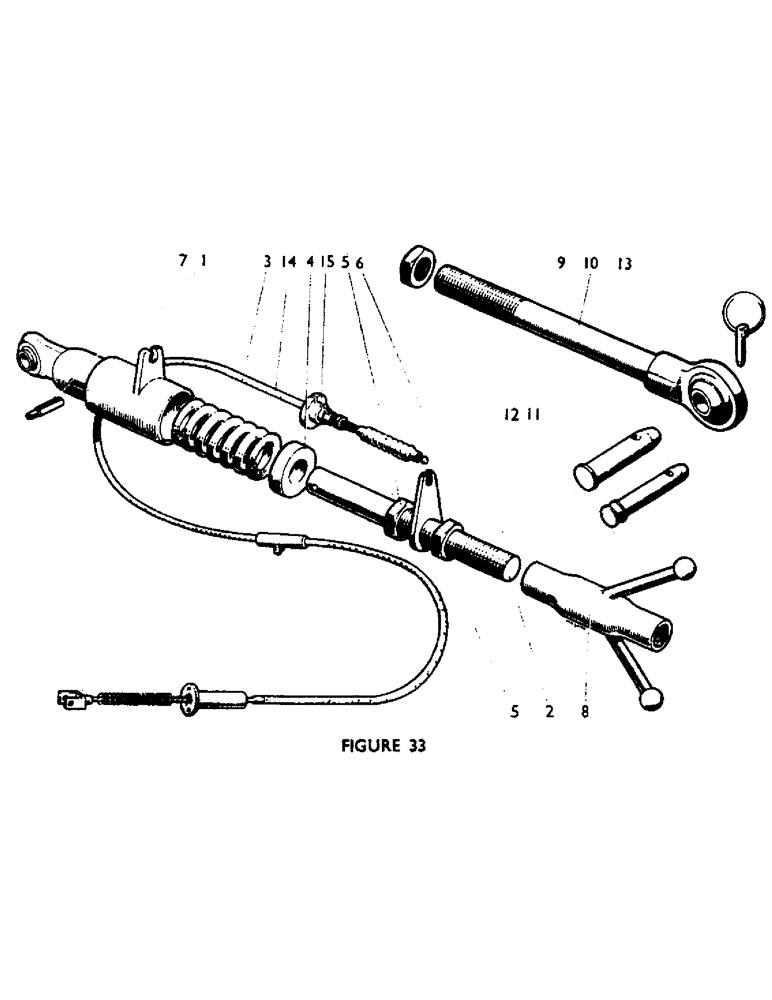

Запчасти Case IH 880F (51) - TOP LINK, NON-OVERLOAD Drawbars & Hitches

K909981

LINK

TOP LINK ASSEMBLY-tractor end, Includes: Ref. 1 - 8

1шт.

1

K909628

SPRING HOUSING

1шт.

2

K909629

SCREWED SHAFT

1шт.

3

K902884

SPRING

1шт.

4

K903063

ABUTMENT WASHER

1шт.

5

K19448

LOCK NUT

LOCKNUT, 1 1/4 BSF

2шт.

6

K909985

INNER CABLE ABUTMENT

1шт.

K967027

SHIM,.005" Thk

1шт.

K911967

SHIM

.010 in.

1шт.

K911967

SHIM

.030 in.

1шт.

K912407

SHIM, .090 in.

1шт.

7

138-314

LOCK PIN,9.53mm OD x 57.15mm L, Coiled

PIN, (Outer) 3/8" x 2 1/4", Slotted

1шт.

7

18485R1

LOCK PIN,7/32" x 2 1/4", Slotted

SPRING PIN (inner)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

8

K921331

TURNBUCKLE

1шт.

9

K623308

NUT

LOCKNUT, 1 1/4 BSF

1шт.

10

K953560

SCREW

AND HOUSING (Categories 1 and 2)

1шт.

11

K65690

HITCH PIN

LINK PIN-(Category 2)

1шт.

12

K903981

HITCH PIN

LINK PIN-(Category 1)

1шт.

13

1328218C1

LINCH PIN,11mm OD

AND RING

1шт.

14

K909627

CABLE

ASSEMBLY, Includes: Ref. 14A & 14B

1шт.

14a

K911970

BOOT

DIRT EXCLUDER

1шт.

14b

K22179

GREASE NIPPLE

1шт.

15

K910890

NUT

HAND NUT

1шт.

K12121

SCREW

2 BA x 1/2 in.

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (3/16") #10

20шт.
