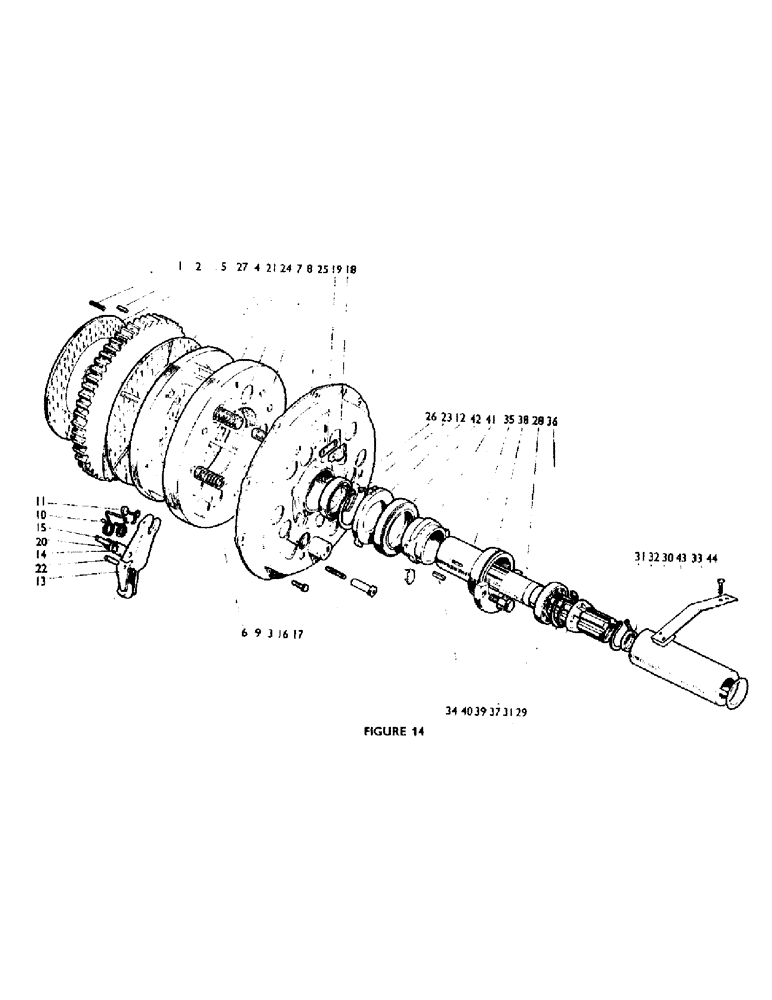

Запчасти Case IH 880E (22) - DOUBLE CLUTCH, 880/E, LIVEDRIVE MODELS (03.1) - CLUTCH

1

K13226

SPRING

-flywheel

3шт.

2

K621838

PIN

DOWEL

2шт.

3

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

9шт.

492-11038

LOCK WASHER,3/8"

9шт.

4

1539038C1

CLUTCH DISC

DRIVEN PLATE (with facings and rivets)-main drive

1шт.

1539045C1

FACING, CLUTCH

FACINGS (2) AND RIVETS (26)

1шт.

5

1539030C1

CLUTCH DISC

DRIVEN PLATE (with facings and rivets)-PTO

1шт.

1539045C1

FACING, CLUTCH

FACINGS (2) AND RIVETS (26)

1шт.

K918611

CLUTCH ASSEMBLY

COVER ASSEMBLY, Includes: Ref. 6 - 26B

1шт.

6

K902514

SPRING

THRUST SPRING (buff)-PTO

6шт.

7

K902512

SPRING

THRUST SPRING (brown)-main drive outer

6шт.

8

K957253

SPRING

THRUST SPRING (brown)-main drive inner

6шт.

9

K900256

SPRING

CUP

12шт.

10

K961128

SPRING

-anti-rattle

3шт.

11

K9000267

RETAINER-release lever plate

3шт.

12

K900268

PLATE

RELEASE LEVER PLATE

1шт.

13

K9000275

RELEASE LEVER

3шт.

103376

PIN

SPLIT PIN

3шт.

14

K900264

ROLLER

3шт.

15

K900265

PIN

-roller

3шт.

K966953

RING, SNAP

CIRCLIP

60шт.

16

K900269

SCREW

ADJUSTING SCREW

3шт.

17

K900270

LOCK NUT

LOCKNUT

3шт.

18

K900257

PAD

ADJUSTING PAD-release lever

3шт.

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SETSCREW

6шт.

493-21026

LOCK WASHER,Int Tooth, 1/4"

SHAKEPROOF WASHER-adjusting pad

6шт.

19

K900258

SHIM,.002" Thk

1шт.

20

K966952

ROLLER

NEEDLE ROLLER-release lever

600шт.

21

K900253

PLATE

PRESSURE PLATE

1шт.

22

K900266

PIN

3шт.

23

800-2175

SNAP RING,M75, Int

CIRCLIP-ball bearing

1шт.

24

K900252

SPARE PART

INNER COVER, BUSHES AND BOSSES

1шт.

25

K918612

COVER

OUTER COVER

1шт.

26

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

26a

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), , Pressure plate pin 3/32" x 1/2"

6шт.

26b

495-31012

WASHER,#4

-release lever

6шт.

27

K906200

DISC

SEPARATOR PLATE

1шт.

28

K914942

CLUTCH ASSEMBLY

CLUTCH DRIVESHAFT 6-speed gearbox

1шт.

28

K913177

CLUTCH ASSEMBLY

CLUTCHDRIVESHAFT 12-speed gearbox

1шт.

29

K89429

GASKET

OIL FLINGER

1шт.

30

K914080

SPLINED COUPLING

MUFF COUPLING

1шт.

31

K12922

RING, SNAP

CIRCLIP, 1 3/4 in. ext.

2шт.

32

K89333

WASHER

FELT WASHER

1шт.

33

K966969

SHIM

1шт.

34

K900359

SPRING

CLIP-bearing carrier

2шт.

35

K911906

SUPPORT

SNOUT-thrust bearing carrier

1шт.

36

K19172

BALL BEARING

1шт.

37

584685R1

SNAP RING,3.00", Int, #300

CIRCLIP-75 mm. bore

1шт.

38

K24865

O-RING

O' RING

1шт.

39

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SETSCREW, 5/16 UNC x 1 in. (support snout to rear frame)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (support snout to rear frame) 5/16"

3шт.

40

K24866

KEY

3/16 x 5/32 x 1 1/4 in.

1шт.

41

K911907

CARRIER

THRUST BEARING CARRIER

1шт.

42

K19169

BEARING, THRUST

THRUST BEARING

1шт.

K89336

SPRING

-clutch fork

2шт.

43

K922760

PAD

CLUTCH STOP

1шт.

44

K966141

SCREW

2 BA x 5/8 in.

20шт.

K623002

LOCK NUT

NYLOC NUT, 2 BA

2шт.
