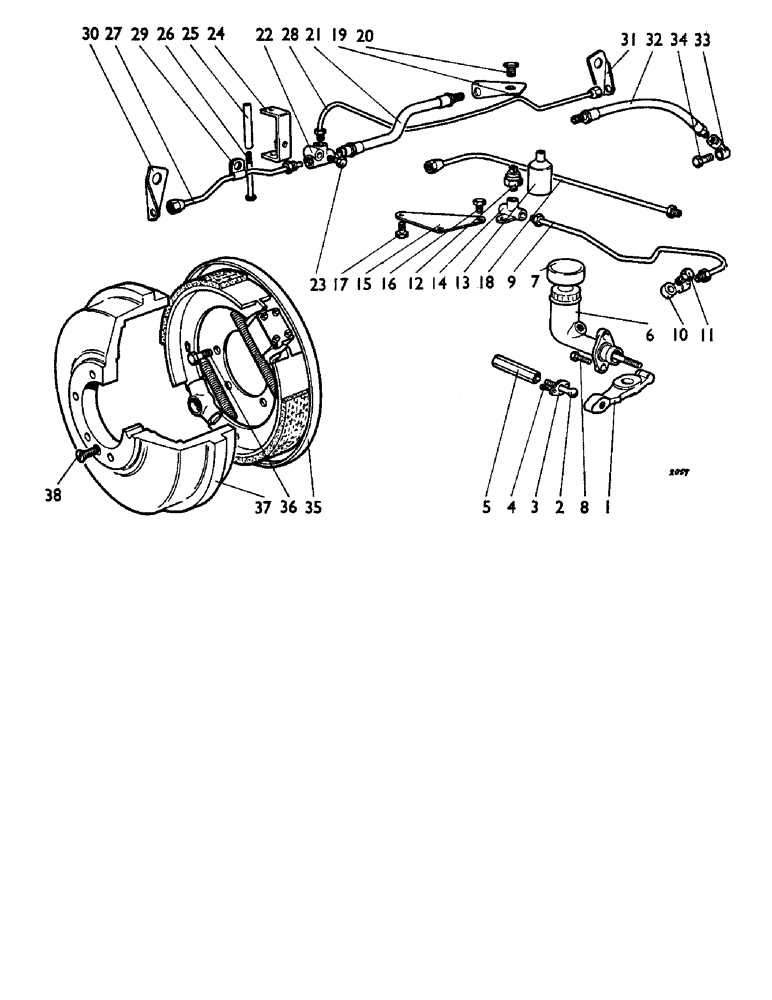

Запчасти Case IH 880B (078) - FRONT-WHEEL BRAKES, OPTIONAL EQUIPMENT (5.1) - BRAKES

1

K972488

BEAM

- compensator

1шт.

2

K971935

ROD

- push

1шт.

3

K971936

SHIM

Retaining plate

1шт.

4

K613982

SCREW

SETSCREW - No. 10 UNF x 3/8 in.

2шт.

K19488

SPRING WASHER

- spring, 3/16 in.

2шт.

5

K971937

SLEEVE

- adjusting

1шт.

K617051

NUT

LOCKNUT - 5/16 UNF

2шт.

6

K972553

SPARE PART

CYLINDER - master (Girling 64067641)

1шт.

7

K972640

CAP

- rubber

1шт.

8

K602806

BOLT

- setscrew, 5/16 UNC x 1 1/8 in. cylinder to frame platform

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. cylinder to frame platform

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC cylinder to frame platform

2шт.

9

K972836

PIPE - master cylinder to stop-lamp switch

1шт.

10

K620345

CONNECTOR, ELEC

CONNECTOR - banjo, 3/8 UNF

1шт.

11

K620344

BANJO BOLT

- banjo, 3/8 UNF

1шт.

K14674

WASHER

- copper, 7/16 in.

1шт.

K626447

WASHER

- copper, 3/8 in.

1шт.

12

K920206

LIGHT SWITCH

SWITCH - stop lamp

1шт.

13

K972887

COVER

- switch

1шт.

14

K972200

3 WAY CONNECTION

CONNECTION - three-way connector

1шт.

15

K972838

SUPPORT

- plate

1шт.

16

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC X 5/8 in.

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

K14393

CABLE

- clip

2шт.

17

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

2шт.

K19471

WASHER

- 5/16 in.

4шт.

18

K972885

PIPE - switch to flexible pipe

1шт.

19

K972884

BRACKET - support, pipe

1шт.

K627020

BUSHING

- distance piece

2шт.

20

K602807

SCREW

SETSCREW - 5/16 UNC x 1 1/4 in., special

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/8 in.

2шт.

21

K972385

HOSE

- flexible pipe, 14 1/8 in.

1шт.

K617052

NUT

LOCKNUT - 3/8 UNF

1шт.

K626479

WASHER

- shakeproof, 3/8 in.

1шт.

K626447

WASHER

- copper, 3/8 in.

1шт.

22

K972194

FITTING

- tee piece

1шт.

23

K600004

BOLT

- 1/4 UNC x 1 1/4 in.

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

24

K972533

CONNECTOR, ELEC

CONNECTOR - support bracket--tee-piece

1шт.

25

K910777

BUSHING

- spacer tube

1шт.

26

K600021

BOLT

- 1/4 UNC x 3 3/4 in.

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

K607000

NUT

- 1/4 UNC

1шт.

27

K972381

PIPE

- left-hand heavy duty front axle

1шт.

28

K972383

PIPE

- right-hand heavy duty front axle

1шт.

29

K621628

PIPE

- clip--to axle heavy duty front axle

2шт.

30

K910775

BRACKET

- support, left-hand heavy duty front axle

1шт.

31

K910776

BRACKET

- support, right-hand heavy duty front axle

1шт.

K621610

CLIP

- heavy duty front axle

1шт.

32

K972385

HOSE

- flexible pipe, 14 1/8 in. heavy duty front axle

2шт.

K617052

NUT

LOCKNUT - 3/8 UNF heavy duty front axle

2шт.

K626479

WASHER

- shakeproof, 3/8 in. heavy duty front axle

2шт.

33

K620345

CONNECTOR, ELEC

CONNECTOR - banjo, 3/8 UNF heavy duty front axle

2шт.

34

K620344

BANJO BOLT

- banjo, 3/8 UNF heavy duty front axle

2шт.

K626447

WASHER

- copper, 3/8 in. heavy duty front axle

2шт.

K14674

WASHER

- copper, 7/16 in. heavy duty front axle

2шт.

K972843

SUPPORT

- bracket--tee-piece fabricated front axle

1шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Fabricated front axle Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. fabricated front axle

1шт.

280136

NUT,3/8"-16, G8

Fabricated front axle 3/8"-16, G8

1шт.

K972383

PIPE

- right-hand fabricated front axle

1шт.

K972711

PIPE

- left-hand fabricated front axle

1шт.

K19932

RING

- clip--pipes to axle fabricated front axle

2шт.

K11189

SCREW

- 3/16 Whit. x 1/2 in. fabricated front axle

2шт.

K19488

SPRING WASHER

- spring, 3/16 in fabricated front axle

2шт.

K19415

NUT

- 3/16 Whit. fabricated front axle

2шт.

K972442

SPARE PART

BRACKET - support, right-hand fabricated front axle

1шт.

K972441

PIPE

- support bracket, left-hand fabricated front axle

1шт.

K972385

HOSE

- flexible pipe, 14 1/8 in. fabricated front axle

2шт.

K617052

NUT

LOCKNUT - 3/8 UNF fabricated front axle

2шт.

K626479

WASHER

- shakeproof, 3/8 in. fabricated front axle

2шт.

K626447

WASHER

- copper, 3/8 in. fabricated front axle

2шт.

35

K971793

BRAKE

- assembly, left-hand (Girling 64021379)

1шт.

35

K971794

BRAKE - assembly, right-hand (Girling 64021381)

1шт.

36

K600503

BOLT

- 3/8 UNC x 1 1/16 in.

8шт.

232-1416

LOCK NUT,3/8"-16, GC

NUT - Nyloc, 3/8 UNC

8шт.

37

K971802

BRAKE

- drum, 10 in. dia.

2шт.

38

K604210

SCREW

- 1/2 UNC x 1 3/8, Serial Range: in.--drum-hub

4шт.
