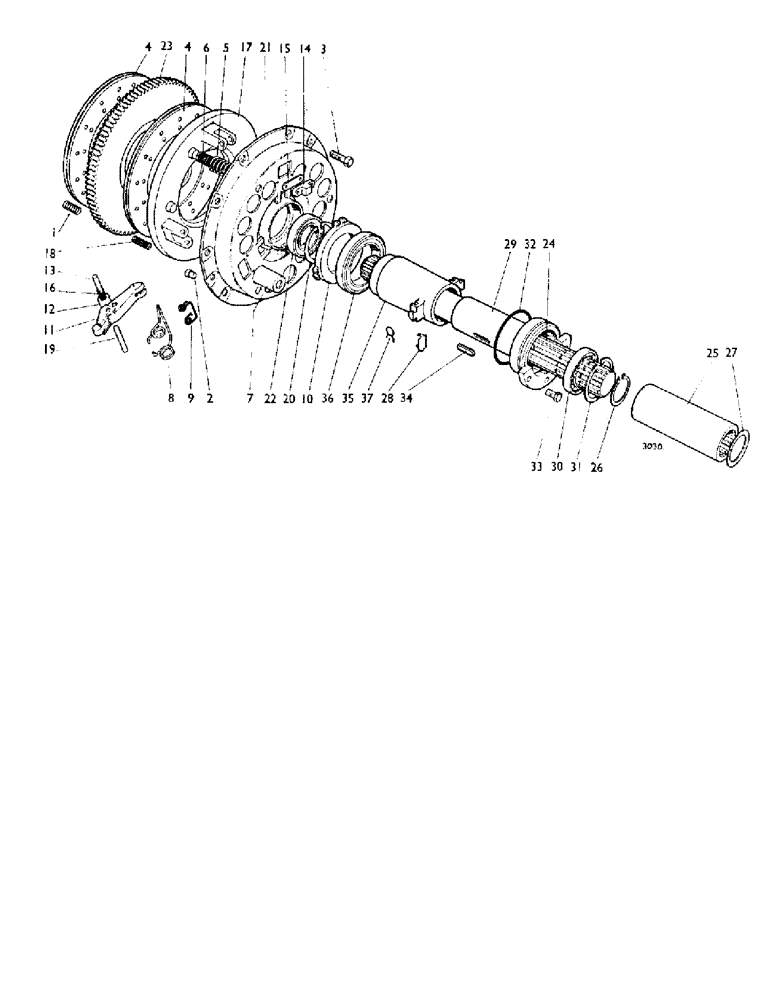

Запчасти Case IH 880B (024) - TWIN-PLATE CLUTCH, 880/B AND 880/M MODELS, OPTIONAL EQUIPMENT (03.1) - CLUTCH

1

K13226

SPRING

- flywheel

3шт.

2

K621838

PIN

- dowel, 5/16 x 7/32 x 1 1/8 in. (replaces 10629)

2шт.

3

K602903

SCREW

- bolt, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

9шт.

4

K928288

CLUTCH DISC

DISC - clutch, driven plate (with facings and rivets) (s.s. 971903)

2шт.

K962556

CLUTCH

- facings (2) and rivets (24)--10 in. (replaces 961828)

2шт.

K924529

COVER

- assembly (supersedes 923549)

1шт.

5

K902512

SPRING

- thrust (brown)--outer 924529

6шт.

6

K902513

SPRING

- thrust (brown)--inner 924529

6шт.

7

K900256

SPRING

- cup 924529

12шт.

8

K961128

SPRING

- anti-rattle 924529

3шт.

9

K900267

RETAINER

- release lever plate 924529

3шт.

10

K900268

PLATE

- release lever 924529

1шт.

11

K900275

LEVER

- release 924529

3шт.

K900278

PIN

- split 924529

3шт.

12

K900264

ROLLER

- 924529

3шт.

13

K900265

PIN

- large, roller 924529

3шт.

K900274

RING, SNAP

SNAP RING - circlip 924529

6шт.

14

K900257

PAD

- adjusting, release lever 924529

3шт.

K900272

SCREW

SETSCREW - adjusting pad 924529

6шт.

K900279

WASHER

- shakeproof 924529

6шт.

16

K900273

NEEDLE

- roller--release lever 924529

57шт.

17

K962573

PLATE

- pressure (replaces 900253) 924529

1шт.

18

K625232

SPRING

- 924529

3шт.

19

K900266

PIN

- 924529

3шт.

20

K89326

RING, SNAP

SNAP RING - circlip, 3 1/8 in. int. dia.--ball bearing, 924529

1шт.

21

K962574

COVER

- outer (replaces 918612) 924529

1шт.

22

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball 924529

1шт.

K900271

SPARE PART

PIN - split, pressure plate pin 924529

6шт.

K900280

WASHER

- release lever 924529

6шт.

23

K906200

DISC

- separator plate

1шт.

24

K919404

SHAFT

DRIVESHAFT - clutch

1шт.

25

K914080

SPLINED COUPLING

COUPLING - splined, muff

1шт.

26

K12922

RING, SNAP

SNAP RING - circlip, 1 3/4 in. ext.

2шт.

28

K900359

SPRING

- clip--bearing carrier

2шт.

29

K911906

SUPPORT

- snout--thrust bearing carrier

1шт.

30

K620033

BALL

- bearing

1шт.

31

K621430

CIRCLIP

- 75 mm. int.

1шт.

32

K24865

O-RING

- 3 3/8 in. int. dia.

1шт.

33

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. support snout to rear frame

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. support snout to rear frame

3шт.

34

K24866

KEY

- 3/16 x 5/32 x 1 1/4 in.

1шт.

35

K911907

CARRIER

- thrust bearing

1шт.

36

K19169

BEARING, THRUST

BEARING - thrust

1шт.

37

K89336

SPRING

- clutch fork

2шт.

K903870

SPRING

- clutch stop

1шт.

K16569

SCREW

- 2 BA x 7/8 in. clutch stop to gearbox cover

2шт.

K623002

LOCK NUT

- Nyloc, 2 BA clutch stop to gearbox cover

2шт.

K626952

WASHER

- fibre, 3/16 in.

2шт.
