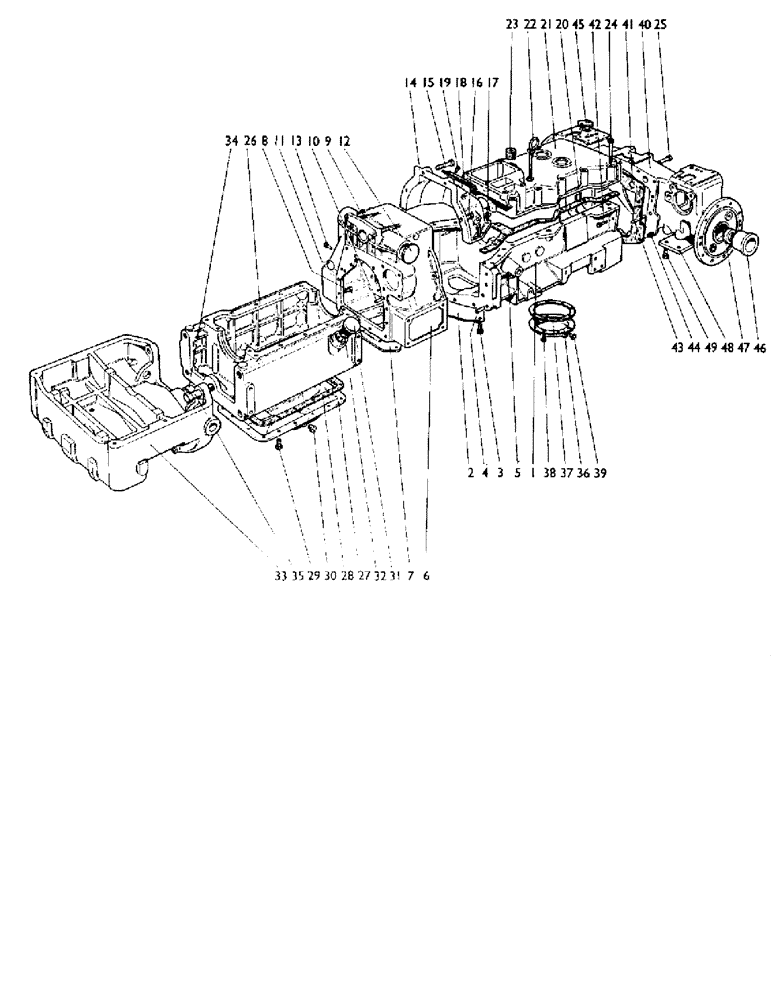

Запчасти Case IH 880B (106) - MAIN FRAME AND COVERS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
K923546
FRAME
- main, rear 549307 onward
1шт.
1
K906676
NO LONGER SERVICED
FRAME - main, rear, Serial Range: 530001-549306
1шт.
K915861
SEAL
- dirt excluder 880/B
1шт.
2
K912979
WASHER
- cover plate--clutch pit
1шт.
3
K602733
SCREW
SETSCREW - 1/4 UNC x 5/8 in.
2шт.
K19480
SPRING WASHER
- spring, 1/4 in.
2шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , ANF--Clutch cross shaft 1/4"-28 NPT x .54" lg
2шт.
4
K621826
PIN
- dowel, 5/8 x 1 1/2 in.
2шт.
880 Tractor No. 549307 onward
1шт.
4600 Tractor No. 900196 onward
1шт.
4
K30362
PIN
- dowel, 7/16 x 1 in.
2шт.
880 Tractor No. 530001 to 549306
1шт.
4600 Tractor No. 900001 to 900195
1шт.
K600612
BOLT
- 7/16 UNC x 2 3/4 in.
6шт.
5
K603006
SCREW
SETSCREW - 7/16 UNC x 1 3/8 in.
4шт.
K19483
SPRING WASHER
- spring, 7/16 in.
10шт.
6
K925102
FLYWHEEL
- housing
1шт.
880 Tractor No. 549307 onward
1шт.
4600 Tractor No. 900196 onward
1шт.
6
K910875
NO LONGER SERVICED
FLYWHEEL - housing
1шт.
7
K929040
COVER
- vent (Laycock clutch)
1шт.
7
K919567
NO LONGER SERVICED
COVER - vent (Borg and Beck clutch) (supersedes 912980)
1шт.
K602702
SCREW
SETSCREW - 1/4 UNC x 5/8 in.
2шт.
K19470
WASHER
- 1/4 in.
2шт.
8
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
SETSCREW - 3/8 UNC x 1 1/8 in. flywheel housing to engine
14шт.
9
K600405
BOLT
- 3/8 UNC x 1 5/8 in. flywheel, Serial Range: housing-engine
2шт.
K19482
SPRING WASHER
WASHER - lock, spring, 3/8 in. flywheel, Serial Range: housing-engine
16шт.
10
K12258
PIN
- dowel, 5/16 x 3/4 in. flywheel, Serial Range: housing-engine
2шт.
11
K623523
O-RING,1.802" OD x 0.143" Width
- 1 13/16 in. int. dia.--camshaft bore flywheel housing to engine
1шт.
12
K917035
COVER
- sealing disc
2шт.
13
K906963
SCREW
- peg--timing location
1шт.
14
K923269
CLUTCH
- housing (replaces 908402)
1шт.
K627933
NO LONGER SERVICED
PLUG - plastic, 3/8 in. dia.--timing-peg aperture
2шт.
15
K600638
BOLT
- 7/16 UNC x 2 1/4 in. clutch housing to flywheel housing
2шт.
16
K600634
BOLT
- 7/16 UNC 1 3/4 in. clutch housing to flywheel housing
2шт.
K19483
SPRING WASHER
- spring, 7/16 in. clutch housing to flywheel housing
4шт.
17
K600435
SPARE PART
BOLT - 3/8 UNC x 2 in., replaces 600436, clutch, Serial Range: housing-frame
6шт.
K19482
SPRING WASHER
WASHER - lock, spring, 3/8 in. clutch, Serial Range: housing-frame
6шт.
18
K89387
COVER
- clutch housing
1шт.
19
K603924
SCREW
SETSCREW - 1/4 UNC x 1/2 in. (replaces 602701)
2шт.
20
K908403
GASKET
- gearbox cover
2шт.
21
K907024
COVER - gearbox (6-speed) 880/B
1шт.
21
K908337
COVER
- gearbox (12-speed) 880/A
1шт.
21
K915633
COVER
- gearbox (6-speed) 880/A
1шт.
K83884
SLEEVE
- dipstick
1шт.
22
K904238
DIPSTICK
- gearbox
1шт.
23
K12362
PLUG
- taper, 1 in. BSP
1шт.
24
K600617
BOLT
- 7/16 UNC x 3 3/4 in. gearbox, Serial Range: cover-frame
8шт.
K19483
SPRING WASHER
- spring, 7/16 in. gearbox, Serial Range: cover-frame
12шт.
K600709
BOLT
- 7/16 UNC x 3 3/4 in.
2шт.
K626344
WASHER, LOCK
WASHER - lock, spring, 7/16 in.
2шт.
25
K600620
BOLT
- 7/16 UNC x 4 1/2 in. gearbox cover to rear axle
4шт.
25
K600669
BOLT
- 7/16 UNC x 7 3/4 in. gearbox cover to rear axle
1шт.
K19483
SPRING WASHER
- spring, 7/16 in. gearbox cover to rear axle
5шт.
26
K907580
SUMP
- frame
1шт.
27
K907339
COVER
- sump
1шт.
28
K907585
GASKET
- sump
1шт.
29
K602803
BOLT
- setscrew, 5/16 UNC x 3/4 in.
16шт.
K19481
SPRING WASHER
WASHER - lock, spring, 5/16 in.
16шт.
30
K623825
PLUG
- drain, 1/2 BSP (replaces 24850)
1шт.
K626793
WASHER
- sealing, 7/8 in. (replaces 626793)
1шт.
31
K907587
DIPSTICK
- filler cap
1шт.
32
K15279
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
- 1 3/8 in. int. dia.--filler cap
1шт.
33
K915675
EXTENSION
- front
1шт.
34
K621355
BUSHING
- trunnion pin
4шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , ANF, Trunnion pin 1/4"-28 NPT x .54" lg
2шт.
35
K601206
BOLT
- 5/8 UNC x 2 1/4 in. extension to sump frame
2шт.
35
K601218
BOLT
- 5/8 UNC x 4 1/2 in. extension to sump frame
2шт.
K19485
WASHER
- spring, 5/8 in. extension to sump frame
4шт.
K627949
NO LONGER SERVICED
PLUG - plastic, 1 1/4 in.
2шт.
K627935
PLUG
- plastic, 1/2 in.
4шт.
K627936
NO LONGER SERVICED
PLUG - plastic, 5/8 in.
12шт.
36
K920520
COVER
- rear sump 543157 onward
1шт.
36
K904222
COVER
- rear sump, Serial Range: 530001-543156
1шт.
37
K906764
GASKET
1шт.
38
9627874
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
SETSCREW - 5/16 UNC x 5/8 in.
8шт.
K19481
SPRING WASHER
WASHER - lock, spring, 5/16 in.
8шт.
39
K19581
PLUG
- drain, 1/4 BSP
1шт.
K626765
GASKET
- sealing washer, 1/2 in.
1шт.
K924784
HOUSING
- rear axle case 549307 onward
1шт.
K621826
PIN
- dowel, 5/8 x 1 1/8 in. 549307 onward
2шт.
40
K913778
NO LONGER SERVICED
AXLE - rear case, Serial Range: 533001-549306
1шт.
K15217
PIN
- dowel, 5/16 x 15/16 in. rear axle case to main frame, Serial Range: 533001-549306
2шт.
41
K926121
GASKET,0.25mm Thk
- rear axle case to main frame replaces 922557
1шт.
42
K606656
SCREW
- cap hd., 7/16 UNC x 1 1/4 in. rear axle case to main frame
2шт.
K11523
WASHER
- shakeproof, 7/16 in. rear axle case to main frame
2шт.
43
K608318
STUD
- 7/16 UNC x 2 in., replaces 608303, rear axle case to main frame
5шт.
44
K603005
SCREW
SETSCREW - 7/16 UNC x 1 1/4 in., replaces 603004, rear axle case to main frame
2шт.
K19483
SPRING WASHER
- spring, 7/16 in. rear axle case to main frame
7шт.
K623825
PLUG
- drain, 1/2 BSP--axle case (replaces 24850)
1шт.
K626793
WASHER
- sealing, 7/8 in. (replaces 626769)
1шт.
K606020
SCREW
GRUBSCREW - 5/16 UNC x 1/4 in.
1шт.
45
K910182
NO LONGER SERVICED
PLATE - cover
1шт.
K915166
GASKET
- cover to axle case
1шт.
K604089
SCREW
SETSCREW - 5/16 UNC x 5/8 in. cover to axle case
2шт.
46
K62356
HOUSING
- oil seals
2шт.
47
K13353
SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk
- oil, 1 3/4 x 3 3/16 x 1/2 in.
4шт.
48
K915131
BRACKET
- hitch, left-hand
1шт.
K915132
BRACKET
- hitch, right-hand
1шт.
49
K601410
BOLT
- 3/4 UNC x 3 in. hitch brackets to axle case
8шт.
K913121
WASHER
TABWASHER - hitch brackets to axle case
4шт.
Выбрано товаров: 103
