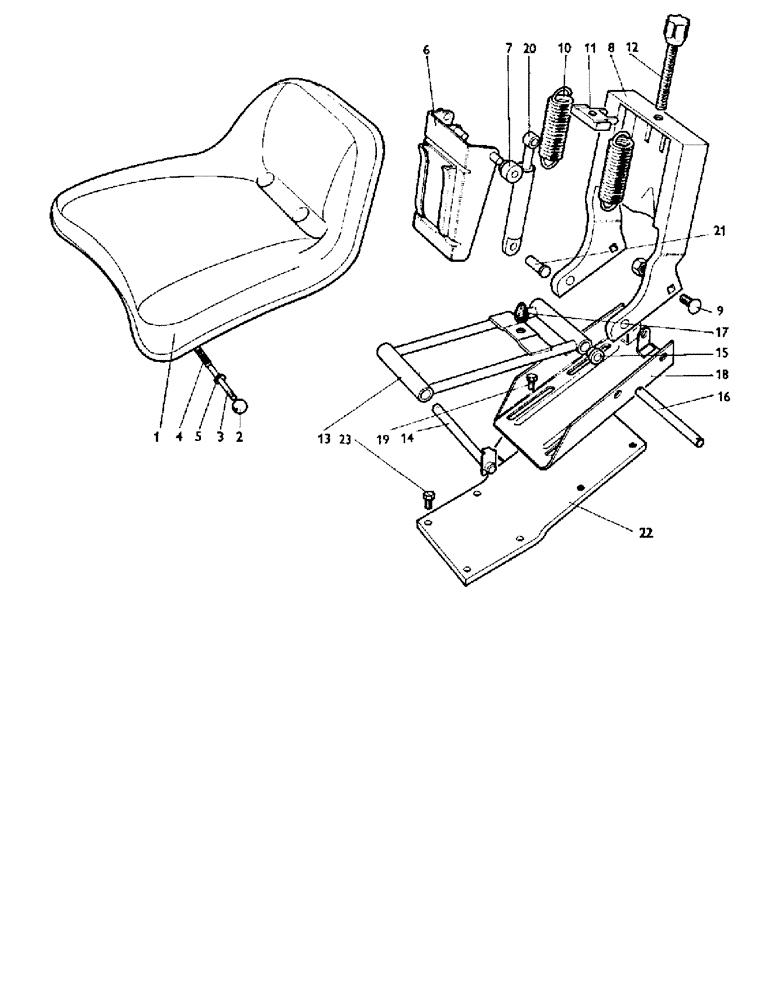

Запчасти Case IH 880B (104) - SUPER COMFORT SUSPENSION SEAT, U1204, WITH HYDRAULIC DAMPER (12) - CHASSIS

K924463

NO LONGER SERVICED

SEAT - suspension assembly

1шт.

1

K925032

SEAT ASSY.

- pan, cushion and cover 924463

1шт.

K962687

SEAT COVER

COVER - seat, cushion (supersedes 962516), 924463

1шт.

2

K962435

KNOB

- seat locking pin 924463

1шт.

3

K962440

STUD

- locking pin 924463

1шт.

4

K962439

SPRING

- 924463

1шт.

5

K621592

RING, SNAP

SNAP RING - 'E' clip, 7/32 in. 924463

1шт.

K925033

NO LONGER SERVICED

SEAT - suspension assembly 924463

1шт.

6

K962429

BEAM

- support carrier 925033 924463

1шт.

7

K962432

ROLLER

- nylon 925033 924463

2шт.

8

K962430

SPRING

- frame 925033 924463

1шт.

9

K962443

SCREW

- coach bolt, 10 mm x 1 in. frame to support 925033, 924463

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in frame to support 925033, 924463

2шт.

K962493

NUT

- 10 mm frame to support 925033 924463

2шт.

10

K962437

SPRING

- tension 925033 924463

2шт.

11

K962442

BRACKET

- spring tensioner 925033 924463

1шт.

K19474

HARDWARE

- washer, 1/2 in. 925033 924463

1шт.

K19528

PIN

- split, 3/32 x 3/4 in. 925033 924463

1шт.

12

K962436

SCREW

- tension, knob 925033 924463

1шт.

13

K962428

BEAM

- suspension 925033 924463

1шт.

14

K962426

PIN

- locating 925033 924463

1шт.

15

K962431

BUSHING

- 925033 924463

4шт.

K19540

PIN, SPLIT (COTTER)

PIN - cotter, split, 5/32 x 7/8 in. 925033 924463

1шт.

16

K962441

PIN

- pivot 925033 924463

1шт.

K962495

PIN

- dowel 925033 924463

2шт.

17

K962434

STOP

- rubber 925033 924463

1шт.

18

K962427

BRACKET

- sliding support 925033 924463

1шт.

19

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4 in. support to bracket 925033, 924463

4шт.

K19472

WASHER

- 3/8 in. support to bracket, 925033, 924463

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. support to bracket 925033, 924463

4шт.

20

K962438

DAMPER

- hydraulic 925033 924463

1шт.

21

K962433

PIN

- 925033 924463

2шт.

K962494

RING, SNAP

SNAP RING - circlip 925033 924463

2шт.

22

K925113

SEAT

- support bracket

1шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to axle frame Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. bracket to axle frame

4шт.
