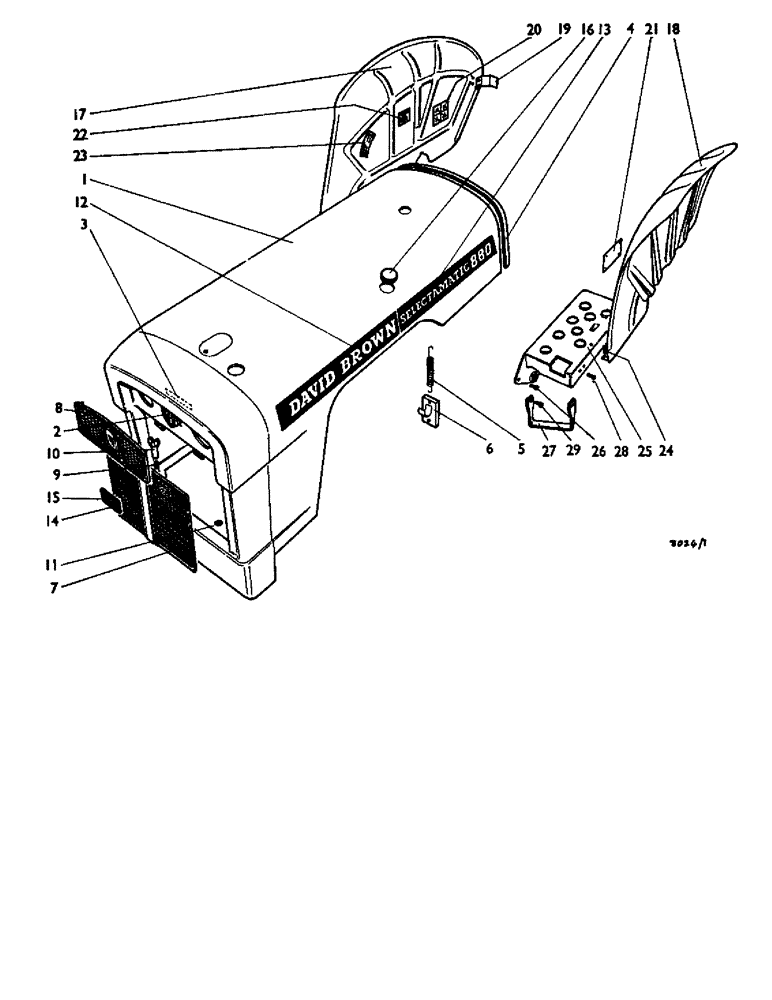

Запчасти Case IH 880B (098) - BONNET AND FENDERS (12) - CHASSIS

1

K961896

GUARD

- bonnet assembly

1шт.

2

K902243

NO LONGER SERVICED

MOTIF - 961896

1шт.

3

K916776

SPRING

- retainer--motif 961896

1шт.

K914804

PLUG

- plastic, 3/8 in. 961896

4шт.

4

K915789

BEAD

- 961896

1шт.

K624151

RIVET

- 1/8 x 1/8 in. 961896

9шт.

5

K24728

SPRING

- 961896

2шт.

6

K88680

GRIP

- finger 961896

2шт.

7

K924415

GUARD

- louvre (supersedes 915849)

1шт.

8

K915871

GRILLE

- louvre plate (side-mounted headlamps)

1шт.

K915733

BUSHING

- retaining, louvre plate

6шт.

K961943

SPARE PART

TRANSFER - bonnet nose

1шт.

9

K608125

STUD

- 5/16 UNC x 1 3/4 in.

2шт.

10

K607201

NUT

- wing, 5/16 UNC

2шт.

K626669

WASHER

- 5/16 in., special

2шт.

11

K915627

WASHER

- rubber, 5/16 in.

4шт.

K923679

NO LONGER SERVICED

TRANSFER - bonnet louvre (replaces 917085)

1шт.

12

K961939

PRODUCT GRAPHIC

- transfer, 'David Brown'--left-hand

1шт.

12

K961941

PRODUCT GRAPHIC

- transfer, 'David Brown'--right-hand

1шт.

13

K961940

PRODUCT GRAPHIC

- transfer, 'Selectamatic 880'--left-hand

1шт.

13

K961942

PRODUCT GRAPHIC

- transfer, 'Selectamatic 880'--right-hand

1шт.

14

K961946

PRODUCT GRAPHIC

- transfer, 'Livedrive' 6-speed

1шт.

14

K961947

DECAL

- transfer, 'Livedrive' 12-speed

1шт.

15

K917093

BASE

PLATE

1шт.

K14416

NUT

- push-on fix--baseplate fixing

2шт.

16

K914114

SPARE PART

INSERT - rubber, bonnet

1шт.

17

K913146

FENDER

- shell, right-hand

1шт.

17

K919068

FAN

- fender, left-hand USA only

1шт.

18

K913151

FENDER

- shell, left-hand

1шт.

18

K919070

FAN

- fender, right-hand USA only

1шт.

K627710

PLUG

- rubber

2шт.

19

K907214

NO LONGER SERVICED

BRACKET - reflector

2шт.

K66892

REFLECTOR

2шт.

K624150

RIVET

- special

2шт.

20

K916308

PRODUCT GRAPHIC

- transfer--linkage settings

1шт.

21

K913300

PLATE

- lubrication instruction

1шт.

K624153

RIVET

- 1/8 x 1/4 in.

4шт.

22

K915177

PLATE

- transfer--hydraulic lift control

1шт.

23

K962000

DECAL

- transfer--'lift--lower' (supersedes 961933)

1шт.

24

K605517

SCREW

- 1/4 UNC x 1/2, Serial Range: in.--mudguards-platforms

4шт.

K917618

NO LONGER SERVICED

FRAME - platform, right-hand--two-wheel brakes, 552136 onward

1шт.

K913903

FRAME

- platform, right-hand--two-wheel brakes, Serial Range: 544392-552135

1шт.

K972847

FRAME

- platform, right-hand--four-wheel brakes

1шт.

25

K913906

FRAME

- platform, left-hand

1шт.

26

K603003

SCREW

SETSCREW - 7/16 UNC x 1 in., Serial Range: platforms-frame

9шт.

K19483

SPRING WASHER

- spring, 7/16 in., Serial Range: platforms-frame

9шт.

27

K919521

X

STIRRUP - supersedes 915422

1шт.

28

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in. stirrup to left-hand platform, replaces 602736

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. stirrup to left-hand platform, replaces 626341

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC stirrup to left-hand platform, replaces 607043

2шт.

29

K603004

SCREW

SETSCREW - 7/16 UNC x 1 1/8 in. stirrup to left-hand platform

1шт.

K19483

SPRING WASHER

- spring, 7/16 in. stirrup to left-hand platform

1шт.

K920585

FRAME - platform, right-hand U988 (918235), safety guards (high-clearance models)

1шт.

K920586

FRAME - platform, left-hand U988 (918235), safety guards (high-clearance models)

1шт.

K919596

BRACKET

- stirrup, right-hand U988 (918235), frame platforms and safety guards (high-clearance models)

1шт.

K603052

SCREW

SETSCREW - 7/16 UNC x 1 1/4 in. stirrup to main frame--rear, U988 (918235), platforms and safety guards (high-clearance models)

1шт.

K626344

WASHER, LOCK

WASHER - lock, spring, 7/16 in stirrup to main frame--rear, U988 (918235), platforms and safety guards (high-clearance models)

1шт.

K919597

GUARD

- safety U988 (918235), frame platforms (high-clearance models)

2шт.

K600358

BOLT

- 5/16 UNC x 1 3/8 in., special--guard to stirrup and right-hand frame, U988 (918235), platforms, safety (high-clearance models)

2шт.

K65701

BUSHING

- distance piece safety guard to platform frames, U988 (918235), (high-clearance models)

5шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1 1/8 in.,special safety guard to platform frames, U988 (918235), (high-clearance models)

3шт.

K919598

BUSHING

- distance piece safety guard to mudguard, U988 (918235), frame platforms (high-clearance models)

2шт.

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. safety guard to mudguard, U988 (918235), frame platforms (high-clearance models)

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. U988 (918235), frame platforms and safety guards (high-clearance models)

7шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC U988 (918235), frame platforms and safety guards (high-clearance models)

7шт.
