Запчасти Case IH 880B (054) - HYDRAULIC LIFT PUMP, TRACTOR 540166 ONWARD (07) - HYDRAULIC SYSTEM

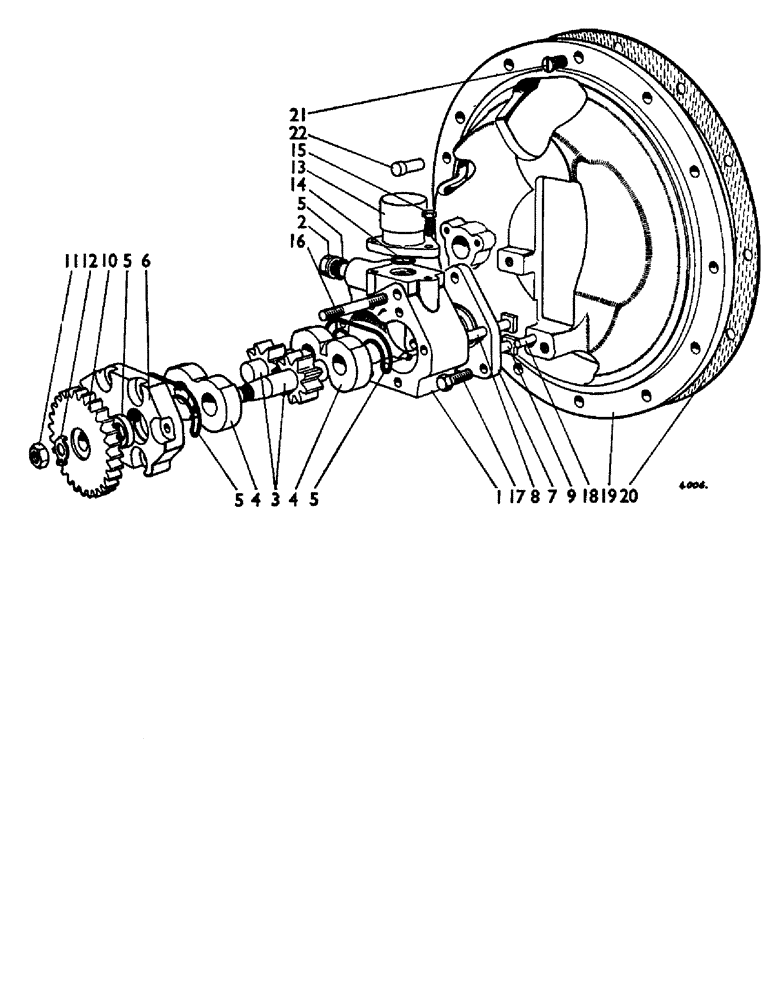

Схема запчастей Case IH 880B - (054) - HYDRAULIC LIFT PUMP, TRACTOR 540166 ONWARD (07) - HYDRAULIC SYSTEM
9
21
10
8
13
4
18
20
14
7
15
22
2
1
16
6
12
5
17
5
4
11
5
5
19
3

Артикул

Название

Примечание

Количество

K962688

PUMP

- hydraulic (complete), with helical gear, 557477 onward

1шт.

K962635R

REMAN-HYD PUMP

880A, 880B (S/N 530001 TO 563379) Both(1/65-12/71) Reman for New P/N K962688

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

K961795

NO LONGER SERVICED

PUMP - hydraulic (complete), with spur gear, Serial Range: 540166-557476

1шт.

K962635R

REMAN-HYD PUMP

880A, 880B (S/N 530001 TO 563379) Both (1/65-12/71) Reman for New P/N K961795

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

K962635

PUMP

- hydraulic only (supersedes 918995)

1шт.

K962635R

REMAN-HYD PUMP

880A, 880B (S/N 530001 TO 563379) Both(1/65-12/71)

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

K962133

PLUG - valve chamber 962635

1шт.

3

K962128

GEAR

- rotors (pair) (includes 19604, 962635 617054 and 6266382)

1шт.

4

K962125

BEARING

- 962635

2шт.

5

K962136

GASKET KIT

KIT - gasket, seal pack (1 oil seal, 3 O-rings) 962635

1шт.

6

K962132

COVER

- end plate 962635

1шт.

7

K962129

FLANGE

- 962635

1шт.

8

K962130

BOLT

- 3/8 UNF, special 962635

4шт.

9

K962131

BOLT

- dowel, 3/8 UNF 962635

2шт.

K617002

NUT

- 3/8 UNF 962635

6шт.

K19483

SPRING WASHER

- spring, 3/8 in. 962635

6шт.

10

K927097

GEAR

- driven (36 helical teeth)

1шт.

10

K914466

GEAR

- driven (37 spur teeth)

1шт.

K19604

KEY

- Woodruff No. 405 (replaces 11262)

1шт.

11

425-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2 UNF (Replaces 617053)

1шт.

12

K626382

WASHER

TABWASHER - (replaces 626380)

1шт.

13

K919372

VALVE

- relief (pre-set assembly)

1шт.

14

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 in. int. dia. valve to pump

1шт.

15

K19222

BOLT

- 5/16 BSF x 1 in., Serial Range: valve-pump

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: valve-pump

3шт.

16

K608221

STUD

- 3/8 UNC x 3 11/16 in. pump to back plate

1шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. pump to back plate

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. pump to back plate

3шт.

280136

NUT,3/8"-16, G8

Pump to back plate 3/8"-16, G8

1шт.

18

K24853

PIN

- dowel, 1/4 x 11/16 in. pump to back plate

2шт.

19

K905667

SUPPORT

- plate

1шт.

20

K89175

GASKET

- plate to rear axle case and PTO unit

2шт.

21

K605157

SCREW

- 7/16 UNC x 1 1/8 in.

1шт.

22

K24827

PIN

- headed dowel, 7/16 x 1 3/4 in.

1шт.

Выбрано товаров: 37
