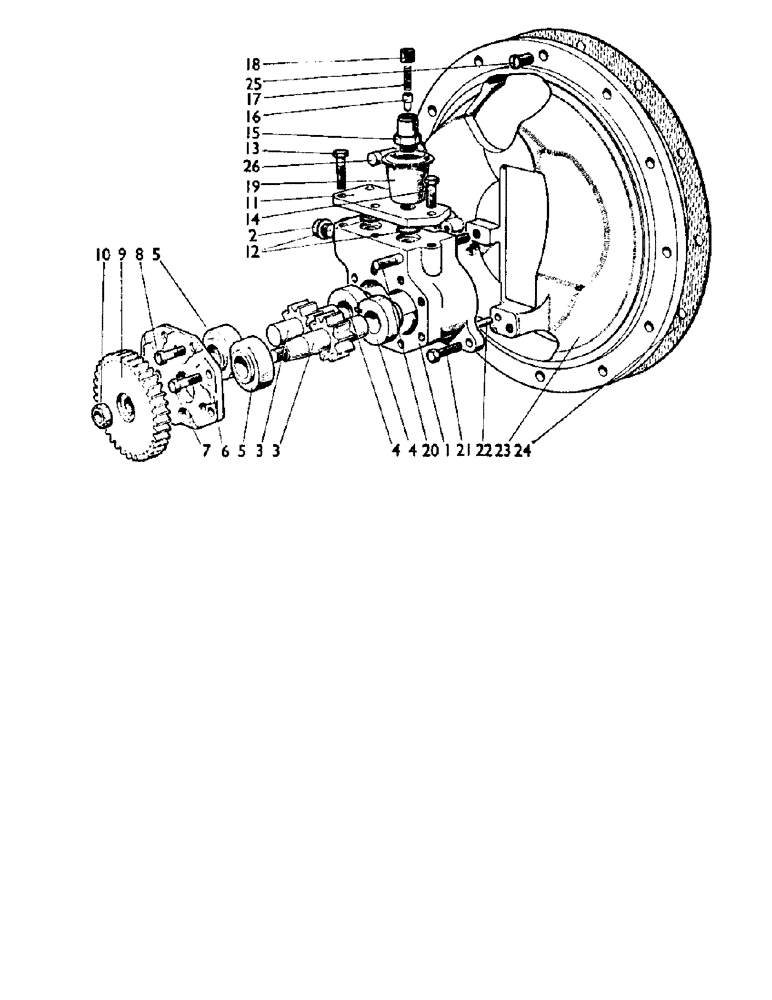

Запчасти Case IH 880B (053) - HYDRAULIC LIFT PUMP, TRACTOR 530001 TO 540165 (07) - HYDRAULIC SYSTEM

K917541

NO LONGER SERVICED

PUMP - hydraulic only (supersedes 913394), Serial Range: 534055-540165

1шт.

K917866

PUMP

- body 917541, Serial Range: 534055-540165

1шт.

K961809

PLUG

- body 917541, Serial Range: 534055-540165

1шт.

K961810

WASHER

- sealing 917541, Serial Range: 534055-540165

1шт.

K962046

NO LONGER SERVICED

ROTOR - pack 917541, Serial Range: 534055-540165

1шт.

K962174

NO LONGER SERVICED

BUSH - (pair) 962046 917541, Serial Range: 534055-540165

1шт.

K917869

BUSHING

- large, (pair) 962046 917541, Serial Range: 534055-540165

1шт.

K917870

RING

O-RING - special 962046 917541, Serial Range: 534055-540165

2шт.

K917872

PLATE - end 917541, Serial Range: 534055-540165

1шт.

K961795

NO LONGER SERVICED

PUMP - hydraulic (complete)

1шт.

K962635R

REMAN-HYD PUMP

880A, 880B Both SELECTAMATIC TRACTOR (S/N 530001 TO 563379) (1/65-12/71) Reman for New P/N K961795

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

K913394

NO LONGER SERVICED

PUMP - hydraulic only, Serial Range: 530001-534054

1шт.

1

K903208

PUMP

- body 913394, Serial Range: 530001-534054

1шт.

2

K961809

PLUG

- 913394, Serial Range: 530001-534054

1шт.

K961810

WASHER

- sealing 913394, Serial Range: 530001-534054

1шт.

3

K961694

ROTOR

- pack 913394, Serial Range: 530001-534054

1шт.

4

K961728

ROTOR

- bush (pair) 961694 913394, Serial Range: 530001-534054

1шт.

5

K961729

ROTOR

- bush (pair) 961694 913394, Serial Range: 530001-534054

1шт.

K960648

O-RING

- special 961694 913394, Serial Range: 530001-534054

2шт.

6

K903209

PLATE

- end 913394, Serial Range: 530001-534054

1шт.

7

K612905

BOLT

- 3/8 UNF x 1 1/8 in.

6шт.

8

K612904

NO LONGER SERVICED

BOLT - 3/8 UNF x 1 in.

2шт.

9

K913380

GEAR

- driven

1шт.

K11262

KEY

- Woodruff No. 505

1шт.

10

425-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2 UNF

1шт.

K913552

WASHER

- tab

1шт.

11

K909646

COVER

- plate (913394 pump)

1шт.

11

K917543

X

COVER - plate (917541 pump)

1шт.

12

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 in. int. dia.

2шт.

13

K14968

NO LONGER SERVICED

BOLT - 5/16 BSF x 2 1/8 in.

2шт.

14

K19223

NO LONGER SERVICED

BOLT - 5/16 BSF x 1 1/8 in.

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

5шт.

K913449

VALVE

- relief assembly

1шт.

15

K906754

VALVE

- body 913449

1шт.

16

K909647

PLUNGER

- 913449

1шт.

17

K625154

SPRING - 913449

1шт.

18

K909648

SCREW

- adjusting 913449

1шт.

19

K914440

CUP

1шт.

K626780

WASHER

- sealing, 11/16 in.

2шт.

20

K608221

STUD

- 3/8 UNC x 3 11/16 in. pump to back plate

2шт.

21

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. pump to back plate

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. pump to back plate

3шт.

280136

NUT,3/8"-16, G8

Pump to back plate 3/8"-16, G8

1шт.

22

K24853

PIN

- dowel, 1/4 x 11/16 in. pump to back plate

2шт.

23

K905667

SUPPORT

- plate

1шт.

24

K922591

GASKET

- plate to rear axle case and, supersedes 89175 PTO unit

2шт.

25

K605157

SCREW

- 7/16 UNC x 1 1/8 in.

1шт.

26

K24827

PIN

- headed dowel, 7/16 x 1 3/4 in.

1шт.
