Запчасти Case IH 880B (052) - DUMP VALVE (07) - HYDRAULIC SYSTEM

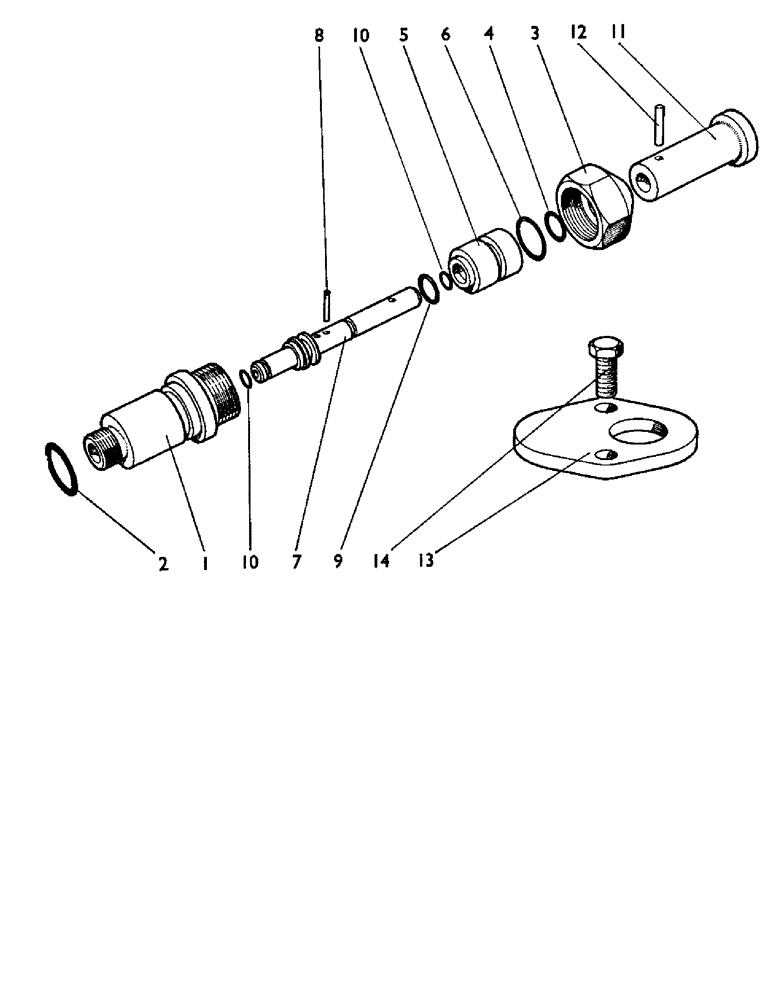

Схема запчастей Case IH 880B - (052) - DUMP VALVE (07) - HYDRAULIC SYSTEM
11
3
12
5
10
4
1
8
13
7
10
9
2
6
14

Артикул

Название

Примечание

Количество

K918195

NO LONGER SERVICED

VALVE - dump, U939, includes: parts listed below

1шт.

K919777

NO LONGER SERVICED

VALVE - dump assembly, includes: Ref. 1 thru 12

1шт.

1

K918986

SPARE PART

BODY

1шт.

2

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

O-RING - 3/4 in. int. dia.

1шт.

3

K918983

NUT

NUT - 1 in. UNF, Special

1шт.

4

K24554

O-RING

O-RING - 3/8 in. int. dia.

1шт.

5

K918985

BUSHING

BUSHING

1шт.

6

K31682

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING - 9/16 in. int. dia.

1шт.

7

K962194

SET OF PARTS

SET OF PARTS - plunger -- supersedes 918987

1шт.

8

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , Mills 1/8" x 1/2", Type D

1шт.

9

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

O-RING - 3/8 in. int. dia.

1шт.

10

K14658

O-RING,0.07" Thk x 0.239" ID

O-RING - 1/4 in. int. dia.

2шт.

11

K919666

KNOB

KNOB

1шт.

12

K623724

PIN

PIN - Mills, 1/8 in. x 5/8 in.

1шт.

13

K929465

COVER

COVER - plate, rear axle -- Supersedes 918984

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 x 1-1/8 in.

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

K962584

GASKET KIT

KIT - gasket, seal pack

1шт.

Выбрано товаров: 18
