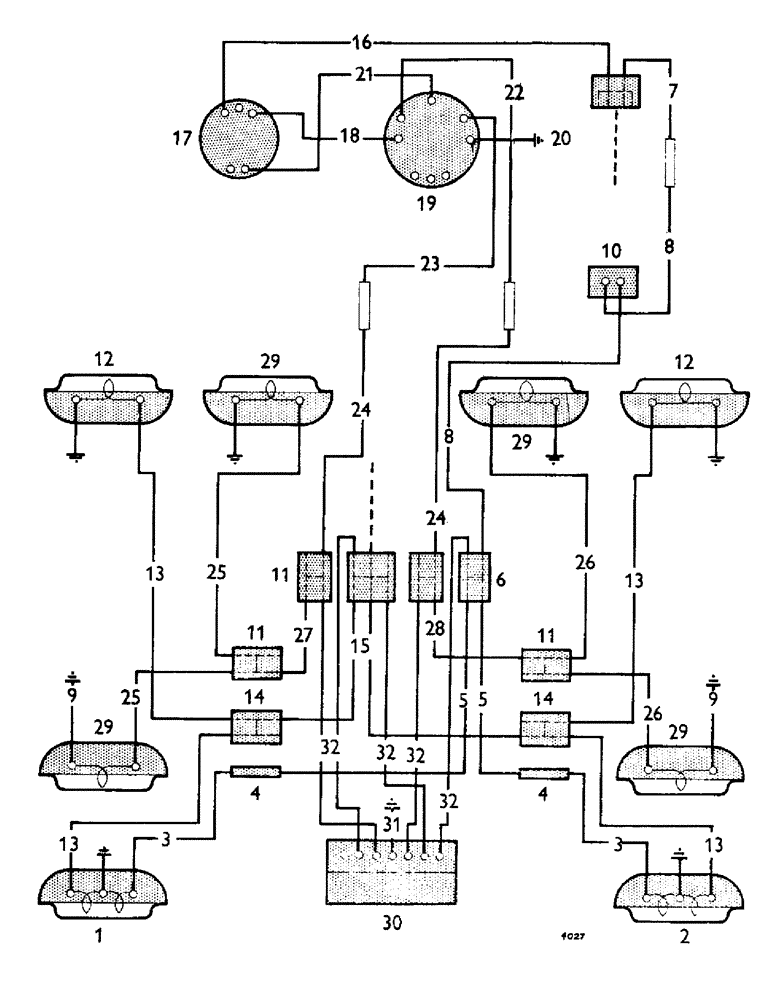

Запчасти Case IH 880B (122) - SIDE AND REAR LAMPS, FULL FENDERS (06) - ELECTRICAL SYSTEMS

1

K923783

TAIL LAMP - stop/rear, left-hand, U1233 (925521) (side and stop/rear)

1шт.

2

K923782

HEADLIGHT

- stop/rear lamp, right-hand, U1233 (925521) (side and stop/rear lamps)

1шт.

3

K925290

STOP

- lead--connector to lamp, U1233 (925521) (side/rear lamps)

2шт.

4

K67916

ELEC CONNECTOR

CONNECTOR - single, U1233 (925521) (side and stop/rear lamps)

2шт.

5

K925284

ELECTRICAL WIRE

WIRE - lead--stop lamp, connector to connector, left-hand, U1233 (925521) (side and stop/rear lamps)

2шт.

K925285

ELECTRICAL WIRE

WIRE - lead--stop lamp, right-hand, U1233 (925521) (side and stop/rear lamps)

1шт.

6

K86230

CONNECTOR, ELEC

CONNECTOR - double, U1233 (925521) (side and stop/rear lamps)

1шт.

7

K923642

SPARE PART

LEAD - ignition switch to connector, U1233 (925521) (side and stop/rear lamps)

1шт.

8

K923599

NO LONGER SERVICED

LEAD - stop lamp switch to connector, U1233 (925521) (side and stop/rear lamps)

1шт.

9

K908902

WIRE

LEAD - stop lamps to earth, U1233 (925521) (side and stop/rear lamps)

4шт.

K11519

WASHER

- lock, 3/16 in., U1233 (925521) (side and stop/rear lamps)

4шт.

K617080

NUT

- No. 10 UNF, U1233 (925521) (side and stop/rear lamps)

4шт.

10

K917301

LIGHT SWITCH

SWITCH - stop lamp, U1233 (925521) (side and stop/rear lamps)

1шт.

K10863

SCREW - 4 BA x 3/8 in., U1233 (925521) (side and stop/rear lamps)

2шт.

K19487

WASHER

- spring, 1/8 in., U1233 (925521) (side and stop/rear lamps)

2шт.

K19418

NUT - 4 BA, U1233 (925521) (side and stop/rear lamps)

2шт.

K925310

BRACKET

- switch, U1233 (925521) (side and stop/rear lamps)

1шт.

K624718

SCREW

- 5 BA x 3/4 in. switch to frame platform, U1233 (925521) (side and stop/rear lamps)

2шт.

K19419

NUT

- 5 BA switch to frame platform, U1233 (925521) (side and stop/rear lamps)

2шт.

K19487

WASHER

- spring, 1/8 in. switch to frame platform, U1233 (925521) (side and stop/rear lamps)

2шт.

K621633

CABLE

- clip, U1233 (925521) (side and stop/rear lamps)

2шт.

11

K86230

CONNECTOR, ELEC

CONNECTOR - double, U1233 (925521) (side and stop/rear lamps)

4шт.

12

K921567

INDICATOR LIGHT

LIGHT - indicator, side lamp, U1233 (925521) (side and stop/rear lamps)

2шт.

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 in. side lamps to fenders, U1233 (925521) (side and stop/rear lamps)

8шт.

K626340

RING

- spring washer, 3/16 in. side lamps to fenders, U1233 (925521) (side and stop/rear lamps)

8шт.

13

K925291

LACING, BELT

LACING - belt, lead--side and stop lamps, U1233 (925521) (side and stop/rear lamps)

4шт.

14

K86230

CONNECTOR, ELEC

CONNECTOR - double, U1233 (925521) (side and stop/rear lamps)

2шт.

15

K925283

NO LONGER SERVICED

LEAD - side, left-hand, U1233 (925521) (side and stop/rear lamps)

1шт.

15

K925197

NO LONGER SERVICED

LEAD - side, right-hand, U1233 (925521) (side and stop/rear lamps)

1шт.

K925169

CABLE

- guard, U1233 (925521) (side and stop/rear lamps)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- fenders, U1233 (925521) (side and stop/rear lamps)

10шт.

K627703

GROMMET - fenders, U1233 (925521) (side and stop/rear lamps)

4шт.

K627704

GROMMET

- fenders, U1233 (925521) (side and stop/rear lamps)

4шт.

K913554

NO LONGER SERVICED

REFLECTOR - U1233 (925521) (side and stop/rear lamps)

2шт.

K916304

BRACKET

- left-hand, U1233 (925521) (side and stop/rear lamps)

1шт.

K916305

BRACKET

- right-hand, U1233 (925521) (side and stop/rear lamps)

1шт.

K603924

SCREW

- 1/4 UNC x 1/2 in. bracket to fenders, U1233 (925521) (side and stop/rear lamps)

4шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. bracket to fenders, U1233 (925521) (side and stop/rear lamps)

4шт.

K607043

NUT

- 1/4 UNC bracket to fenders, U1233 (925521) (side and stop/rear lamps)

4шт.

K921566

LAMPS - side and rear -- full fenders (tractor, Serial Range: 544392-552135)

2шт.

K962377

LENS

- red, side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

2шт.

K921567

INDICATOR LIGHT

LIGHT - indicator, side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

2шт.

K962376

LENS

- clear, side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

2шт.

K614956

SCREW - No. 10 UNF x 2 1/4 in.--fixing, side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

4шт.

K614950

SCREW

- No. 10 UNF x 1 1/4 in.--side lamp fixing, rear, full fenders (tractor, Serial Range: 544392-552135)

4шт.

K617080

NUT

- No. 10 UNF (replaces 617049), side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

8шт.

K19488

SPRING WASHER

- spring 3/16 in., side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

8шт.

K24589

GROMMET

- 5/8 in., side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

2шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- 3/8 in., side and rear lamps -- full fenders (tractor 544392 to 552135)

2шт.

K908902

WIRE

LEAD - earth, side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

4шт.

K917359

NO LONGER SERVICED

LEAD - three-way connector to two-way connector, side and rear lamps -- full fenders (tractor, Serial Range: 544392-552135)

2шт.

K921575

NO LONGER SERVICED

LEAD - two-way connector to side lamps, rear, full fenders (tractor, Serial Range: 544392-552135)

2шт.

K921576

NO LONGER SERVICED

LEAD - two-way connector to rear lamps, side, full fenders (tractor, Serial Range: 544392-552135)

2шт.

16

K926316

NO LONGER SERVICED

LEAD - four-way connector to valve, U1234 (925522) (flashing direction indicators), lamps, (optional equipment)

1шт.

17

K913564

INDICATOR LIGHT

LIGHT - valve--flashing indicators U1234 (925522) (flashing direction indicators), lamps, (optional equipment)

1шт.

K605633

SCREW

- 1/4 UNC x 1/2 in. valve to instrument panel, U1234 (925522), (flashing direction instrument panel indicators), lamps, (optional equipment)

1шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. valve to instrument panel, U1234 (925522) (flashing direction instrument panel indicators), lamps, (optional equipment)

1шт.

K607043

NUT

- 1/4 UNC valve to instrument panel, U1234 (925522), (flashing direction panel indicators), lamps, (optional equipment)

1шт.

18

K926317

VALVE

- lead-- switch, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

19

K913565

LIGHT SWITCH

SWITCH - U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

BULB - 12 volt, 2 watt, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

20

K923592

ELECTRICAL WIRE

WIRE - lead--switch to earth, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

21

K925927

LEAD - valve to switch, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

22

K925295

SWITCH

- lead connector, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

23

K925298

SWITCH

- lead- connector, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

24

K925293

ELECTRICAL WIRE

WIRE - lead-connector, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

1шт.

25

K925288

LAMP

- lead--connector, left-hand, U1234 (925522) , (flashing direction indicators), lamps, (optional equipment)

2шт.

26

K925289

LAMP

- lead--connector, right-hand, U1234 (925522) (flashing direction indicators), lamps, (optional equipment)

2шт.

27

K925286

ELECTRICAL WIRE

WIRE - lead--lamp, left-hand, U1234 (925522), (flashing direction indicators), (optional equipment)

1шт.

28

K925287

ELECTRICAL WIRE

WIRE - lead--lamp, right-hand, U1234 (925522), (flashing direction indicators), (optional equipment)

1шт.

29

K925294

LAMP

- flashing indicator lamp U1234 (925522) (flashing indicators), (optional equipment)

4шт.

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 in. U1234 (925522), (flashing direction indicators), (optional equipment)

8шт.

K626340

RING

- spring washer, 3/16 in, U1234 (925522), (flashing direction indicators), lamps, (optional equipment)

8шт.

K908902

WIRE

LEAD - earth lamps to fenders U1234 (925522), (flashing direction indicators), (optional equipment)

4шт.

K11519

WASHER

LOCKWASHER - 3/16 in. lamps to U1234 (925522), (flashing direction fenders indicators), (optional equipment)

4шт.

30

K913566

POINT

- socket--seven-point U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

K928546

PLATE

- socket U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

K614950

SCREW

- No. 10 UNF x 1 1/4 in. socket to bracket, U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

3шт.

K626340

RING

- spring washer, 3/16 in. socket to bracket, U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

3шт.

K617080

NUT

- No. 10 UNF socket to bracket U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

3шт.

31

K923592

ELECTRICAL WIRE

WIRE - lead--socket to earth U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

K627704

GROMMET

- 1 in. dia. U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

32

K925489

HARNESS - connector to socket U1244 (925538) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.
