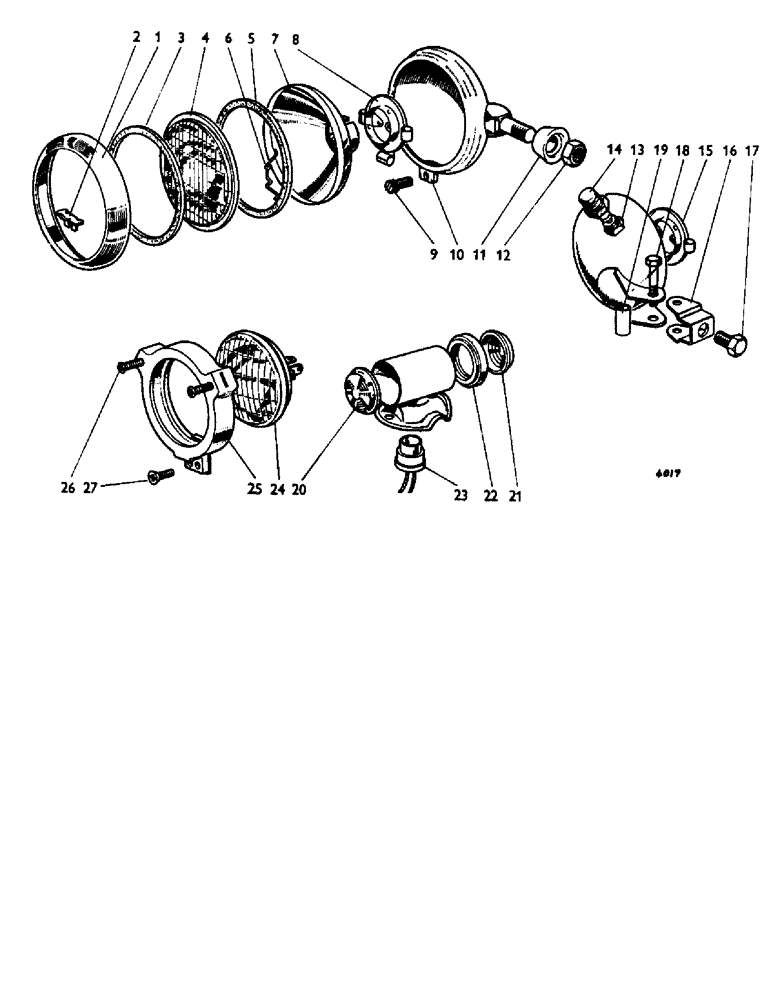

Запчасти Case IH 880B (120) - LAMP ASSEMBLIES (06) - ELECTRICAL SYSTEMS

K921082

LAMP

HEADLAMP - assembly, left-hand (supersedes 915865)

1шт.

K921083

LAMP

HEADLAMP - assembly, right-hand (supersedes 915866)

1шт.

1

K962349

BEZEL

- rim 921082 921083

1шт.

2

K960879

BEZEL

- rim catch 921082 921083

1шт.

3

K960898

GASKET

- lens to rim 921082 921083

1шт.

4

K960892

LENS

- 921082 921083

1шт.

5

K960874

GASKET

- lens to reflector 921082 921083

1шт.

6

K960876

SPRING

- retainer 921082 921083

4шт.

7

K961615

NO LONGER SERVICED

REFLECTOR - 921082 921083

1шт.

8

K961611

NO LONGER SERVICED

PIECE - centre, contacts 921082 921083

1шт.

K960873

GROUND STRAP

STRAP - ground, lead--earth 921082 921083

1шт.

9

K960880

SCREW

- rim retaining 921082 921083

1шт.

10

K961612

HOUSING

- screw catch--rim retaining 921082 921083

1шт.

11

K961613

PEDESTAL

- 921082 921083

1шт.

12

K961614

NUT

- 9/16 in. 921082 921083

1шт.

K921081

LAMP

FLOODLAMP - rear assembly (supersedes 914107)

1шт.

13

K962620

LIGHT SWITCH

SWITCH - (supersedes 961080) 921081

1шт.

K961082

NUT

- switch 921081

1шт.

14

K962621

COVER ASSY

- rubber switch (supersedes, 921081 961081)

1шт.

15

K961616

NO LONGER SERVICED

PIECE - centre, contacts 921081

1шт.

K961771

NO LONGER SERVICED

LEAD - feed 921081

1шт.

1

K962349

BEZEL

- rim 921081

1шт.

2

K960879

BEZEL

- rim catch 921081

1шт.

3

K960898

GASKET

- lens to rim 921081

1шт.

4

K962334

LENS

- 921081

1шт.

5

K960874

GASKET

- lens to reflector 921081

1шт.

6

K960876

SPRING

- retainer 921081

4шт.

7

K961615

NO LONGER SERVICED

REFLECTOR - 921081

1шт.

9

K960880

SCREW

- rim retaining 921081

1шт.

10

K961612

HOUSING

- screw catch--rim retaining 921081

1шт.

16

K910853

BRACKET - 921081

1шт.

18

K610050

BOLT

- 1/4 UNF x 2 1/4 in. 921081

1шт.

K626552

WASHER

- shakeproof, 1/4 in. 921081

2шт.

19

K912300

COLLAR

- distance piece 921081

1шт.

K626704

WASHER - spring, 1/4 in.--double coil 921081

1шт.

K607215

NUT

- wing, 1/4 UNF 921081

1шт.

17

K603141

SCREW

SETSCREW - 1/2 UNC x 1 1/4 in., Serial Range: bracket-mudguard

1шт.

K627067

BUSHING

- distance piece, Serial Range: bracket-mudguard

1шт.

K626510

WASHER

- shakeproof, 1/2 in., Serial Range: bracket-mudguard

2шт.

280431

NUT,1/2"-13, G5

Bracket to mudguard 1/2"-13, G5

1шт.

K921080

STOP LIGHT

LIGHT - stop, side/rear lamp, left-hand (supersedes 914109)

1шт.

K921079

LAMP

- side/rear, right-hand (supersedes 914108)

1шт.

20

K960887

LENS

- clear 921080 921076

1шт.

21

K960888

LENS

- red 921080 921076

1шт.

22

K960889

MOUNTING PARTS

- lens, black rubber 921080 921076

2шт.

23

K961772

BULB

- holder 921080 921076

1шт.

K961827

MOUNTING - rubber, bulb holder 921080 921076

1шт.

K915874

HEADLAMP

- assembly

2шт.

24

K962146

BEAM

- sealed unit, 12 volt, 40/40, 915874 watt

1шт.

25

K961759

MOUNTING PARTS

- rubber 915874

1шт.

K915141

LAMP

HEADLAMP - assembly

2шт.

K962145

BEAM

- sealed unit, 12 volt, 35 watt 915141

1шт.

K961759

MOUNTING PARTS

- rubber 915141

1шт.

26

K962345

KIT

- mounting (2 spire nuts, 2, replaces 962169 screws, 2 springs and bracket)

2шт.

27

K604041

SCREW

- No. 8 UNC x 3/4 in.

4шт.

K607040

NUT

- No. 8 UNC

4шт.

K626340

RING

- spring washer, 3/16 in.

4шт.
