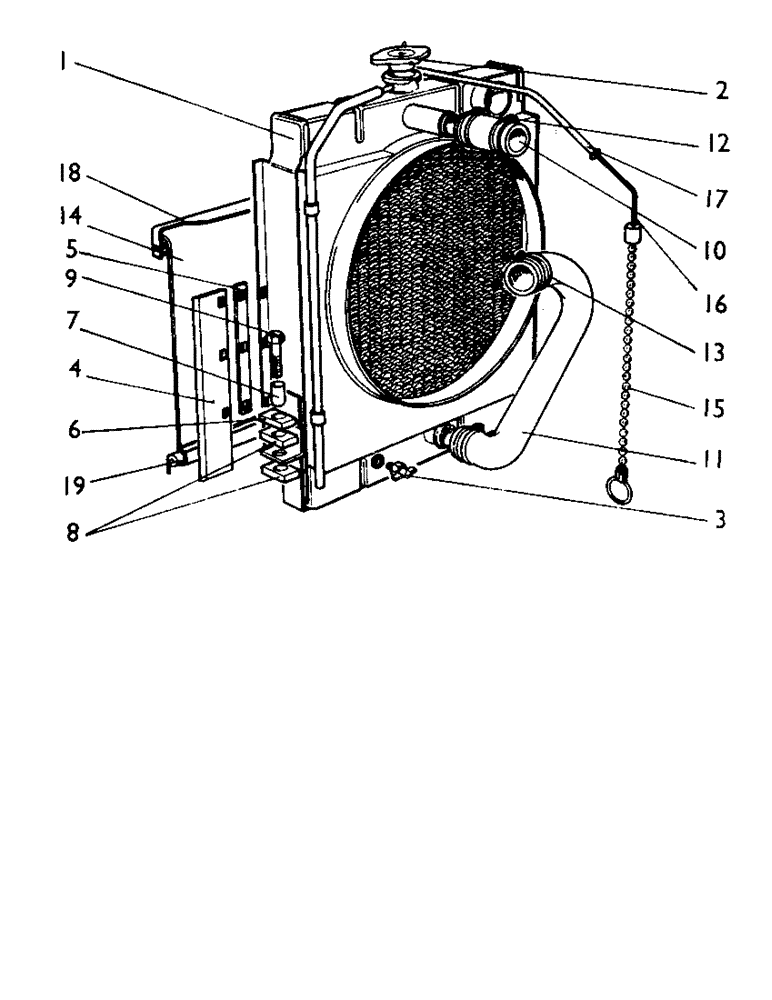

Запчасти Case IH 880B (017) - RADIATOR AND BLIND (01) - ENGINE

1

K922733

RADIATOR

- 7 gills/in. 550032 onward

1шт.

1

K922734

RADIATOR

- 7 gills/in. (front drive) 550032 onward

1шт.

K922544

CAP

- filler 550032 onward

1шт.

2

K916598

SPARE PART

RADIATOR - 80 mm block, Serial Range: 530001-550031

1шт.

2

K916501

X

RADIATOR - 80 mm block (front drive), Serial Range: 530001-550031

1шт.

2

K916597

RADIATOR

- 50 mm block, Serial Range: 530001-550031

1шт.

K906196

CAP

- filler

1шт.

3

K622060

PLUG, DRAIN

PLUG - drain tap

1шт.

K19501

WASHER

WASHER - fibre, 1/2 in.

1шт.

4

K920354

LACING, BELT

LACING - belt, sealing strip--side

2шт.

5

K920357

STRIP

- clamping

2шт.

5

K908822

NO LONGER SERVICED

PLATE - clamping, Serial Range: 530001-550031

2шт.

K624153

RIVET

- 1/8 x 1/4 in

12шт.

6

K926609

SUPPORT

- plate

2шт.

7

K908823

TUBE,0.562" OD x 0.875" L

- distance

2шт.

8

K921836

WEDGE

- foot packing 550032 onward

4шт.

8

K908824

NO LONGER SERVICED

FOOT - packing, Serial Range: 530001-550031

4шт.

9

K600406

BOLT

- 3/8 UNC x 1 3/4 in.

2шт.

K19482

SPRING WASHER

spring, 3/8 in.

2шт.

10

K37575

HOSE

- radiator inlet

1шт.

11

K915206

HOSE

OUTLET - hose--radiator (used with 922733), 550032 onward

1шт.

11

K921853

OUTLET

- hose--radiator (used with 922734), 550032 onward

1шт.

11

K912039

HOSE

- radiator outlet (used with 916597/8), Serial Range: 530001-550031

1шт.

11

K915206

HOSE

- radiator outlet (used with 916501), 530001 to 550031 (REPLACES 915206)

1шт.

12

K13078

BRACKET

- hose clip, 1 7/8 in. dia.

3шт.

13

K13079

NO LONGER SERVICED

HOSE - clip, 2 in. dia.

1шт.

14

K912318

RADIATOR

- blind U1213 (922269), 550032 onward (optional equipment)

1шт.

15

K913185

BALL

- chain U1213 (922269), 550032 onward (optional equipment)

1шт.

16

K924668

SPARE PART

CORD - control U1213 (922269), 550032 onward (optional equipment)

1шт.

17

K912910

TUBE

- control cord U1213 (922269), 550032 onward (optional equipment)

1шт.

18

K912319

ROD

- pull U1213 (922269) 550032 onward, (optional equipment)

1шт.

19

K921739

ROD

- anchor U1213 (922269), 550032 onward (optional equipment)

1шт.

K19520

PIN

- split, 1/16 x 3/8 in. U1213, 550032 onward (922269) (optional equipment)

2шт.

K908846

COVER

- radiator blind U580 (911134), 530001 to 550031 (optional equipment)

1шт.

K913185

BALL

- chain U580 (911134), 530001 to 550031 (optional equipment)

1шт.

K908857

NO LONGER SERVICED

CORD - control U580 (911134), 530001 to 550031 (optional equipment)

1шт.

K916960

NO LONGER SERVICED

TUBE - control cord U580 (911134), 530001 to 550031 (optional equipment)

1шт.

K64925

ROD

- pull U580 (911134), 530001 to 550031 (optional equipment)

1шт.

K908859

ANCHOR - U580 (911134), 530001 to 550031 (optional equipment)

1шт.
