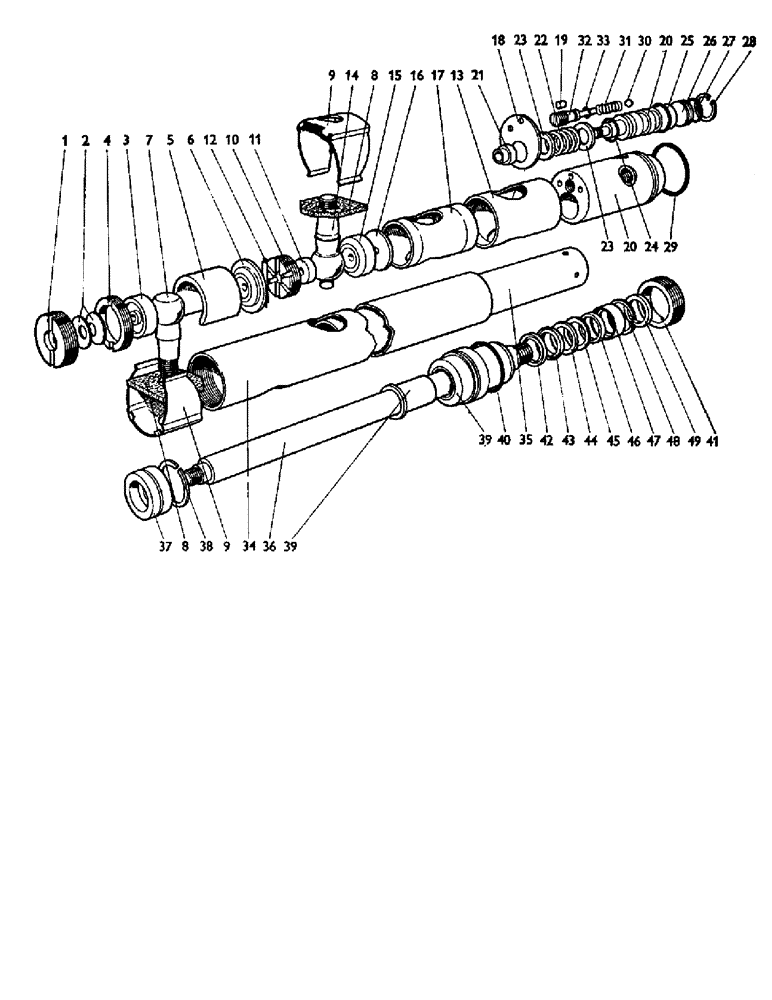

Запчасти Case IH 880B (090) - HYDRAULIC RAM, PART OF U599, POWER-ASSISTED STEERING Steering & Front Axle
№
Артикул
Название
Примечание
Количество
K915915
CYLINDER
- hydraulic ram assembly
1шт.
1
K960796
COVER
- end
1шт.
K960797
NO LONGER SERVICED
NIPPLE - grease, 1/4 ANF--end cover
1шт.
K960799
PIN
- split, 1/8 x 1/2 in.
1шт.
2
K960785
DISC
- Belleville washer, 7/16 in.
4шт.
3
K960794
BALL
- cup
1шт.
4
K960795
LOCK
- ring
1шт.
5
K960793
BUSHING
- spacer--ball cups
1шт.
6
K960791
BALL
- cup
1шт.
7
K960792
BALL
- pin--steering lever
1шт.
8
K960801
PAD
- grease retainer
2шт.
9
K960800
RING
- spring cover
2шт.
10
K961987
HOLDER
- ball cup
1шт.
11
K960858
BALL
- cup--input
1шт.
12
K960860
SPRING
- clip--ball cup locking
1шт.
13
K960790
SLEEVE
- locating
1шт.
14
K960787
BALL
- pin--drag link
1шт.
15
K960786
BALL
- cup
1шт.
16
K960784
WASHER
- backing
1шт.
17
K961986
SLEEVE
- operating
1шт.
18
K960779
BUSHING
- spacer
1шт.
19
K960773
PIN
- locating
2шт.
K960782
NUT - 5/16 BSF, special--valve spool
1шт.
K960861
NO LONGER SERVICED
PIN - split, 3/64 x 3/4 in.--spool nut
1шт.
K960781
WASHER
- hardened, 5/16 in., special--spool
1шт.
20
K961997
LOCK VALVE
VALVE LOCK - body and spool (not supplied separately)
1шт.
K962245
CAP
- grease nipple, angled, 1/4 ANF--valve body
1шт.
21
K961985
COLLAR
- spool
1шт.
22
K962057
VALVE SPRING
SPRING - valve, reaction
1шт.
23
K962244
WASHER
- reaction
2шт.
24
K961982
O-RING
O-RING - 21/32 int. dia.--spool
1шт.
25
K960768
O-RING
- 7/8 in. int. dia.--valve body
1шт.
26
K960770
COVER
- end, valve body
1шт.
27
K960769
O-RING
- 11/16 in. int. dia.--end cover
1шт.
28
K960771
NO LONGER SERVICED
CIRCLIP - valve body
1шт.
29
K960806
O-RING
- 1 3/4 in. int. dia.--valve body
1шт.
30
K960765
BALL
- relief valve
1шт.
31
K960766
SPRING
- relief valve
1шт.
32
K961980
PLUG - valve housing
1шт.
33
K961981
RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro
O-RING - 3/16 in. int. dia.--plug
1шт.
K960825
NUT
- 5/8 UNF--ball pin
2шт.
34
K960798
TUBE
- outer
1шт.
35
K960826
TUBE
- inner
1шт.
36
K960827
PISTON
- rod and anchor ball (not supplied separately)
1шт.
37
K960816
PISTON
1шт.
38
K960817
PISTON
- ring
1шт.
K960819
NUT - 1/2 UNF--piston rod
1шт.
K960818
NO LONGER SERVICED
WASHER - 1/2 in.--piston rod
1шт.
K960820
PIN
- split, 3/32 x 1 in.--piston nut
1шт.
39
K960803
KIT
- bearing and bush (not supplied separately)
1шт.
40
K960806
O-RING
- 1 3/4 in. int. dia.--bearing
1шт.
41
K960807
HOUSING
- locking ring
1шт.
42
K961990
SEAL
- spreader
1шт.
43
K960809
SHAFT SEAL
GLAND - ring
1шт.
44
K960810
SEALING WASHER
- vellumoid washer
1шт.
45
K960811
WASHER
- metal, 7/8 in.
1шт.
46
K960862
SCRAPER
- ring
1шт.
47
K960863
HOUSING
- scraper ring
1шт.
48
K96??4
CIRCLIP - 1 3/8 in.--bearing housing
1шт.
49
K960864
SEAL
- lip scraper
1шт.
K960832
HOUSING
- anchor ball, inner
1шт.
K960831
HOUSING
- anchor ball, outer
1шт.
K960797
NO LONGER SERVICED
NIPPLE - grease, ball housing
1шт.
K962246
SHIM,.010" Thk
Ball Housing .010" Thk
1шт.
K961996
SHIM,.005" Thk
Ball Housing .005" Thk
1шт.
K960835
COVER
- rubber, ball housing
1шт.
K961995
SHIM,.0025" Thk
Ball Housing .0025" Thk
1шт.
K962186
SEAL
- pack ('O' rings, washers and gland ring)
1шт.
Выбрано товаров: 68
