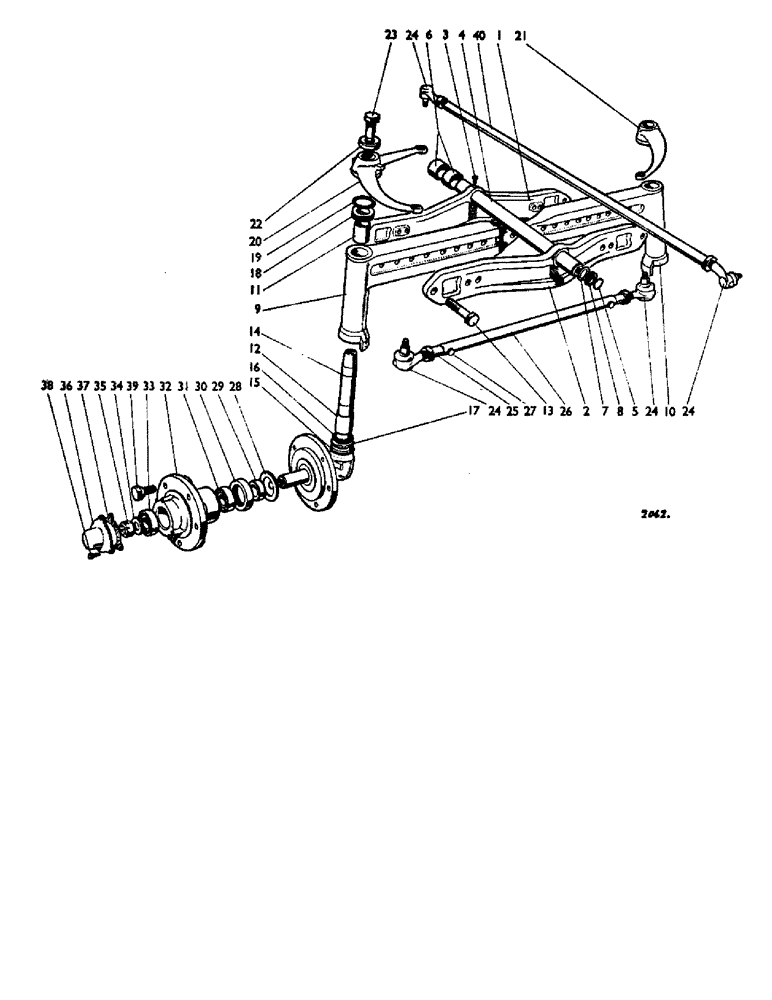

Запчасти Case IH 880B (086) - HEAVY DUTY FRONT AXLE, OPTIONAL EQUIPMENT Steering & Front Axle

1

K919295

BEAM - centre front

1шт.

2

K919294

BEAM - centre rear

1шт.

3

K606863

SCREW

- bolt, 3/8 UNC x 7/8 in.

1шт.

4

K919108

TRUNNION

- pin

1шт.

5

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1 1/4 in. int. dia.

1шт.

6

K15597

BUSHING

4шт.

7

K626753

WASHER

- thrust, 15/64 in.

2шт.

7

K626755

NO LONGER SERVICED

WASHER - thrust, 17/64 in. alternatives

2шт.

7

K626756

WASHER

- thrust, 9/32 in. alternatives

2шт.

7

K626750

WASHER - thrust, 5/32 in. alternatives

2шт.

7

K626751

WASHER - thrust, 3/16 in. alternatives

2шт.

7

K626752

WASHER

- thrust, 7/32 in. alternatives

2шт.

7

K626754

WASHER - thrust, 1/4 in. alternatives

2шт.

8

K15619

SEAL

- dirt excluder

2шт.

9

K962337

BEAM - extension, left-hand (with bushes)

1шт.

10

K962336

BEAM - extension, right-hand (with bushes)

1шт.

11

K919296

BUSHING

- upper

2шт.

12

K621367

BUSHING

- lower

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

13

K601417

BOLT

- 3/4 UNC x 4 3/4 in.

4шт.

K607007

NUT

- 3/4 UNC

4шт.

K19486

WASHER, LOCK

WASHER - spring, 3/4 in.

4шт.

14

K962230

STUB AXLE - king pin

2шт.

15

K24764

O-RING

- 2 5/8 in. int. dia.

2шт.

16

K620180

THRUST BEARING

BEARING - thrust

2шт.

16

K620184

BEARING WASHER

BEARING - thrust

2шт.

17

K626692

DISC

- thrust washer (use with 620180)

4шт.

17

K626859

BEARING WASHER,44.5mm ID x 63.25mm OD x 1.6mm Thk

DISC - thrust washer (use with 620184)

4шт.

18

K85298

SEAL

- retainer

2шт.

19

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2 1/8 in. int. dia.

2шт.

20

K919298

LEVER

- steering, left-hand (manual steering)

1шт.

20

K919690

STEERING LEVER - left-hand (power-assisted steering)

1шт.

21

K919297

LEVER

- steering, right-hand

1шт.

22

K15595

WASHER

- 5/8 in., special

2шт.

23

K601210

BOLT (SPREADER)

BOLT - spreader, 5/8 UNC x 2 3/4 in.

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.

24

K908071

BALL JOINT

- socket assembly

4шт.

K961701

BOOT

- dirt excluder (rubber) 908071

4шт.

K622500

LOCK NUT

LOCKNUT - special 908071

4шт.

K617104

NUT

- slotted, 1/2 UNF 908071

4шт.

K19530

PIN

- split, 3/32 x 1 in.

4шт.

25

K906210

ROD

- track

2шт.

26

K906209

BUSHING

- spacer tube--track rods

1шт.

27

K600316

BOLT

5/16 UNC x 2 1/4 in.

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 in.

2шт.

28

K910429

SPACER

- dirt excluder

2шт.

29

K910428

RING RACE

RACE - ring, sleeve--oil seal

2шт.

30

K623419

OIL SEAL

- oil, 2 3/4 x 3 3/4 x 1/2 in.

2шт.

31

K19186

BEARING, ROLLER

BEARING - taper roller, inner

2шт.

32

K972447

HUB

- front

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

33

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

BEARING - taper roller, outer

2шт.

34

K626673

WASHER

- 3/4 in., special

2шт.

35

K617157

NUT

- slotted, 3/4 UNF

2шт.

K623603

PIN

- split, 11/64 x 1 1/8 in.

2шт.

36

K908913

CAP

- hub

2шт.

37

K15344

GASKET,0.25mm Thk

2шт.

38

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

6шт.

39

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

- wheel bolt, 1/2 UNC x 1 in. (without front brakes)

12шт.

39

K971809

WHEEL BOLT

- wheel, 1/2 UNC x 2 1/4 in. (with front brakes)

12шт.

K912076

LINK

- drag assembly (manual steering)

1шт.

40

K909033

DRAG LINK

LINK DRAG - tube 912076

1шт.

24

K908071

BALL JOINT

- socket assembly 912076

2шт.

K913594

LINK

- drag assembly (power-assisted steering) (s.s. 972701)

1шт.

40

K910795

LINK

- drag tube (replaces 972702) 913594

1шт.

K913593

LARGE PIN

PIN - large, eye end (replaces 913593) 913594

1шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in., special 913594

1шт.

24

K908071

BALL JOINT

- socket assembly 913594

1шт.
