Запчасти Case IH 880B (038) - DIFFERENTIAL Gearbox

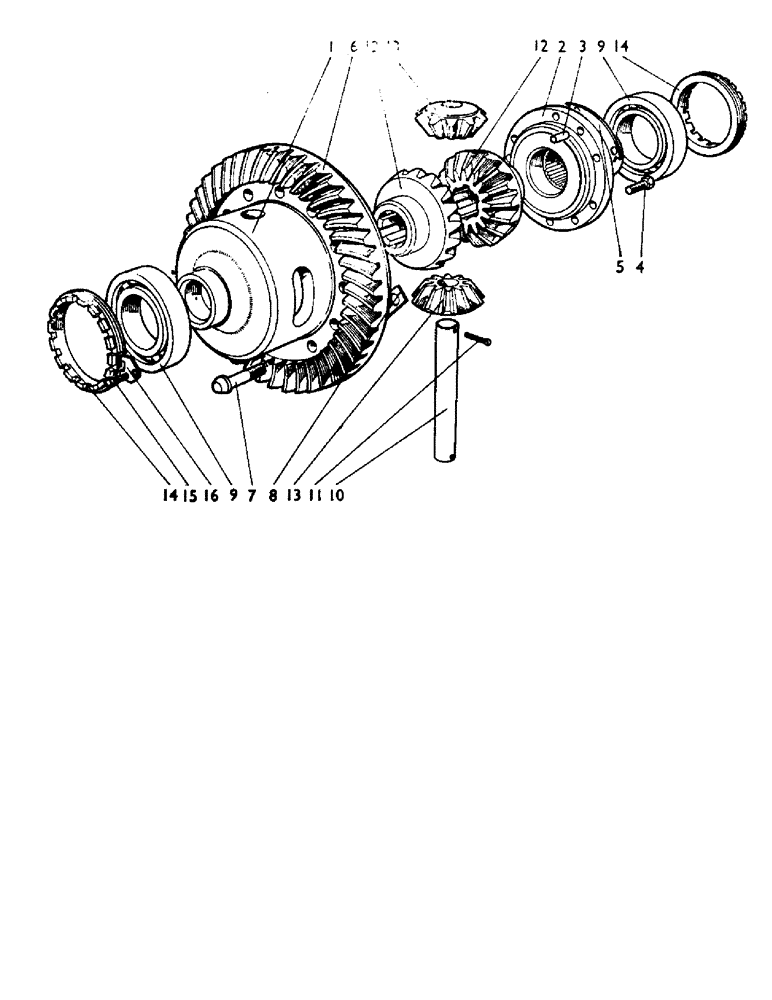

Схема запчастей Case IH 880B - (038) - DIFFERENTIAL Gearbox
1
2
16
14
3
10
8
9
13
9
11
4
12
15
5
7
6
14

Артикул

Название

Примечание

Количество

1

K908780

HOUSING

- cage

1шт.

2

K903184

FLANGE

- end plate

1шт.

3

K621801

PIN

- dowel, 3/8 x 3/4 in. (replaces 14542)

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

5

K903185

WASHER

TABWASHER

3шт.

K626372

WASHER

TABWASHER

3шт.

6

K962047

GEAR

- bevel pinion and spiral (7/43, replaces 904174 teeth)

1шт.

7

K905664

WHEEL BOLT

- 7/16 UNC, special

12шт.

8

K30236

WASHER

TABWASHER

6шт.

280717

NUT,7/16"-14, G5

12шт.

9

K19010

BALL BEARING

BEARING - ball

2шт.

10

K916863

NO LONGER SERVICED

PIN - (supersedes 30233)

1шт.

K11128

CIRCLIP

SNAP RING - circlip, I in. ext. (used with 916863)

2шт.

11

K19542

PIN

- split, 5/32 x 1 5/8 in. (used with 30233)

2шт.

12

K30234

CONE PINION

PINION - cone, wheel

2шт.

13

K921011

PINION

- (10 teeth) (replaces 15020)

2шт.

14

K15007

RING, LOCKING

RING - locking, adjuster wheel

2шт.

15

K602801

BOLT (SPREADER)

BOLT - spreader, setscrew, 5/16 UNC x 1/2 in.

2шт.

16

K626420

WASHER

- lock plate (replaces 13015)

2шт.

Выбрано товаров: 19
