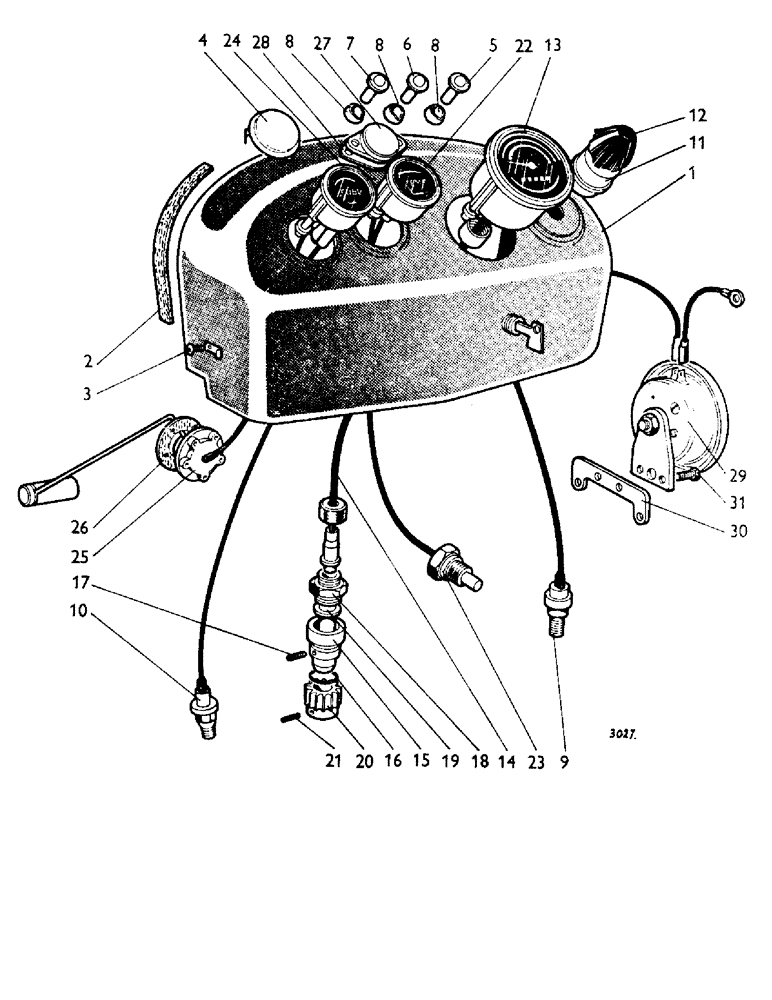

Запчасти Case IH 880B (080) - INSTRUMENTS AND PANEL Engine Controls & Instruments

1

K962605

PANEL

- instrument 554040 onward

1шт.

1

K920918

SPARE PART

PANEL - instrument, Serial Range: 544392-554039

1шт.

1

K916841

INSTRUMENT PANEL -, Serial Range: 530001-544391

1шт.

2

K913391

STRIP

- seating

3шт.

3

K624714

SCREW

- 2 BA x 3/8 in.

4шт.

K626572

WASHER

LOCKWASHER - 3/16 in.

4шт.

K624581

NUT

- captive, 2 BA

4шт.

4

K903487

PLATE - blanking, temperature and fuel gauge apertures

2шт.

5

K917370

PROTECTIVE COVER

COVER - protective, warning lamp--dynamo charge 544392 onward

1шт.

6

K917371

SIGHTGLASS

COVER - protective, warning lamp--oil pressure 544392 onward

1шт.

7

K921367

SIGHTGLASS

- warning lamp--oil filter 544392 onward

1шт.

BULB - 12 volt, 2 watt, MBC 544392 onward

3шт.

8

K919304

GUARD

- hood--warning lamps 544392 onward

3шт.

K908351

INDICATOR LIGHT

LIGHT - indicator, warning lamp--dynamo charge and oil, 530001 to 544391 pressure

1шт.

BULB - 12 volt, 2.4 watt, MES, Serial Range: 530001-544391

2шт.

9

K903851

PRESSURE SWITCH

CONNECTION - electric, switch--oil pressure warning lamp

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 3/8 in.

1шт.

10

K921317

SENDER UNIT

SWITCH - oil filter warning lamp 544392 onward

1шт.

K923874

COVER

- switch (supersedes 915148)

2шт.

11

K912388

IGNITION SWITCH

SWITCH - ignition, lighting (Lucas 54033351) five-position

1шт.

K901982

PLATE

- escutcheon 912388

1шт.

K902464

SWITCH

- lighting (Lucas 54033370) four-position

1шт.

12

K901981

KNOB

- 912388 and 902464

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

- 1/4 in. int. dia.

1шт.

K924339

SPEEDOMETER

- engine speed indicator

1шт.

K924771

CABLE

- tractormeter

1шт.

K962385

NO LONGER SERVICED

CABLE - inner (37 5/8 in.)

1шт.

13

K912287

NO LONGER SERVICED

TRACTORMETER - (MPH) 9/50 ratio reductions

1шт.

13

K912687

SPARE PART

TRACTORMETER - (KPH) 9/50 ratio reductions

1шт.

13

K907090

NO LONGER SERVICED

TRACTORMETER - (MPH) 11/49 ratio reductions

1шт.

13

K915869

SPARE PART

TRACTORMETER - (KPH) 11/49 ratio reductions

1шт.

K925101

ELECTRICAL GAUGE

GAUGE - electrical, speedometer--highway tractors U1225 (922487)

1шт.

14

K921385

FLEXIBLE DRIVE SHAFT

SHAFT - flexible driv. cable, inner and, supersedes 908883 outer--tractormeter drive (33 1/2 in.)

1шт.

K962058

CABLE

- inner (34 19/32 in., AC-Delco)

1шт.

K10518

BUCKLE

- clip

2шт.

15

K908181

HOUSING

1шт.

16

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 in. int. dia.

1шт.

17

K908184

SCREW

- locating, 5/16 UNC

1шт.

K607081

LOCK NUT

LOCKNUT - 5/16 UNC (replaces 607051)

1шт.

18

K620008

ADAPTER

1шт.

K19502

WASHER

- fibre, 7/8 in.

1шт.

19

K908182

DRIVE

SHAFT

1шт.

20

K908183

DRIVE

SHAFT - gear

1шт.

21

K623933

SPRING

- pin, 1/8 x 5/8 in. (replaces 623724)

1шт.

22

K921148

ELECTRICAL GAUGE

GAUGE - electrical, temperature (part of U1005--see Fig. 112), 544392 onward

1шт.

22

K910618

ELECTRICAL GAUGE

GAUGE - electrical, temperature (part of U581--see Page 120), Serial Range: 530001-544391

1шт.

23

K921149

TEMPERATURE SENDER

GAUGE - electrical, sender 544392 onward

1шт.

23

K907985

SPARE PART

SENDER -, Serial Range: 530001-544391

1шт.

K626444

WASHER

- copper, 5/8 in.

1шт.

24

K921147

ELECTRICAL GAUGE

GAUGE - electrical, fuel (see Fig. 112) (optional equipment) 544392 onward

1шт.

24

K917374

SPARE PART

GAUGE - fuel (see Page 120) (optional equipment), Serial Range: 536080-544391

1шт.

25

K916635

SENDER UNIT

- tank optional equipment

1шт.

26

K916485

GASKET

- unit to tank optional equipment

1шт.

K626340

RING

- spring washer, 3/16 in. unit to, optional equipment tank

5шт.

K617080

NUT

- No. 10 UNF unit to tank optional equipment

5шт.

27

K928180

SWITCH

- horn push (replaces 19911)

1шт.

28

K928150

BOOT

- rubber cover horn push to instrument panel (replaces 908047)

1шт.

K928149

WASHER

- 3/4 in. horn push to instrument panel (replaces 624718)

1шт.

K928148

SPRING

- washer, 3/4 in. horn push to instrument panel (replaces 19487)

1шт.

K928147

NUT - 3/4 UNF horn push to instrument panel (replaces 19419)

1шт.

29

K907861

NO LONGER SERVICED

HORN - bracket

1шт.

30

K912699

PLATE - carrier, horn

1шт.

31

K603924

SCREW

SETSCREW - 1/4 UNC x 1/2 in.

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in.

2шт.

K607043

NUT

- 1/4 UNC

2шт.

K921368

DECAL

- transfer--hydraulic filter warning lamp

1шт.

K961999

PRODUCT GRAPHIC

- transfer--'To stop, lift rod and release'

1шт.

K917765

DECAL

- gear selection chart 12-speed

1шт.

K24775

SCREW - self tapping 12-speed

2шт.
