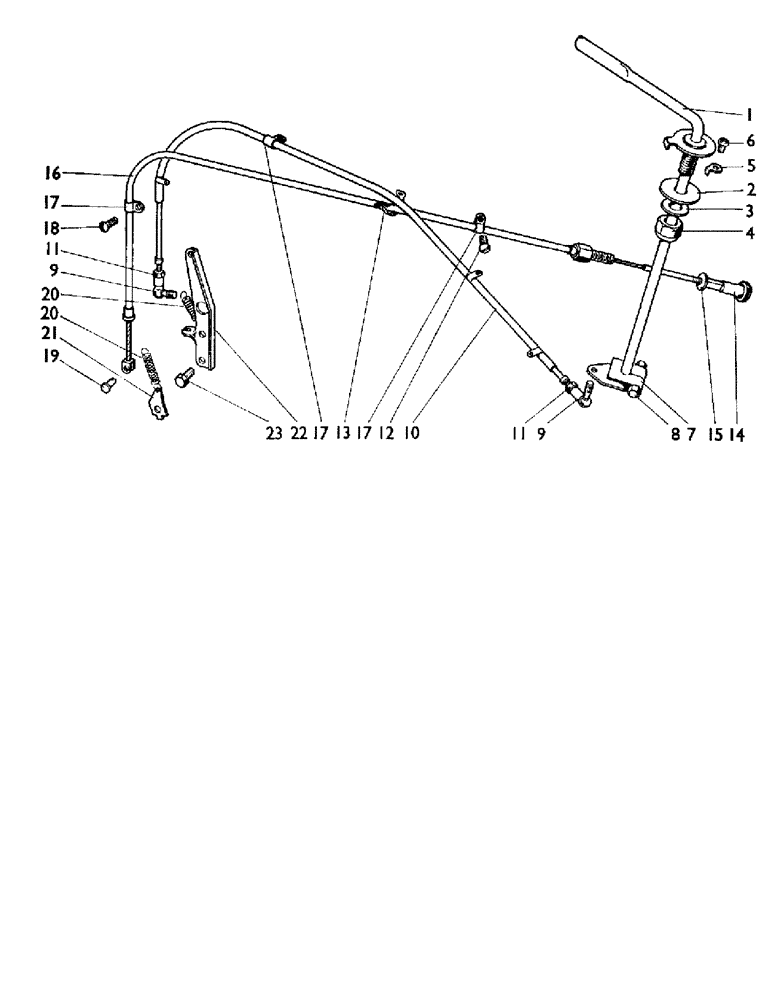

Запчасти Case IH 880B (072) - HAND THROTTLE AND STOP CONTROL Engine Controls & Instruments

1

K913191

LEVER

- hand

1шт.

2

K85546

DISC

- friction

1шт.

3

K626740

WASHER

- Belleville, 5/8 in.

1шт.

K19475

WASHER

- 5/8 in.

1шт.

4

K623003

NUT

- Nyloc, 5/8 BSF

1шт.

5

K910157

WASHER

- stop pad

2шт.

6

K605633

SCREW

- 1/4 UNC x 1/2 in. (replaces 603924)

2шт.

K607043

NUT

- 1/4 UNC (replaces 607000)

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. (replaces 19480)

2шт.

7

K89255

LEVER

1шт.

8

K600144

BOLT

- 1/4 UNC x 1 3/8 in. (replaces 600005)

1шт.

K607000

NUT

- 1/4 UNC

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

9

K621900

UNIVERSAL JOINT

- ball

2шт.

K19401

NUT

- 1/4 BSF

2шт.

K19480

SPRING WASHER

- spring, 1/4 in.

2шт.

10

K923227

CABLE

- inner and outer (throttle, supersedes 913998 control)

1шт.

11

K617080

NUT

- No. 10 UNF (replaces 617049)

2шт.

12

K12189

SCREW

- 2 BA x 1/2 in.

1шт.

K11109

NUT

- 2 BA

2шт.

K19488

SPRING WASHER

- spring, 3/16 in.

2шт.

13

K621672

HOSE CLAMP

CLAMP - hose, buckle clip (replaces 621637)

4шт.

14

K916844

KNOB

- engine stop

1шт.

15

K12939

WASHER

- 3/16 in., special

1шт.

K617080

NUT

- No. 10 UNF (replaces 617049)

1шт.

K918849

BRACKET

- support, stop control 537216 onward

1шт.

K916840

BRACKET - support, stop control, Serial Range: 530001-537215

1шт.

K624714

SCREW

- 2 BA x 3/8 in. bracket to instrument panel

3шт.

K11519

WASHER

- shakeproof, 3/16 in. bracket to instrument panel

3шт.

16

K918846

CABLE

- inner and outer (stop, 537216 onward control)

1шт.

16

K915988

CABLE

inner and outer (stop, 530001 to 537215 control)

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF

2шт.

17

K19932

RING

- cable clip

2шт.

18

K12189

SCREW

- 2 BA x 1/2 in.

1шт.

K11109

NUT

- 2 BA

1шт.

K19488

SPRING WASHER

- spring, 3/16 in.

1шт.

19

K913180

PIN

- large, pump lever

1шт.

20

K624938

SPRING

- return (replaces 624920)

2шт.

21

K913184

ANCHOR

1шт.

K19471

WASHER

- 5/16 in.

1шт.

22

K918844

BRACKET

- throttle and stop cables 537216 onward

1шт.

22

K913926

NO LONGER SERVICED

BRACKET - throttle and stop cables, Serial Range: 530001-537215

1шт.

23

K612700

SET SCREW,1/4" - 28 x 3/8"

SETSCREW - 1/4 UNF x 3/8 in. bracket to injection pump

2шт.

K19480

SPRING WASHER

- spring, 1/4 in. bracket to injection pump

2шт.

K617500

NUT

- spring anchor

1шт.
