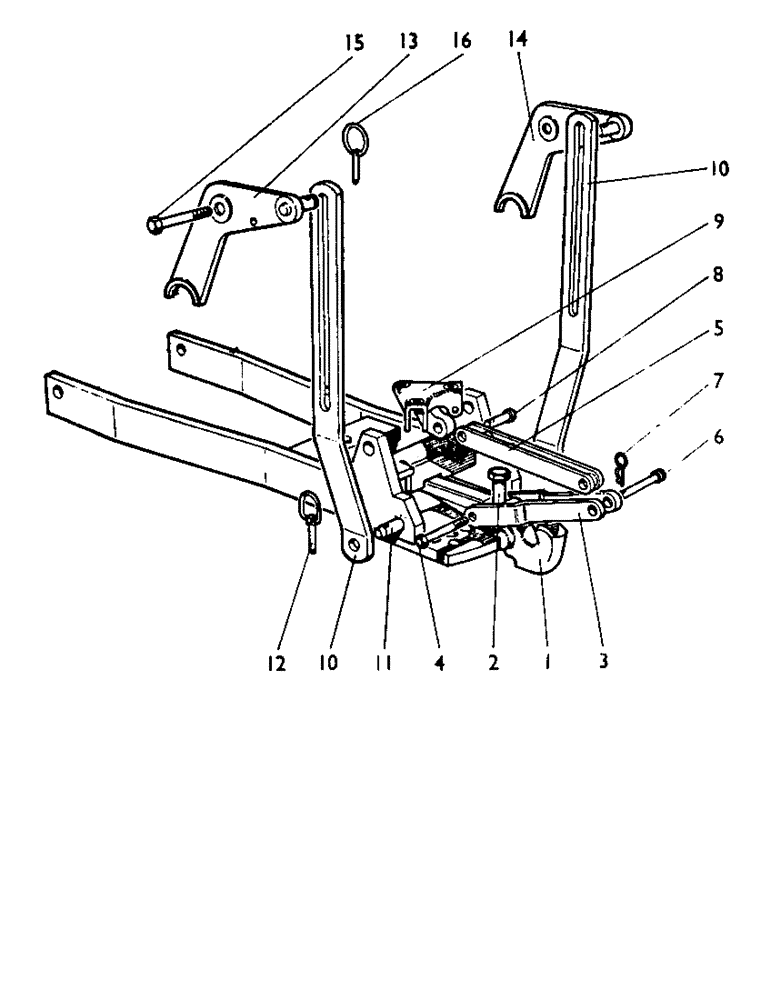

Запчасти Case IH 880B (068) - PICK-UP HITCH, U815, OPTIONAL EQUIPMENT Drawbars & Hitches

1

K904887

HOOK

- towing

1шт.

2

K601611

BOLT

- 7/8 UNC x 3 3/4 in.

1шт.

K607308

NUT

- Nyloc, 7/8 UNC

1шт.

3

K916945

JAW

1шт.

4

K600818

BOLT (SPREADER)

BOLT - spreader, 1/2 UNC x 4 in.

1шт.

K607304

NUT

- Nyloc, 1/2 UNC

1шт.

5

K916946

LINK

1шт.

6

K916951

NO LONGER SERVICED

PIN - clevis

1шт.

7

K38632

SPRING

- clip

2шт.

8

K916959

SPARE PART

PIN

1шт.

9

K916941

BRACKET

- anchor, check chains

1шт.

10

K916952

ROD

- lift

2шт.

11

K909503

PIN

2шт.

K626684

WASHER

- 7/8 in.

2шт.

12

K66408

PIN

- linch ring

2шт.

13

K908414

ARM

- lift, left-hand

1шт.

14

K908415

ARM

- lift, right-hand

1шт.

15

K601415

BOLT

- 3/4 UNC x 4 1/4 in.

2шт.

16

K920359

PIN

- linch ring (replaces 900139)

2шт.

K626684

WASHER

- 7/8 in.

2шт.
