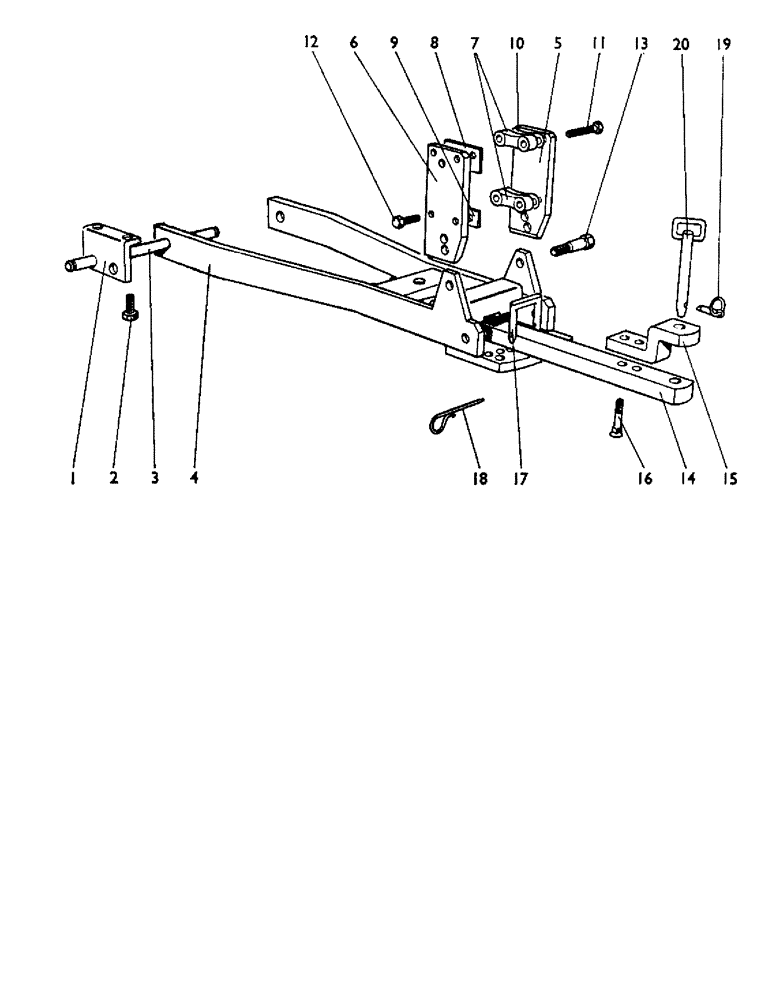

Запчасти Case IH 880B (067) - UNIVERSAL DRAWBAR, OPTIONAL EQUIPMENT Drawbars & Hitches

1

K916517

BRACKET

- hinge U787 (911698)

2шт.

2

K603308

BOLT (SPREADER)

BOLT - spreader, 5/8 UNC x 1 3/4 in. brackets to frame, U787 (911698)

4шт.

K621381

WASHER

TABWASHER - brackets to frame, U787 (911698) (replaces 19485)

2шт.

3

K916551

HINGE

- bar U787 (911698)

1шт.

K11128

CIRCLIP

SNAP RING - circlip, 1 in., ext. U787 (911698)

2шт.

4

K919098

SUPPORT

- drawbar (supersedes 916432) U787 (911698)

1шт.

5

K916519

HITCH ASSY

- plate, right-hand U787 (911698)

1шт.

6

K917075

PLATE

- hitch, left-hand U787 (911698)

1шт.

7

K917135

BUSHING

- distance piece hitch plates to PTO case, U787 (911698)

2шт.

8

K916521

BUSHING

- distance piece hitch plates to PTO case, U787 (911698)

1шт.

9

K916522

BUSHING

- distance piece hitch plates to PTO case, U787 (911698)

1шт.

11

K601212

BOLT

- 5/8 UNC x 3 in. hitch plates to PTO case, U787 (911698)

4шт.

12

K601204

BOLT

- 5/8 UNC x 2 in. hitch plates to PTO case, U787 (911698)

4шт.

K19485

WASHER

- spring, 5/8 in. hitch plates to PTO case, U787 (911698)

8шт.

13

K908290

STEP BOLT

- special, 3/4 UNC U787 (911698)

2шт.

280954

NUT,3/4"-10, G5

- 3/8 UNC U787 (911698)

2шт.

K19486

WASHER, LOCK

WASHER - lock, spring, 3/4 in. U787 (911698)

2шт.

14

K916515

DRAWBAR, SWINGING

DRAWBAR - swinging, U786 (911699)

1шт.

15

K916516

CLEVIS

- bracket U786 (911699)

1шт.

16

K691431

BOLT

- plough, 5/8 UNC x 3 1/4 in. U786 (911699)

2шт.

K607306

NUT

- Nyloc, 5/8 UNC U786 (911699)

2шт.

17

K916550

PIN

- large, stop U786 (911699)

1шт.

18

K916549

SPRING

- retaining pin U786 (911699)

1шт.

19

K920359

PIN

- linch ring (replaces 62995) U786 (911699)

2шт.

20

K916566

PIN

- hitch, 1 in. x 7 3/4 in. U786 (911699)

1шт.
