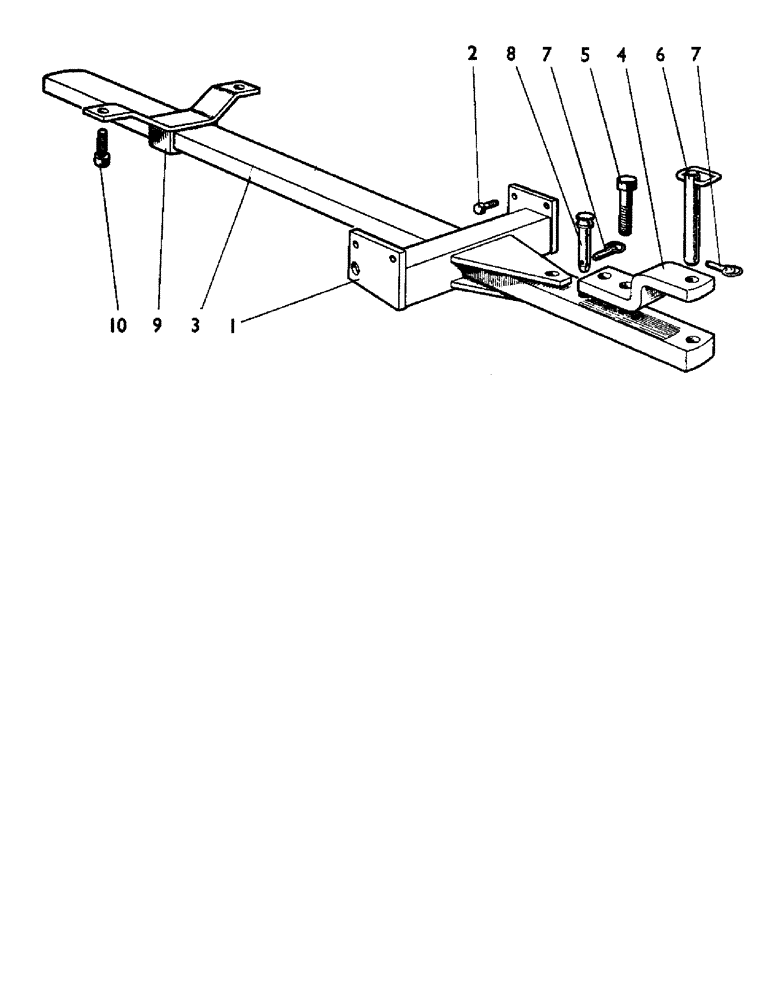

Запчасти Case IH 880B (066) - PERMANENT DRAWBAR Drawbars & Hitches

K921397

DRAWBAR, SWINGING

DRAWBAR - swinging, support bracket 543157 onward

1шт.

1

K906011

BRACKET - support, Serial Range: 530001-543156

1шт.

2

K601204

BOLT

- 5/8 UNC x 2 in.

4шт.

K607006

NUT

- 5/8 UNC

4шт.

K19485

WASHER

- spring, 5/8 in.

4шт.

3

K905416

DRAWBAR

1шт.

4

K905415

BRACKET - clevis

1шт.

5

K601210

BOLT (SPREADER)

BOLT - spreader, 5/8 UNC x 2 3/4 in.

2шт.

K607006

NUT

- 5/8 UNC

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.

6

K901782

HITCH PIN

PIN - hitch

1шт.

7

K920359

PIN

- linch ring (replaces 900139)

1шт.

8

K912936

PIN

- large, link, 7/8 x 4 1/8 in. (replaces 17102)

1шт.

K66408

PIN

- linch ring

1шт.

K921395

SUPPORT

- drawbar 543157 onward

1шт.

9

K906013

SUPPORT - drawbar, Serial Range: 530001-543156

1шт.

10

K603305

BOLT

- setscrew, 5/8 UNC x 1 3/8 in.

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.
