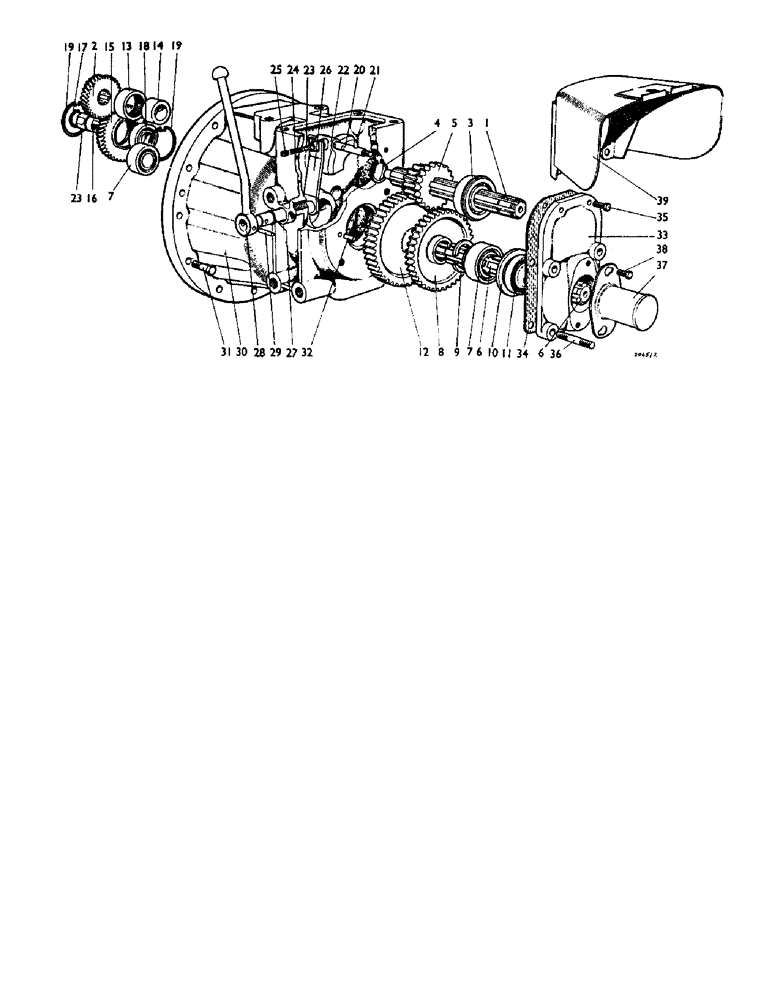

Запчасти Case IH 880B (094) - POWER TAKE-OFF UNIT Auxiliary Drive Units

K962659

PTO

- unit (complete) (supersedes, 880/A 961959)

1шт.

K962660

PTO

- unit (complete) (supersedes, 880/B 961960)

1шт.

1

K906735

DRIVE SHAFT

DRIVESHAFT - 880/A

1шт.

1

K906734

DRIVE SHAFT

DRIVESHAFT - 880/B

1шт.

2

K908094

GEAR

- pump drive (helical gear) 557477 onward

1шт.

2

K906731

GEAR

- pump drive (spur gear), Serial Range: 530001-557476

1шт.

3

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

BEARING - ball with snap ring

1шт.

4

K621535

RING, SNAP

SNAP RING - circlip, 1 3/64 dia. ext.

4шт.

5

K906688

GEAR

- speed change pinion

1шт.

6

K923432

SHAFT

- driven 557477 onward

1шт.

7

K620046

BEARING

- taper roller 557477 onward

2шт.

8

K923434

GEAR

- low speed 557477 onward

1шт.

9

K923433

RING

- split 557477 onward

1шт.

10

K923435

WASHER

- thrust ring 557477 onward

1шт.

K906691

SHAFT

- driven, Serial Range: 530001-557476

1шт.

K906692

GEAR

- low speed, Serial Range: 530001-557476

1шт.

K620100

BALL

- bearing with snap ring, Serial Range: 546987-557476

1шт.

K923240

BUSHING

- distance piece (used with 620100), Serial Range: 546987-557476

1шт.

K19197

BEARING, BALL

BEARING - ball with snap ring, Serial Range: 530001-546986

1шт.

K904431

BUSHING

- distance piece (used with 19197), Serial Range: 530001-546986

1шт.

11

K11119

OIL SEAL

- oil, 1 5/8 x 2 1/2 x 5/16 in.

1шт.

12

K906689

GEAR

- high speed

1шт.

13

K620266

NEEDLE BEARING

BEARING - needle roller

1шт.

14

K906693

RING RACE

BUSHING - inner race--driveshaft

1шт.

K906694

BEARING

BUSHING - inner race--driven shaft, Serial Range: 530001-557476

1шт.

K909349

PIN

- retaining washer (with locking pin), Serial Range: 530001-557476

1шт.

K606894

SCREW

CAPSCREW - 7/16 UNC x 1 in., Serial Range: 530001-557476

1шт.

15

K923442

GEAR

- idler 557477 onward

1шт.

16

K923441

PIN

- shaft--idler gear 557477 onward

1шт.

17

K11128

CIRCLIP

SNAP RING - circlip, 1 in. ext. 557477 onward

1шт.

18

K620102

BEARING, BALL

BEARING - ball 557477 onward

1шт.

19

K621436

RING, SNAP

SNAP RING - circlip, 62 mm int. 557477 onward

2шт.

K906696

GEAR

- idler, Serial Range: 530001-557476

1шт.

K13170

RING, SNAP

SNAP RING - circlip, 52 mm. int., Serial Range: 530001-557476

2шт.

K24489

BALL BEARING

BALL - bearing, Serial Range: 530001-557476

1шт.

K906697

PIN

- bearing, Serial Range: 530001-557476

1шт.

K906698

WASHER

TABWASHER -, Serial Range: 530001-557476

1шт.

K617026

NUT

- special, 3/4 UNF, Serial Range: 530001-557476

1шт.

20

K906699

PIN

- selector rod

1шт.

21

K906700

PIN

- retaining

1шт.

22

K906701

SELECTOR

- fork

1шт.

23

K17063

BALL

- steel, 1/4 in.

1шт.

24

K24831

SPRING

1шт.

25

K606021

SCREW

GRUBSCREW - 5/16 UNC

1шт.

26

K916575

SELECTOR

- lever

1шт.

27

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 in. int. dia.

1шт.

28

K924569

SPARE PART

LEVER - operating (replaces 916574)

1шт.

29

K623726

PIN

- Mills, 1/4 x 1 1/2 in. (replaces 11246)

1шт.

30

K923431

CASE

- 557477 onward

1шт.

30

K923448

HOUSING

- case, Serial Range: 546987-557476

1шт.

30

K921226

NO LONGER SERVICED

CASE - (supersedes 916372), Serial Range: 543157-546986

1шт.

K921474

PLATE

- blanking, Serial Range: 530001-543156

1шт.

K921220

GASKET

- plate to case, Serial Range: 530001-543156

1шт.

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW - 1/4 UNC x 3/8 in. plate to case, Serial Range: 530001-543156

2шт.

K19480

SPRING WASHER

- spring, 1/4 in. plate to case, Serial Range: 530001-543156

2шт.

K922591

GASKET

- PTO to support plate (replaces 89175)

1шт.

K24827

PIN

- headed dowel, 7/16 x 1 3/4 in. case and support plate to rear axle

1шт.

K605157

SCREW

- 7/16 UNC x 1 1/8 in. case and support plate to rear axle

1шт.

31

K600605

BOLT

- 7/16 UNC x 1 7/8 in. case and support plate to rear axle

11шт.

K19483

SPRING WASHER

- spring, 7/16 in.

11шт.

32

K14577

DOWEL

- 1/4 x 9/16 in.

2шт.

K961931

PRODUCT GRAPHIC

- transfer--gear positions

1шт.

33

K906686

COVER

- end

1шт.

34

K924217

GASKET

- (replaces 906687)

1шт.

35

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

K15498

SEALING WASHER

- washer, 5/16 in.

1шт.

36

K608311

STUD

- 7/16 UNC x 2 5/16 in.

4шт.

K19483

SPRING WASHER

- spring, 7/16 in.

4шт.

280717

NUT,7/16"-14, G5

4шт.

37

K909111

COVER

- PTO shaft

1шт.

K626682

WASHER

- 5/16 in.

2шт.

38

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

2шт.

39

K906893

GUARD

- PTO U378 (906988)

1шт.
