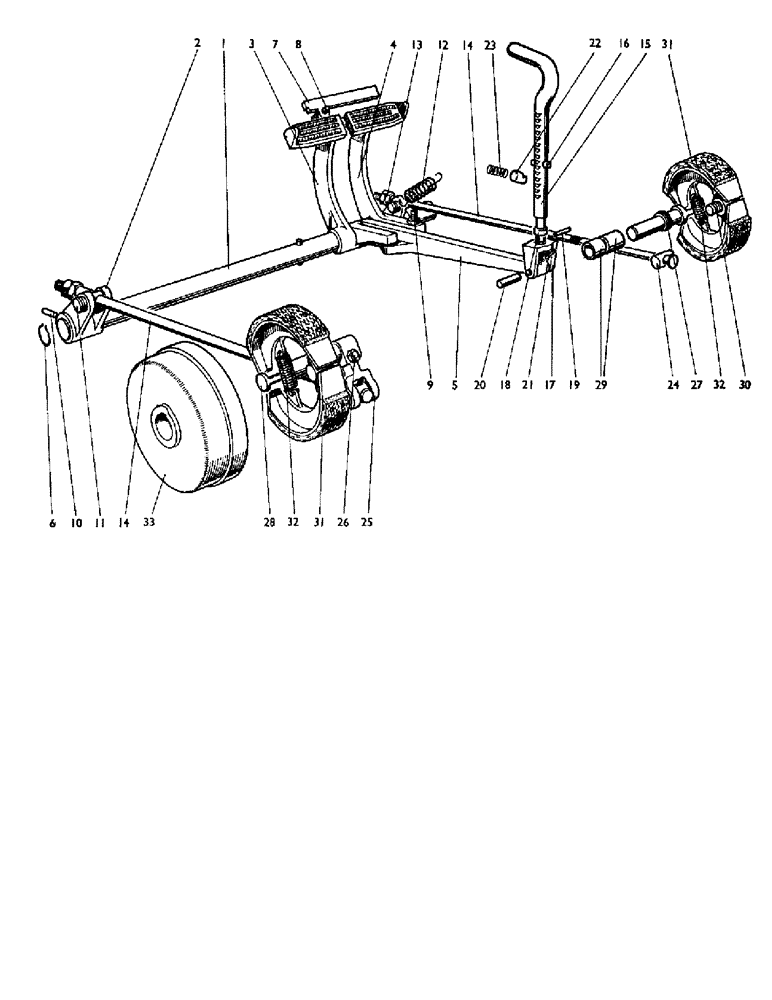

Запчасти Case IH 880A (074) - FOOT AND HAND BRAKES, TWO-WHEEL BRAKES (5.1) - BRAKES

1

K904354

SHAFT

- cross

1шт.

2

K903139

LEVER

1шт.

3

K904330

NO LONGER SERVICED

BRAKE - pedal, left-hand

1шт.

4

K904329

BRAKE

- pedal, right-hand

1шт.

5

K904331

LEVER - operating, hand brake

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF--RH pedal 1/4"-28 NPT x .54" lg

1шт.

6

K11129

RING, SNAP

SNAP RING - circlip, 1 1/4 in. ext.

1шт.

7

K38656

PLATE

- locking pedal lock

1шт.

8

K600500

SCREW

- bolt, 3/8 UNC, special pedal lock

1шт.

K626700

WASHER

- spring, 3/8 in., double coil pedal lock

1шт.

9

K606170

SCREW

GRUBSCREW - 7/16 UNC

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT - 7/16 UNC

1шт.

10

K623732

PIN

- Mills, 3/8 x 2 in.

3шт.

11

K38639

PIN

- brake rods

2шт.

12

K14809

SPRING

- return

2шт.

13

K607504

NUT

- adjusting, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

14

K904362

NO LONGER SERVICED

BRAKE - rod

2шт.

15

K909587

LEVER

- hand

1шт.

16

K623892

PIN

- spring dowel, 5/16 x 1 1/2 in.

1шт.

17

K912780

FORK

1шт.

18

K65784

WASHER

- spherical

1шт.

19

K623895

PIN

- spring dowel, 5/16 x 2 in.

1шт.

20

K904356

PIN

- fork

1шт.

21

K623940

PIN

- spring dowel, 5/32 x 1 in.

1шт.

22

K909588

PAWL

1шт.

23

K14651

SPRING

1шт.

24

K14744

PIN

- lever

2шт.

25

K30833

LEVER

- cam, left-hand

1шт.

K86343

LEVER

- cam, right-hand

1шт.

26

K609425

LARGE PIN

PIN - large, cotter, 3/8 UNC x 2 1/4 in.

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K11522

WASHER

- shakeproof, 3/8 in.

2шт.

280136

NUT,3/8"-16, G8

2шт.

27

K85417

SEAL

- dirt excluder

2шт.

28

K30832

BRAKE

- camshaft, left-hand

1шт.

K30831

BRAKE

- camshaft, right-hand

1шт.

29

K30835

BUSHING

- camshaft

4шт.

30

K906002

PIN

- large, fulcrum

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.

31

K903806

BRAKE ASSY.

- shoe and lining assembly (replaces 909957)

4шт.

K903512

BRAKE SHOE

SHOE - brake (replaces 905264) 903806

1шт.

K903511

LINING

- brake 903806

1шт.

K13048

RIVET

- 3/16 x 7/8 in. (replaces, 903806 11478)

4шт.

K624014

RIVET

- 3/16 x 5/8 in. 903806

4шт.

K960595

PADDING

- brake lining (4) and rivet pack (for 903512 shoes)

1шт.

K962283

BRAKE

- lining (4) and rivet pack (for 905264 shoes)

1шт.

32

K63462

SPRING

- brake shoes

4шт.

33

K905641

BRAKE

- drum

2шт.
