Запчасти Case IH 880A (031) - CLUTCH, RESETTING LEVER, OPTIONAL EQUIPMENT (03.1) - CLUTCH

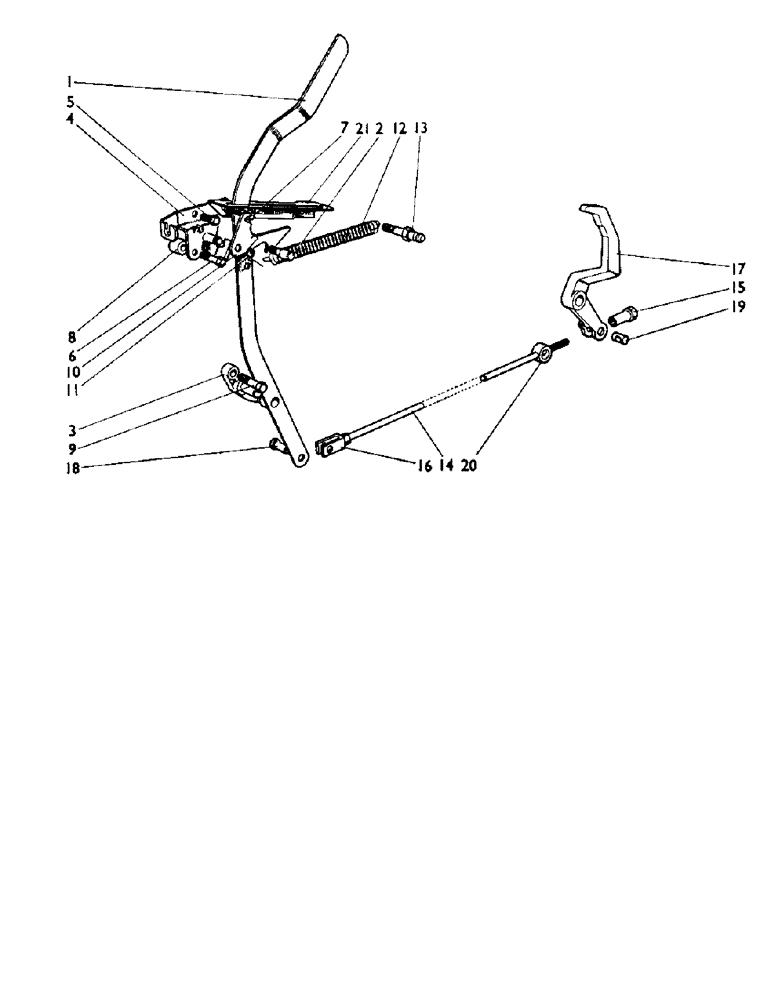

Схема запчастей Case IH 880A - (031) - CLUTCH, RESETTING LEVER, OPTIONAL EQUIPMENT (03.1) - CLUTCH
13
10
18
7
5
15
1
2
19
4
8
14
3
11
16
20
9
17
21
12
6

Артикул

Название

Примечание

Количество

1

K912848

LEVER

- resetting

1шт.

2

K913299

PIN

- locking

1шт.

K607081

LOCK NUT

LOCKNUT - 5/16 UNC (replaces 607051)

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

1шт.

3

K914090

BRACKET

- resetting lever

1шт.

K19476

WASHER

- 3/4 in.

1шт.

K19532

PIN

- split, 1/8 x 1 in.

1шт.

4

K912849

BRACKET

- support, resetting lever

1шт.

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

1шт.

5

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

1шт.

6

K600205

BOLT

- 5/16 UNC x 1 1/2 in.

1шт.

7

K600204

BOLT

- 5/16 UNC x 1 3/8 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

4шт.

8

K912852

BUSHING

- distance piece

1шт.

9

K600806

BOLT

- 1/2 UNC x 2 in.

2шт.

10

K912853

LATCH

- trigger

1шт.

K19472

WASHER

- 3/8 in.

1шт.

K621587

RING, SNAP

SNAP RING - 'E' clip, 3/8 in., ext.

1шт.

11

K31411

SPRING

- torsion, trigger

1шт.

12

K41370

SPRING

- release, clutch

1шт.

13

K912854

SPRING

- anchor

1шт.

K912855

STOP

- resetting lever

1шт.

K19482

SPRING WASHER

WASHER - spring, 3/8 in.

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC

1шт.

14

K909901

ROD

- clutch, resetting lever to clutch lever

1шт.

K19403

NUT

- 3/8 BSF

2шт.

15

K14745

NUT

- adjusting, 3/8 BSF

1шт.

16

K14233

FORK END - resetting lever

1шт.

17

K89363

LEVER

- clutch, double clutch 880/A

1шт.

17

K900716

LEVER

- clutch, single clutch 880/B

1шт.

17

K909183

LEVER

- clutch, twin-plate clutch 880/B

1шт.

18

K14227

PIN

- clevis, 3/8 x 1 1/16 in.

1шт.

K19527

PIN

- split, 3/32 x 1/2 in.

1шт.

19

K14744

PIN

- 3/4 x 1 1/2 in.

1шт.

20

K14715

BUSHING

- distance piece

1шт.

21

K913860

BRACKET - guide

1шт.

Выбрано товаров: 37
