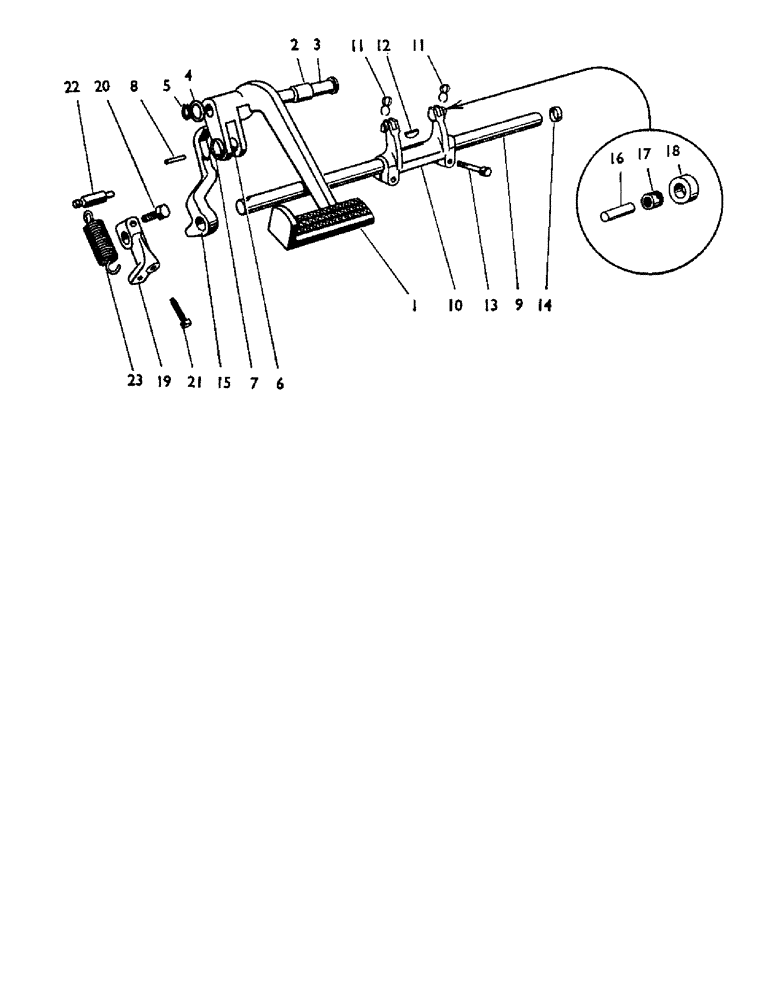

Запчасти Case IH 880A (030) - CLUTCH, FOOT CONTROL (03.1) - CLUTCH

1

K923274

NO LONGER SERVICED

CLUTCH - pedal (replaces 917754)

1шт.

2

K32940

BUSHING

2шт.

3

K905053

PIN

- fulcrum

1шт.

4

K19476

WASHER

- 3/4 in.

1шт.

5

K11290

RING, SNAP

SNAP RING - circlip, 3/4 in., ext.

1шт.

6

K89359

ROLLER

1шт.

7

K914918

PIN

- 880/A

1шт.

K19473

WASHER

- 7/16 in. 880/A

1шт.

K19528

PIN

- split, 3/32 in. 880/A

1шт.

8

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , Mills, 880/A 1/8" x 1/2", Type D

1шт.

K900722

PIN

- 880/B

1шт.

K621560

SNAP RING,#40, Ext

Ring, Snap, , 880/B #40, Ext

1шт.

9

K928230

SHAFT

- cross, 5587522 onward

1шт.

K626716

WASHER

- 7/8 in., special, 5587522 onward

1шт.

K626738

WASHER

- 7/8 in., special, 5587522 onward

1шт.

K34454

RING, SNAP

SNAP RING - circlip, 7/8 in. ext., 5587522 onward

1шт.

9

K905649

SHAFT

- cross, Serial Range: 530001-558751

1шт.

10

K905650

CLUTCH FORK

FORK - clutch

1шт.

11

K89336

SPRING

- clutch fork

2шт.

12

K19607

KEY

- Woodruff No. 506

2шт.

13

K600403

BOLT

- 3/8 UNC x 1 3/8 in.

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

2шт.

14

K89362

SEAL

- dirt excluder

1шт.

15

K906885

LEVER

- clutch 880/A

1шт.

15

K906886

LEVER

- clutch 880/B

1шт.

16

K900349

PIN

- pivot, clutch fork roller

2шт.

17

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

BEARING - needle roller 880/A

2шт.

18

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

- clutch fork 880/A

2шт.

19

K905651

LEVER

- clutch adjuster

1шт.

K902085

ROLLER

- clutch fork 880/B

2шт.

K902086

BUSHING

- clutch roller 880/B

2шт.

20

K600407

BOLT

- 3/8 UNC x 1 7/8 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

1шт.

21

K905652

ADJUSTMENT SCREW,3/8" - 16 x 2"

- adjusting

1шт.

280136

NUT,3/8"-16, G8

1шт.

22

K904406

SPRING

- anchor

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

1шт.

23

K624909

SPRING

1шт.
