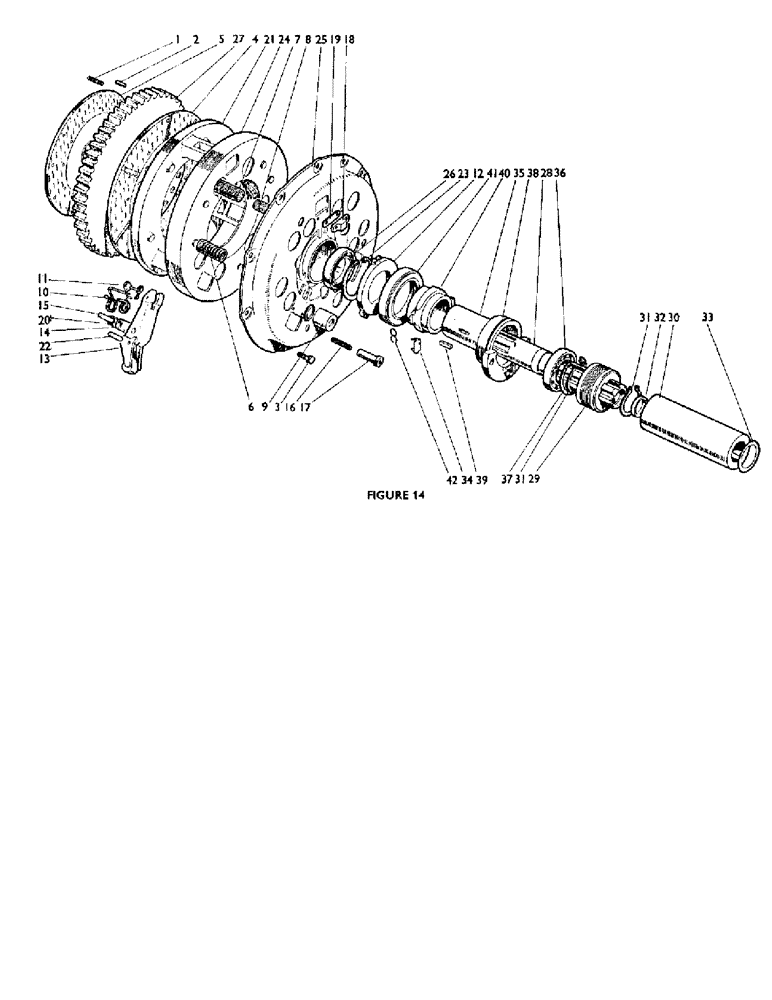

Запчасти Case IH 880A (022) - DOUBLE CLUTCH, BORG AND BECK, 880/A, LIVEDRIVE (03.1) - CLUTCH

1

K13226

SPRING

- flywheel

3шт.

2

K621838

PIN

- dowel, 5/16/7/16 x 1 1/8 in. (replaces 35840)

2шт.

3

K602903

SCREW

- bolt, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

9шт.

4

K923374

CLUTCH DISC

DISC - clutch, driven plate (with facings and, replaces 915358 rivets)--main drive

1шт.

K961829

KIT

- facings (2) and rivets (42)

1шт.

5

K89322

CLUTCH & DISC ASSY

DICS - clutch, driven plate (with facings and rivets)--PTO

1шт.

K900249

NO LONGER SERVICED

FACINGS - (2), rivets (26)

1шт.

K918611

CLUTCH ASSEMBLY

- cover (supersedes 910171)

1шт.

6

K900261

SPRING

- thrust, (buff)--PTO 918611

6шт.

7

K902512

SPRING

- thrust (brown)--main drive, 918611 outer

6шт.

8

K902513

SPRING

- thrust (brown)--main drive, 918611 inner

6шт.

9

K900256

SPRING

- cup 918611

12шт.

10

K961128

SPRING

- anti-rattle 918611

3шт.

11

K900267

RETAINER

- release lever plate 918611

3шт.

12

K900268

PLATE

- release lever 918611

1шт.

13

K900275

LEVER

- release 918611

3шт.

K900278

PIN

- split 918611

3шт.

14

K900264

ROLLER

- 918611

3шт.

15

K900265

PIN

- large, roller 918611

3шт.

K900274

RING, SNAP

SNAP RING - circlip 918611

6шт.

K918607

SCREW

- adjusting, 5/16 UNF, alternatives, 918611

3шт.

K918608

NUT

LOCKNUT - 5/16 UNF, special, alternatives, 918611

3шт.

16

K900269

SCREW

-adjusting, 1/4 UNF, alternatives, 918611

3шт.

17

K900270

LOCK NUT

LOCKNUT - 1/4 UNF, alternatives, 918611

3шт.

18

K900257

PAD

- adjusting, release lever, 918611

3шт.

K900272

SCREW

SETSCREW - 918611

6шт.

K900279

WASHER

- shakeproof, adjusting pad, 918611

6шт.

20

K900273

NEEDLE

- roller--release lever, 918611

60шт.

21

K900253

PLATE

- pressure, 918611

1шт.

22

K900266

PIN

- 918611

3шт.

23

K89326

RING, SNAP

SNAP RING - circlip, 3 1/8 in. int. dia.--ball bearing, 918611

1шт.

24

K918613

COVER

- inner (supersedes 900252), 918611

1шт.

25

K918612

COVER

- outer (supersedes 900254), 918611

1шт.

26

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball, 918611

1шт.

K900271

SPARE PART

PIN - split, pressure plate pin, 918611

6шт.

K900280

WASHER

- release lever, 918611

6шт.

27

K906200

DISC

- separator plate

1шт.

28

K919015

CLUTCH

- driveshaft--6-speed 533604 onward

1шт.

28

K914942

CLUTCH ASSEMBLY

- driveshaft--6-speed, Serial Range: 530001-533603

1шт.

28

K917750

CLUTCH ASSEMBLY

- driveshaft--12-speed 533604 onward

1шт.

28

K915054

SPARE PART

CLUTCH - driveshaft--12-speed, Serial Range: 530001-533603

1шт.

29

K917780

CASTING

- drum--clutch stop 533604 onward

1шт.

29

K915582

NO LONGER SERVICED

DRUM - clutch stop, Serial Range: 530001-533603

1шт.

K89429

GASKET

OIL RESERVOIR - flinger

1шт.

30

K914080

SPLINED COUPLING

COUPLING - splined, muff 6-speed

1шт.

31

K12922

RING, SNAP

SNAP RING - circlip, 1 3/4 in., ext.

4шт.

32

K89333

WASHER

- felt

1шт.

34

K900359

SPRING

- clip--bearing carrier

2шт.

35

K911906

SUPPORT

- snout--thrust bearing carrier

1шт.

36

K620033

BALL

- bearing

1шт.

37

K621430

CIRCLIP

- 75 mm., int.

1шт.

38

K24865

O-RING

- 3 3/8 in. int. dia.

1шт.

39

K24866

KEY

- 3/16 x 5/32 x 1 1/4 in.

1шт.

40

K911907

CARRIER

- thrust bearing

1шт.

41

K19169

BEARING, THRUST

BEARING - thrust

1шт.

42

K89336

SPRING

- clutch fork

2шт.
